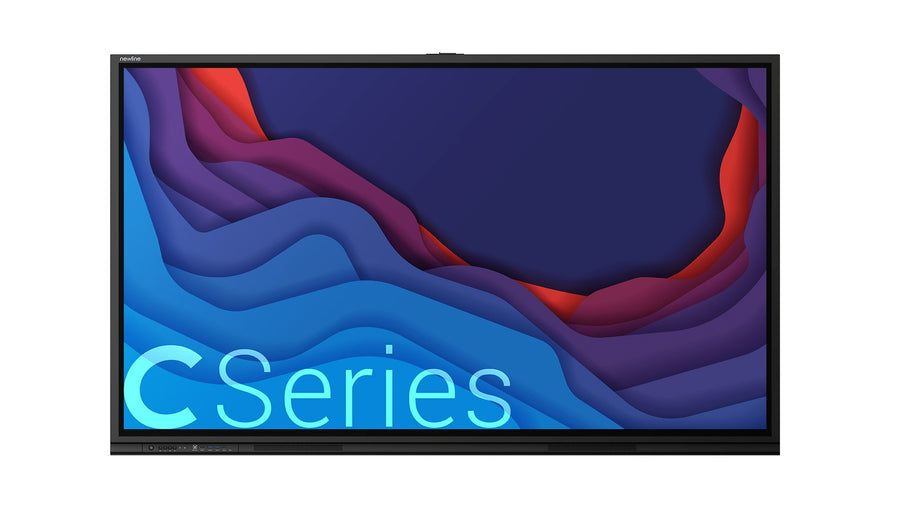

Newline C Series 86-inch 4K Interactive Flat Panel – TT-8623C
The Newline C Series 86-inch (TT-8623C) is a 4K UHD interactive flat panel for classrooms, boardrooms and training rooms. It offers 3840 x 2160 resolution, 450 cd/m² brightness and 40-point touch on Windows. Procure.ae supplies the C Series 86-inch in the UAE, with delivery and installation.
The panel uses a direct LED backlight, anti-glare glass with certified zero bonding and a 4000:1 contrast ratio at 450 cd/m² brightness. Stellar Touch Technology supports 40 touch points on Windows and 20 on Android, Mac and Linux, with ±1 mm accuracy and two styluses. A 5 ms response time and 178° viewing angle suit handwriting and group viewing. Two 15 W front-facing speakers and a front microphone input are built in, and the display life is rated at 50,000 hours or more.
The C Series fits classrooms, boardrooms and training rooms that need one large display with pen and touch input. Connections include three HDMI In ports, USB-C with plug-and-play video, audio, power and touch through one cable, two USB Type-B touch ports, an RJ45 LAN port, RS232 for room control and an OPS slot for an embedded OPS PC. Newline also lists this series in 65-inch and 75-inch sizes, and offers an EDLA bundle with an OPS PC running Android 15.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
450 nits
Touch Technology
Stellar Touch Technology
- 4K UHD display
- Stellar touch
- Pen and finger input
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD display
3840 x 2160 resolution across an 86-inch display area of 1896 x 1066 mm.
02
Stellar touch
40 touch points on Windows and 20 on Android, Mac and Linux.
03
Pen and finger input
two passive styluses, plus finger and fist writing, with ±1 mm accuracy.
04
Built-in speakers
two 15 W front-facing speakers with a front microphone input.
05
Plug and play USB-C
one USB-C cable carries audio, video, power, data and touch.
06
Bright, wide-angle panel
450 cd/m² brightness, 4,000:1 contrast and 178° viewing angle.
07
Zero-bonding glass
anti-glare glass with certified zero bonding and 7 Mohs surface hardness.
08
Room control and OPS
RS232, RJ45 LAN and an OPS slot for an embedded OPS PC.
Specifications
29 specificationsGeneral
Key Features4K UHD, Stellar touch, 40 Windows touch points, plug-and-play USB-C, zero-bonding glass, OPS slot, RS232 and RJ45 control
Model86" C Series
TypeInteractive Flat Panel
Display
BacklightDirect LED
Brightness450 nits
Color Depth1.07 billion colours
Contrast Ratio4,000:1
Resolution3840 x 2160 (4K UHD)
Response Time5 ms
Screen Size86 inch
Touch Accuracy±1 mm
Touch Points40 (Windows) / 20 (Android, Mac, Linux)
Touch TechnologyStellar Touch Technology
Viewing Angle178°
Performance
Operating SystemNo OS (OPS PC optional)
ProcessorArm Cortex-A55 x 4
RAM2 GB
Storage8 GB
Audio
Speaker ConfigurationFront-facing, 2 speakers
Speaker Output15 W x 2
Connectivity
OPS Slot1 OPS slot
PortsHDMI In × 3, USB Type-A × 5, USB Type-B touch × 2, USB Type-C × 2, RJ45 LAN × 1, RS232 × 1, OPS slot × 1
USB-C Ports2 (1 front, 1 rear camera slot)
Power
Power Consumption146 W (standard mode)
Standby Power<0.5 W
Physical
Dimensions1981 x 1186 x 111 mm
Surface ProtectionAnti-glare glass, 7 Mohs, 9H pencil hardness
VESA Mount800 x 400 mm
Weight74 kg
Downloads
Manufacturer documents for the Newline C Series 86-inch 4K Interactive Flat Panel – TT-8623C — datasheets, manuals, drawings and certificates.
- Datasheet – C Series – C23 Specsheet Newline EN Web
- Datasheet – C Series – CSeries(C23) EDLA Set Specsheet Newline EN Web
- Datasheet – C Series – CSeriesC23 EDLA Set Specsheet Newline EN
- Brochure – C Series
- User manual – C Series – 720310106A-说明书 C23 9666 newline 英文
- User manual – C Series – C23 UserManualExtended Newline EN
- User manual – C Series – C23 UserManual Newline EN
Questions
Can’t find your answer? Ask on WhatsApp
Is the Newline C Series 86-inch a 4K display?
Yes. The TT-8623C has a 3840 x 2160 (4K UHD) resolution in a 16:9 format, with an 86-inch display area of 1896 x 1066 mm. The panel also shows 1.07 billion colours at 450 cd/m² brightness, with a 4,000:1 contrast ratio.
Can the C Series 86-inch be wall-mounted?
Yes. The 86-inch model uses an 800 x 400 mm VESA mount pattern and weighs 74 kg net, so the bracket and wall must be rated for that load. Procure.ae can advise on mounting and arrange installation across the UAE.
How many touch points does the panel support?
The panel supports 40 touch points on Windows and 20 touch points on Android, Mac and Linux. Writing works with the passive pen, a finger or a fist, and the manufacturer lists two styluses with ±1 mm touch accuracy.
Does the panel have its own operating system?
No. The panel is listed with no operating system, 2 GB RAM and 8 GB storage. The OPS slot takes an embedded OPS PC, and Newline also offers an EDLA bundle with an OPS PC running Android 15, 16 GB RAM and 256 GB storage.
Can a laptop connect with one cable?
Yes. The front USB Type-C port carries audio, video, power, data and touch through a single cable, so a compatible laptop needs only one cable to connect to the display.
