OVERVIEW

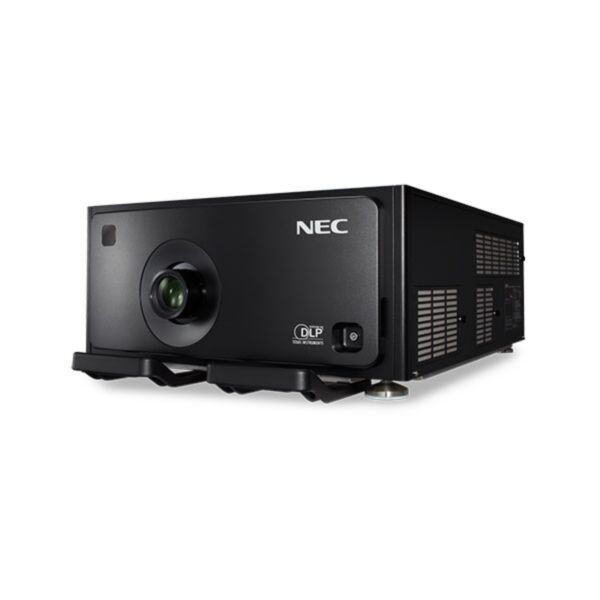

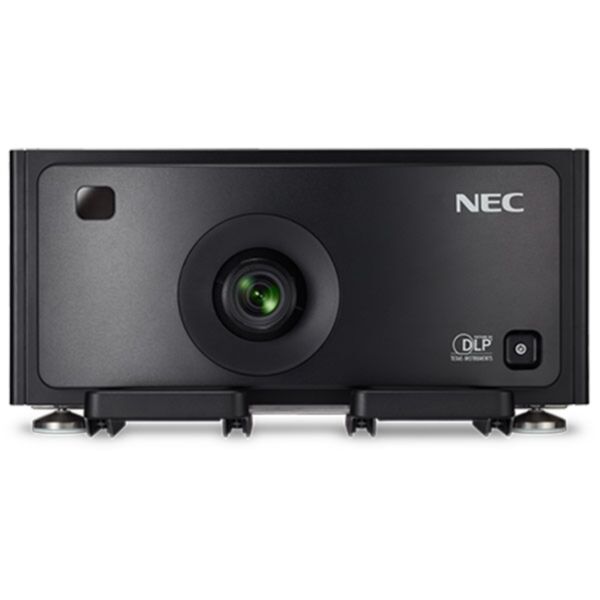

Think about projection technology in a whole new light! The NEC PH1202HL1 is a powerful installation laser projector with a laser/phosphor light source that makes it perfect for all-new applications. With more consistent brightness, improved color fidelity, and tilt-free or portrait modes these projectors will deliver in new verticals such as retail, simulation, and theme park installations. Furthermore, the laser module delivers 20,000 hours of virtually maintenance-free operations, reducing your total cost of ownership!
SPECIFICATIONS
| Display Technology |
DLP (0.65" DMD) |
|
| Light Output(Lumens) |
12,000 normal |
|
Resolution
|
|
| Native |
1080p 1920 x 1080 |
|
| Maximum |
WQXGA 4096 x 2160 |
|
|
| |
|
| Contrast Ratio (up to) |
10,000:1 with Dynamic Contrast |
|
| Lamp Type |
Laser/Phosphor |
|
| Lamp Life (up to) |
20,000 hours |
|
| Screen Size (diagonal) |
100 to 500 in. / 1.02 to 12.7m |
|
| Throw Ratio |
1.5 to 3.02 |
|
| Projection Distance |
4.6 to 245.1 ft. / 1.4 to 74.7m |
|
| Projector Angle |
5.8 to 14.4° tele / 10.9 to 18.4° wide |
|
Lens
|
|
| Zoom |
1 to 2.01 |
|
| Focus |
Power |
|
| F number, fnumber |
F=1.7 to 2.37, f=24.4 to 48.6mm |
|
| Shift |
Mechanical +0.05 to -0.5 vertical, +/-0.11 horizontal |
|
| |
|
| Keystone Correction |
/- 40° horizontal, +/- 40° vertical |
|
Synchronization Range
|
|
| Horizontal (Analog/Digital) |
15-153 kHz |
|
| Vertical (Analog/Digital) |
48-120 Hz |
|
|
|
| Supported Video Standards |
NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM |
|
| SD/HD Video Signal Compatibility |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
|
| PC Signal Compatibility |
VGA, SVGA, XGA, SXGA, SXGA+, WXGA, UXGA, FHD, WUXGA, 2K, QXGA, WQXGA, 4k |
|
| Macintosh Compatibility |
Yes |
|

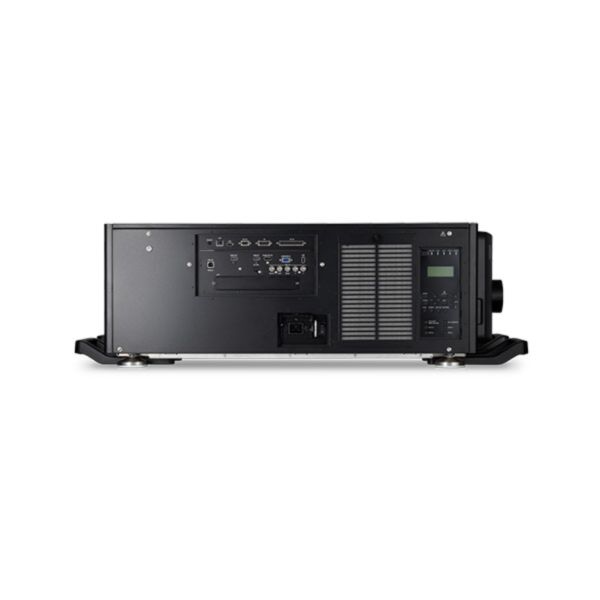

| Input/Output Terminals |
|
| RGB1(analog) |
VGA 15-pin D-sub |
|
| RGB2(analog) |
5-BNC |
|
| RGB3(digital) |
HDMI w/HDCP |
|
| RGB4(digital) |
DisplayPort w/HDCP |
|
| RGB5(digital) |
HDBaseT |
|
| Monitor out |
HDMI |
|
|
|
| External Control |
RS-232, IR, HDBaseT, Wired LAN, DDC/CI, USB |
|
| Sync Compatiblity |
Separate Sync / Composite Sync / Sync on G |
|
| Networking |
HDBaseT, RJ-45 |
|
| |
| Power Requirements |
200-240V AC, 50/60 Hz |
|
| Input Current |
9.2A |
|
| Power Consumption (Normal/ECO Mode/Standby/Standby Power Saving) |
1392W / 1110W / 5.7W / 1.83W |
|
|
| |
| |
| Optional Lenses |
NP-9LS08ZM1, NP-9LS12ZM1, NP-9LS13ZM1, NP-9LS16ZM1, NP-9LS20ZM1, NP-9LS40ZM1 |
|
| Installation Orientation |
Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear |
|
| Dimensions (WxDxH) |
26.8 x 33.9 x 13.1 in. / 680 x 860 x 333mm |
|
| Net Weight |
149.9 lbs. / 68.0 kg |
|
| Fan Noise |
48 dB |
|
| Regulations |
"USA: UL60950-1 (2) / UL, FCC Part15 Class A / FCC DoC, Canada CSA C22.2 60950-1-07 (2) / C-UL, ICES-003 Class A / DoC of Canada" |
|
| |
| Operating Temperature |
41-104°F / 5-40°C |
|
| Humidity |
20-80% non-condensing |
|
| Storage |
-14-122°F / -10-50°C |
|
|
| |
| |
| 5 year or 20,000 hour parts & labor warranty. First year InstaCare Service. |
- Automatic keystone correction
- Cornerstone
- Geometric Correction
- Auto power on
- ECO Mode technology
- Closed captioning
- Virtual Remote
- Sleep timer
- Quick power-off
- Built-in wall color correction
- Advanced AccuBlend
- AutoSense
|
| |
- Remote control
- Batteries
- User manual
- Quick Start Guide
- Product registration card
|
