OVERVIEW
The 11,000-lumen NEC PH1000U professional installation projector offers a unique 3-chip DLP system that creates quality, larger-than-life images under virtually any operating condition to take on the most demanding integration projects. Perfect for large venues or high ambient lighting conditions, it supports multiple input cards and includes Open Pluggable Specification (OPS), the first industry-wide standardization in option slots to simplify installation, use and maintenance while offering input flexibility. Its Integrated Device Technology HQV™ is a high-performance video processing/scaling system designed for computer signals, standard or high-definition video. The PH1000U is ideal for higher education, house of worship, corporate and retail environments.
SPECIFICATIONS
| Display Technology |
DLP (0.96" DMD) |
|
| Light Output(Lumens) |
11000 normal / Eco = approx. 80% of normal mode |
|
Resolution
|
|
| Native |
WUXGA 1920 x 1200 |
|
| Maximum |
WUXGA 1920 x 1200 |
|
|
| |
|
| Contrast Ratio (up to) |
2000:1 |
|
| Lamp Type |
400W AC / 320W eco |
|
| Lamp Life (up to) |
2000 hours normal / 2500 hours eco |
|
| Screen Size (diagonal) |
80 to 500 in. / 2 to 12.7m |
|
| Throw Ratio |
Variable |
|
| Projection Distance |
1.8 to 243 ft. / 0.55 to 74m |
|
| Projector Angle |
2.7 to 11.2° tele / 4.4 to 15.4° wide |
|
Lens
|
|
| Zoom |
Power |
|
| Focus |
Power |
|
| F number, fnumber |
Variable |
|
| Shift |
Power: +50/-40% vertical, +/-20% horizontal |
|
|
| |
|
| Keystone Correction |
+/- 35° horizontal, +/- 30° vertical |
|
|
| |
Synchronization Range
|
|
| Horizontal (Analog/Digital) |
15-108 kHz |
|
| Vertical (Analog/Digital) |
48-120 Hz |
|
|
| |
|
| Supported Video Standards |
NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM |
|
| SD/HD Video Signal Compatibility |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
|
| PC Signal Compatibility |
VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA |
|
| Macintosh Compatibility |
Yes |
|

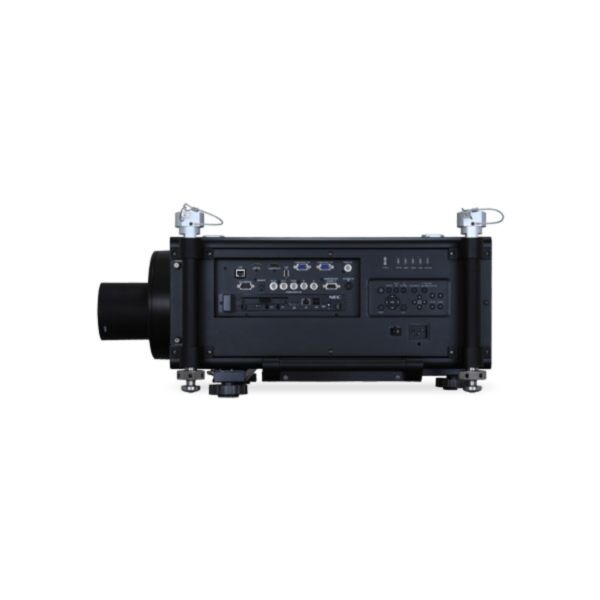

Input/Output Terminals
|
|
| RGB1(analog) |
VGA 15-pin D-sub |
|
| RGB2(analog) |
VGA 15-pin D-sub |
|
| RGB3(analog) |
5-BNC |
|
| RGB4(digital) |
HDMI w/ HDCP |
|
| RGB5(digital) |
DisplayPort |
|
| Video 1 |
RCA |
|
| Video 2 |
S-Video |
|
| Monitor out |
VGA 15-pin D-sub |
|
|
| |
|
| External Control |
RS-232, IR, Wired LAN, DDC/CI, USB, Wireless LAN (optional) |
|
| Sync Compatiblity |
Separate Sync / Composite Sync / Sync on G |
|
| Networking |
RJ-45 Monitoring |
|
|
| |
| |
| Power Requirements |
100-240V AC, 50/60 Hz |
|
| Input Current |
10.8A |
|
| Power Consumption (Normal/ECO Mode/Standby/Standby Power Saving) |
1006W / 810W / 33W / 0.2W |
|
|
| |
| |
| Optional Lenses |
NP25FL, NP26ZL, NP27ZL, NP28ZL, NP29ZL |
|
| Installation Orientation |
Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear |
|
| Dimensions (WxDxH) |
22.7 x 9.3 x 22 in. / 578 x 235 x 558mm |
|
| Net Weight |
87.1 lbs. / 39.5 kg |
|
| Fan Noise |
45 dB normal / 39 dB eco |
|
| Regulations |
USA UL 60950-1, FCC A, Canada C-UL 60950-1 |
|
|
| |
| |
| Operating Temperature |
41-104°F / 5-40°C |
|
| Humidity |
20-80% non-condensing |
|
| Storage |
-14-122°F / -10-50°C |
|
|
| |
| |
| 3 years. First year Instacare Service. Lamp warranty is 1 year or 500 hours, whichever comes first. |
| |
| |
| |
- Automatic keystone correction
- Auto power on
- ECO Mode technology
- Closed captioning
- Variable audio out
- Carbon savings meter
- Virtual Remote
- Sleep timer
- Quick power-off
- Built-in wall color correction
- Advanced AccuBlend
- AutoSense
- Kensington lock slot
- Image magnification
- Discreet source keys
|
| |
| |
- Remote control
- Batteries
- Dust cap for lens
- User manual
- Quick Start Guide
- Product registration card
- Wired and wireless network setup guide
|
