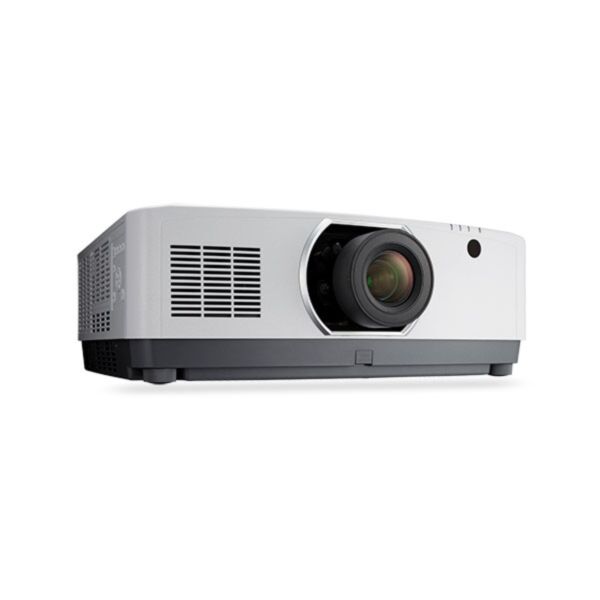

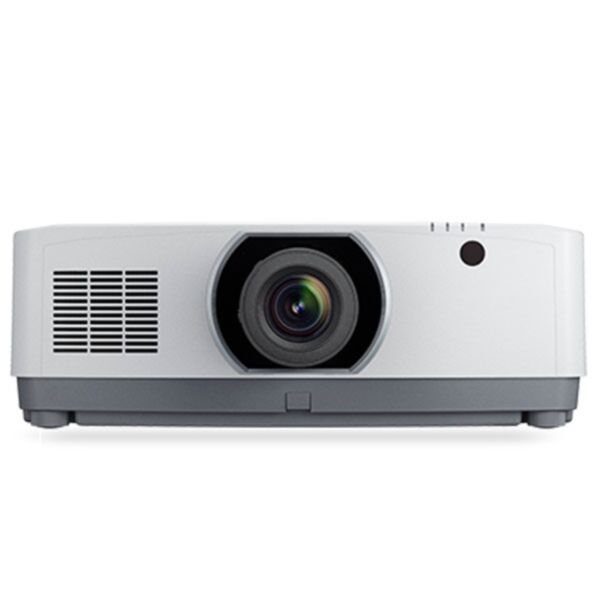

NEC-PA803UL 8000-Lumens 4k Resolution Projector

  • SKU: NP-PA803UL

Actual Stock Can Be Confirmed After Placing the Order.

NEC's PA803UL is a 8000-lumen LCD laser projector with advanced professional installation features for higher education and corporate users. The newly developed sealed optical engine creates a filter/maintenance free projector. With its multitude of digital inputs, connection to any computer or high definition device... See More

Whatsapp Us
TELEPHONE (+971) 454 65041
WHATSAPP (+971) 454 65041
FREE SHIPPING All orders over AED1999/-

NEC's PA803UL is a 8000-lumen LCD laser projector with advanced professional installation features for higher education and corporate users. The newly developed sealed optical engine creates a filter/maintenance free projector. With its multitude of digital inputs, connection to any computer or high definition device is possible. Enjoy design and installation flexibility with a complete line of optional powered lenses (lens shift, focus and zoom), tilt-free and portrait installation capabilities along with built-in edge blending and stacking. The HDBaseT input and separate HDBaseT repeater provide single connections for uncompressed full HD digital video, audio, Ethernet power and various control signals.

 Product Specifications

Optical
Display Technology 0.76" LCD w/ MLA
Light Output(Lumens) 8000 normal
Resolution
Native WUXGA 1920 x 1200
Maximum 4K 4096 x 2160

Contrast Ratio (up to) 2,500,000:1 with light adjust
Lamp Life (up to) 20,000 hours
Screen Size (diagonal) 50 to 500 in. / 1.27 to 12.7m, NP40ZL, NP41ZL, NP43ZL
Throw Ratio Variable
Projection Distance 2.5 to 68.5 ft. / 0.74 to 20.9m
Projector Angle 10.3 to 10.8° tele / 13.7 to 14.5° wide
Lens
Zoom Powered
Focus Power
F number, fnumber Variable
Shift Mechanical -0.1 to +0.5 vertical, +/-0.3 horizontal

Keystone Correction +/- 40° horizontal, +/- 40° vertical


Signal Compatibility/Connectivity



Synchronization Range
Horizontal (Analog/Digital) Analog: 15-100kHz, Digital: 15-153kHz
Vertical (Analog/Digital) Analog: 48-120Hz, Digital: 24-120Hz

Supported Video Standards NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
SD/HD Video Signal Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K
PC Signal Compatibility VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA, WQXGA
Macintosh Compatibility Yes

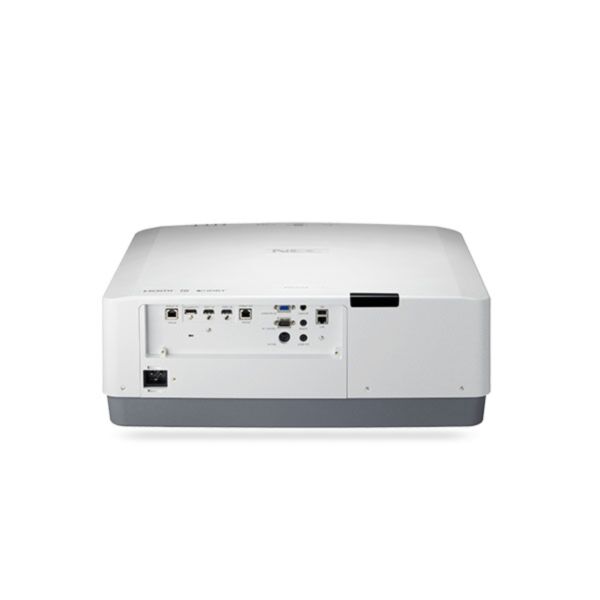

Input/Output Terminals
RGB1(analog) VGA 15-pin D-sub
RGB2(digital) HDMI (V2.0) w/HDCP (V1.4/2.2)
RGB3(digital) HDMI (V2.0) w/HDCP (V1.4/2.2)
RGB4(digital) DisplayPort w/HDCP (V1.4)
RGB5(digital) HDBaseT w/HDCP (V1.4/2.2)
Audio 1 Stereo Mini Jack
Monitor out HDBaseT w/HDCP (V1.4/2.2)
Audio out Stereo Mini Jack

External Control RS-232, IR, DDC/CI, USB
Sync Compatiblity Separate Sync / Composite Sync / Sync on G


Electrical



Power Requirements 100-240V AC, 50/60 Hz
Input Current 11.8A – 5.2A
Power Consumption (Normal/ECO Mode/Standby/Standby Power Saving) 798W / 470W / 0.64W / 0.11


Mechanical



Optional Lenses NP40ZL, NP41ZL, NP43ZL
Installation Orientation Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
Dimensions (WxDxH) 22.8 x 19.4 x 8.2 in. / 580 x 494 x 208mm
Net Weight 40.1 lbs. / 18.2 kg
Fan Noise 39 dB normal / 33 dB eco
Regulations USA UL60950-1: 2nd edition, FCC Part15 Subpart B(ANSI C63.4.2014), CAN/CSA C22.2 No.60950-1-07,2nd Edition,2014, ICES-003 Issue6(ANSI C63.4:2014)


Environmental



Operating Temperature 41-104°F / 5-40°C
Humidity 20-80% non-condensing
Storage -14-122°F / -10-50°C


Limited Warranty



Registered owners receive a 5-year or 20,000 hours parts and labor warranty including InstaCare next business day exchange.


Additional Features



  • 4K Ready
  • Powered Lenses
  • Manual Keystone Correction
  • 3D Stereo
  • Geometric Correction
  • Quick power on
  • ECO Mode Technology
  • DiCom Simulation
  • Edge Blending
  • Stacking
  • Virtual Remote
  • DisplayNote
  • NaViSet Administrator 2
  • Quick power-off
  • Picture-in-Picture
  • Advanced AccuBlend
  • AutoSense


Ships With



  • Remote control
  • Batteries
  • Power cord
  • Cable cover
  • Lens hole cap
  • User manual
  • Quick Start Guide
  • Product registration card
  • Lens anti-theft screw
  • Security Sticker
