OVERVIEW

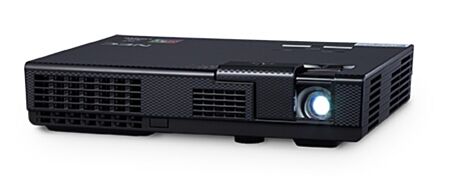

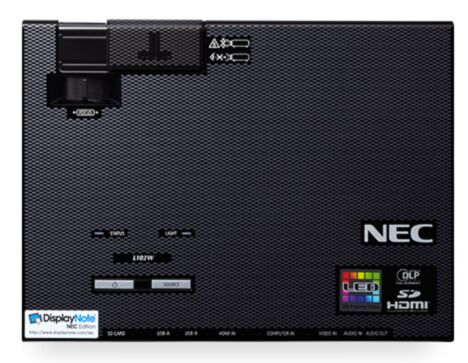

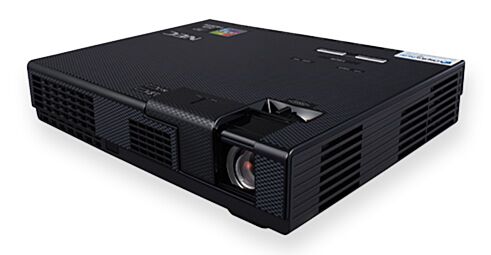

The 1000-lumen NEC L102W is a lightweight mobile projector designed to provide environmentally-conscious, on-the-go users with multimedia functionality. The solid state LED light source provides a mercury-free design, and the intuitive remote control allows for one-touch source changes and complete menu control for projector settings. The L102W has a filter-free design and offers a 1GB internal memory with SD input to expand storage up to 32GB, which lets you leave the laptop at home and easily present from a flash drive. The Office Viewer feature enables users to store common Microsoft Office file formats on the L102W, including Microsoft Word, Excel, PowerPoint, as well as Adobe PDF documents. Built-in technologies include closed captioning and wall color correction.
SPECIFICATIONS
| |
| Display Technology |
DLP (0.45" DMD) |
| |
| Light Output(Lumens) |
1000 normal |
| |
Resolution
|
|
|
| Native |
WXGA 1280 x 800 |
| |
| Maximum |
UXGA 1600 x 1200 |
| |
|
| |
|
| Contrast Ratio (up to) |
10,000:1 |
| |
| Lamp Life (up to) |
20,000 hours |
| |
| Screen Size (diagonal) |
17 to 100 in. / 0.4 to 2.5m |
| |
| Throw Ratio |
1.4 |
| |
| Projection Distance |
1.7 to 9.8 ft. / 0.5 to 3m |
| |
| Projector Angle |
13.8° |
| |
Lens
|
|
|
|
| Keystone Correction |
Automatic +/- 40° |
| |
|
| |
Synchronization Range
|
|
|
| Horizontal (Analog/Digital) |
15-100 kHz |
| |
| Vertical (Analog/Digital) |
50-85 Hz |
| |
|
| |
|
| Supported Video Standards |
NTSC, NTSC4.43, PAL-M, N, B, D, G, H, I, SECAM |
| |
| SD/HD Video Signal Compatibility |
480i, 576i, 480p, 576p, 720p, 1080i |
| |
| PC Signal Compatibility |
VGA, SVGA, XGA, WXGA, WXGA+, SXGA, SXGA+, UXGA |
| |
| Macintosh Compatibility |
Yes |
| |

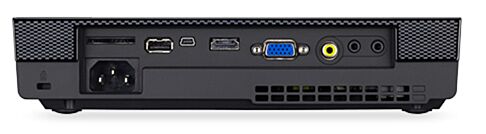

Input/Output Terminals
|
|
|
| RGB1(analog) |
VGA 15-pin D-sub, Component video using ADP-CV 1E |
| |
| RGB3(digital) |
HDMI w/ HDCP |
| |
| Video 1 |
RCA |
| |
| Audio 1 |
1/8 in. stereo |
| |
|
| |
|
| Audio |
2W speaker |
| |
| External Control |
IR |
| |
| Sync Compatiblity |
Separate Sync / Composite Sync / Sync on G |
| |
|
| |
| |
| Power Requirements |
100-240V AC, 50/60 Hz |
| |
| Input Current |
1.2A |
| |
| Power Consumption (Normal/ECO Mode/Standby/Standby Power Saving) |
110W / 72W / NA/ 0.5W |
| |
|
| |
| |
| Installation Orientation |
Table/Front, Table/Rear |
| |
| Dimensions (WxDxH) |
9.4 x 1.7 x 7.0 in. / 238 x 44 x 177mm |
| |
| Net Weight |
3.1 lbs. / 1.4 kg |
| |
| Regulations |
USA UL60950-1 FCC Class B, Canada CSA 60950-1, NOM |
| |
|
| |
| |
| Operating Temperature |
41-95°F / 5-35°C |
| |
| Humidity |
20-80% non-condensing |
| |
| Storage |
-4-140°F / -20-60°C |
| |
|
| |
| Registered owners receive a 2-year parts and labor warranty including InstaCare next business day exchange. |
| |
- LED Light Source
- Mercury-free
- Office Viewer
- Automatic keystone correction
- Auto power on
- ECO Mode technology
- Closed captioning
- Quick power-off
- Built-in wall color correction
- Advanced AccuBlend
- AutoSense
- Kensington lock slot
|
| |
- Remote control
- Batteries
- Power cord
- RGB signal cable
- USB Cable
- User manual
- Quick Start Guide
- Product registration card
- Carrying case
|
