NECInteractive Flat PanelsSKU V652-TM

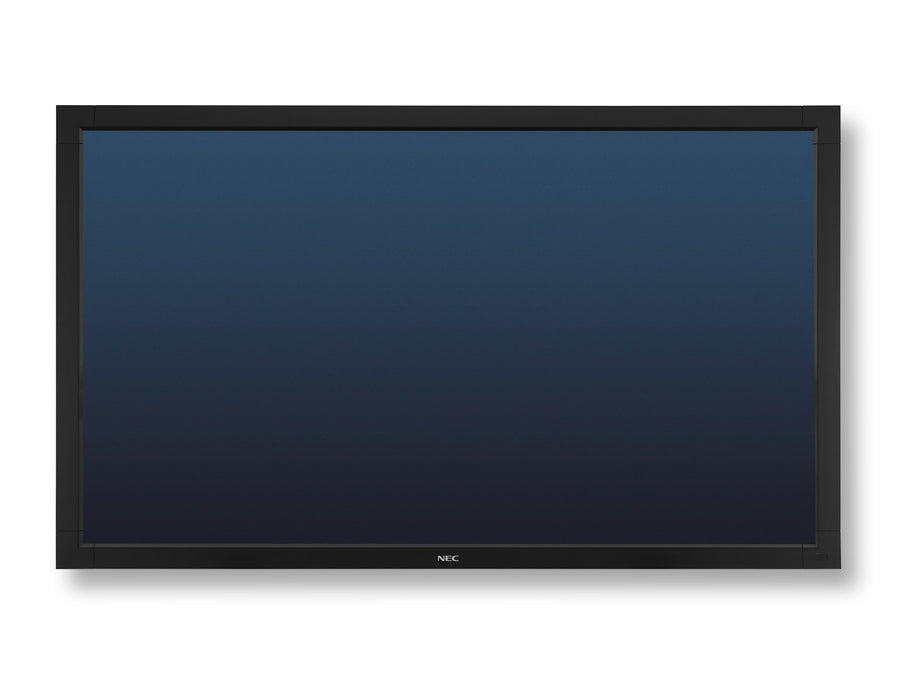

NEC MultiSync V Series 65-inch Optical Touch Interactive Flat Panel – V652-TM
The NEC V652-TM is a 65-inch interactive flat panel with optical camera touch, 5-point multi-touch and a 1920 x 1080 Full HD display. It suits retail signage, conference rooms and education spaces, and its OPS slot takes a slot-in PC. Procure.ae supplies the NEC V652-TM in the UAE, with quotes, delivery and installation.
The V652-TM uses an AMVA3 panel with edge LED backlights, a 1920 x 1080 native resolution and a typical contrast ratio of 4,000:1. Its optical camera touch system uses four cameras to support up to five simultaneous touch points for finger, glove and stylus input. Its 5 mm double-sided anti-reflection glass reduces reflections and improves the readability of content on screen. Brightness is 450 nits, or 173 nits in the Eco shipment setting.
The V652-TM is aimed at retail signage, conference rooms and education applications. Its OPS option slot takes a slot-in PC, which removes the external PC and its USB cable. Inputs include DisplayPort, DVI-D, HDMI 1.3 and analogue video, and the panel is controlled over LAN 100 Mbit with SNMP, RS232 or infrared remote control. It mounts on a 400 x 400 mm VESA pattern.
Screen Size
65 inch
Resolution
1920 x 1080 (Full HD)
Brightness
450 nits (173 nits in Eco shipment ...
Touch Technology
Optical camera (4 cameras)
- Five-point optical touch
- Full HD display
- Anti-reflective glass
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Five-point optical touch
Four-camera optical touch system with up to 5 simultaneous touch points and gesture control on Windows 7 and 8.
02
Full HD display
1920 x 1080 native resolution at 60 Hz, with 450 nits brightness.
03
Anti-reflective glass
5 mm fully tempered glass with double-sided anti-reflection coating.
04
OPS slot expansion
Open pluggable specification slot for a slot-in PC, so no external PC cables are needed.
05
Integrated speakers
10 W + 10 W speakers, with optional 15 W + 15 W speakers.
06
Remote control options
LAN with SNMP, infrared remote control and RS-232C input and output.
07
Energy and operation
Eco shipment setting of 178 W, standby below 0.5 W, rated for 16/7 operation.
08
3-year warranty
Warranty of 3 years including the backlight.
Specifications
36 specificationsGeneral
ControlsLAN with SNMP, infrared remote control, RS-232C
Key FeaturesOptical 5-point touch, anti-reflective glass, OPS slot, 10 W + 10 W speakers, SNMP and RS-232C control, 16/7 operation
ModelV652-TM
TypeInteractive Flat Panel
What's in the BoxCD-ROM with manuals and LAN control software, display, DVI-D cable, power cable, remote control, USB cable
Display
Aspect Ratio16:9
BacklightEdge LED
Bezel Size50.5 mm top/bottom; 53.5 mm left/right
Brightness450 nits (173 nits in Eco shipment setting)
Contrast Ratio4,000:1 (typical)
Panel TechnologyAMVA3
Refresh Rate60 Hz
Resolution1920 x 1080 (Full HD)
Response Time8 ms (grey-to-grey)
Screen Size65 inch
Touch Points5-point multi-touch
Touch TechnologyOptical camera (4 cameras)
Viewing Angle89° horizontal / 89° vertical
Performance
Operating SystemWindows 7 and 8 (5 touch points); Windows XP, Mac OS, Linux (1 touch point)
Storage Conditions-20 to 60 °C; 10% to 90% RH
Audio
AudioIntegrated 10 W + 10 W speakers; optional 15 W + 15 W
Connectivity
InputsDisplayPort × 1, DVI-D × 1, HDMI 1.3 × 1, D-sub 15-pin × 1, composite and component (BNC), 3.5 mm audio
OPS SlotOpen pluggable specification (NEC / Intel OPS)
OutputsDVI-D (with HDCP) × 1, RS232 × 1, 3.5 mm audio
Power
Power Consumption178 W (Eco shipment setting)
Standby PowerLess than 0.5 W (ECO standby)
Physical
ColorBlack front bezel, black back cabinet
Dimensions1540.4 x 909.2 x 102 mm (without stand)
Duty Cycle16/7
Operating Humidity20% to 80% RH
Operating Temperature0 to 35 °C
Surface Protection5 mm fully tempered glass, double-sided anti-reflection
VESA Mount400 x 400 mm
Weight68.3 kg (without stand)
Compliance
IP RatingIP40 (front); IP20 (back)
Warranty3 years (including backlight)
Downloads
Manufacturer documents for the NEC MultiSync V Series 65-inch Optical Touch Interactive Flat Panel – V652-TM — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What are the size and resolution of the NEC V652-TM?
The NEC V652-TM is a 65-inch display with a native resolution of 1920 x 1080 at 60 Hz and a 16:9 aspect ratio. It supports resolutions from 640 x 480 up to 1920 x 1080. Brightness is 450 nits, or 173 nits in the Eco shipment setting.
Does the NEC V652-TM support multi-touch?
Yes. It has an optical camera touch system with four cameras and supports up to five simultaneous touch points. Five-point touch with gesture control works on Windows 7 and Windows 8, while one touch point works on Windows XP, Mac OS and Linux. Finger, glove and stylus input are supported.
Can the V652-TM run a slot-in PC?
Yes. The OPS option slot takes an open pluggable specification module, so a slot-in PC can sit inside the display. This removes external PC cables, including the USB cable an external PC would need. The slot is listed for Intel Core i5 and i7 slot-in PCs, with WS7P recommended.
Can the NEC V652-TM be wall mounted?
Yes. It has four VESA holes at 400 x 400 mm with M8 fixings. The panel weighs 68.3 kg without its stand, so check that the wall or trolley can take that load. The manufacturer lists a wall mount and trolleys as separate accessories.
Can the V652-TM be managed remotely?
Yes. It supports LAN control with SNMP, RS-232C input and output, and infrared remote control. The manufacturer also lists free LAN control software as a download, so a room system or building management tool can switch and monitor the panel without a separate controller.
