NECInteractive Flat PanelsSKU V651 TM

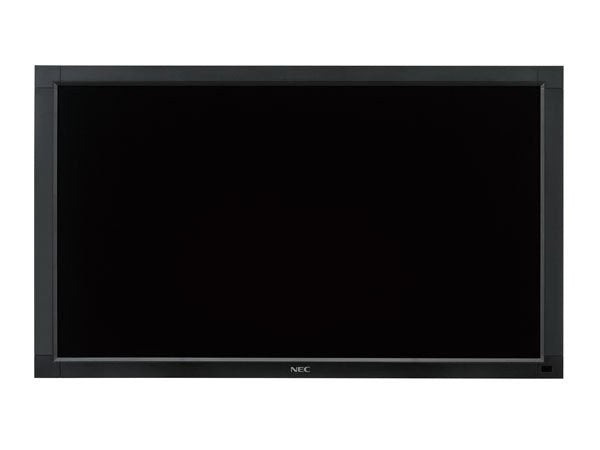

NEC MultiSync V Series 65-inch Multi-Touch Interactive Flat Panel – V651 TM
The NEC MultiSync V651 TM (MultiTouch) is a 65-inch interactive flat panel with a Full HD 1920 x 1080 display and optical camera touch using 4 integrated cameras. It works with a finger, gloves or a stylus and has a Dual Slot for a slot-in PC. Procure.ae supplies the NEC V651 TM in the UAE.
The NEC MultiSync V651 TM is the 65-inch multi-touch model of the NEC V series. Its AMVA3 panel with CCFL backlighting delivers 370 cd/m² as shipped (500 cd/m² maximum), a 5,000:1 contrast ratio and an 8 ms grey-to-grey response at a native 1920 x 1080 and 60 Hz. Four integrated cameras give a touch response of 5 to 8 ms at 120 frames per second, behind 6 mm fully tempered glass with a single-sided anti-reflection coating.
NEC positions the V651 TM for interactive retail signage, interactive public displays and whiteboard use in education and corporate meetings. It has DVI-D, HDMI 1.3, DisplayPort, D-sub 15-pin, S-Video, composite and BNC inputs, with integrated 10 W + 10 W speakers and LAN with SNMP control. The Dual Slot (STv1 + STv2) takes NEC option boards and OPS-compatible computers, and the display mounts on a 400 x 400 mm VESA (FDMI) pattern. This model is discontinued.
Screen Size
65 inch
Resolution
1920 x 1080 (Full HD)
Brightness
370 nits (500 nits max)
Touch Technology
Optical (4-camera)
- Optical camera touch
- Flexible input
- Protective glass
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Optical camera touch
4 integrated cameras give a 5 to 8 ms touch response at 120 frames per second.
02
Flexible input
Finger, gloved hand and stylus can all operate the touch screen.
03
Protective glass
6 mm fully tempered glass with a single-sided anti-reflection coating and 96% light transmission.
04
Dual Slot
STv1 + STv2 option slot, with STv2 compatible with the Intel / NEC OPS standard.
05
Daisy chaining
DVI daisy chain of up to 9 displays, with TileMatrix up to 10 x 10 for video walls.
06
Integrated speakers
10 W + 10 W built-in speakers, with optional 15 W + 15 W external speakers.
07
Display management
LAN with SNMP, RS-232C copy settings and the free NaViSet Administrator 2 download.
08
Heat management
User-controllable fans let installers monitor and control heat inside the display.
Specifications
36 specificationsGeneral
Key Features4-camera optical multi-touch, finger/glove/stylus input, Dual Slot, DVI daisy chain (max. 9), TileMatrix 10 x 10, integrated speakers, DICOM support
ModelV651 TM
TypeInteractive Flat Panel
What's in the BoxDisplay, power cable, VGA cable, remote control, LAN control software (download), CD-ROM (user guides)
Display
Aspect Ratio16:9
BacklightCCFL
Bezel Size53.5 mm (left/right), 50.5 mm (top/bottom)
Brightness370 nits (500 nits max)
Contrast Ratio5,000:1
OrientationLandscape only
Panel TechnologyVA (AMVA3)
Refresh Rate60 Hz
Resolution1920 x 1080 (Full HD)
Response Time8 ms (grey-to-grey)
Screen Size65 inch
Touch Response Time5 to 8 ms (120 frames per second)
Touch TechnologyOptical (4-camera)
Viewing Angle89° horizontal / 89° vertical
Audio
Audio InRCA × 2, 3.5 mm jack × 1
Audio Out3.5 mm jack
Speaker Output10 W + 10 W
Connectivity
EthernetLAN 100 Mbit (SNMP)
InputsHDMI 1.3 × 1, DisplayPort × 1, DVI-D × 1, D-sub 15-pin × 1, S-Video × 1, composite (RCA), BNC (RGBHV / component / composite)
OPS SlotDual Slot (STv1 + STv2; STv2 compatible with Intel / NEC OPS standard)
OutputsDVI-D × 1, composite (RCA) × 1
Serial PortRS-232C (9-pin D-sub), in and out
Power
Power Consumption330 W (shipping setting), 500 W max
Standby Power< 0.5 W (ECO standby)
Physical
Dimensions1540.4 x 909.2 x 118.9 mm (without stand)
Operating Humidity20% to 80% RH
Operating Temperature5 to 40 °C
Surface Protection6 mm fully tempered glass, single-sided anti-reflection (96% light transmission)
VESA Mount400 x 400 mm (FDMI), 4 holes, M8
Weight73.58 kg (without stand)
Compliance
CertificationsCE, TÜV GS, C-tick, Energy Star 5.1, FCC Class B, UL/C-UL or CSA, PSB, VCCI, RoHS
Warranty3 years (including backlight)
Downloads
Manufacturer documents for the NEC MultiSync V Series 65-inch Multi-Touch Interactive Flat Panel – V651 TM — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
How does touch work on the NEC MultiSync V651 TM?
It uses optical camera technology with 4 integrated cameras, giving a 5 to 8 millisecond response at 120 frames per second. You can touch with a finger, a gloved hand or a stylus. The manufacturer lists multi-touch support for Windows 7, with Mac and Linux drivers.
What brightness and resolution does the V651 TM have?
The 65-inch AMVA3 panel has a native resolution of 1920 x 1080 at 60 Hz. Brightness is 370 cd/m² as shipped with 500 cd/m² as the maximum, and the contrast ratio is 5,000:1. The panel uses CCFL backlighting and landscape orientation only.
Can I add a PC to the NEC V651 TM?
Yes. The Dual Slot supports NEC option boards (STv1) and the Intel / NEC OPS standard (STv2). NEC lists a slot-in PC (Core i5/i7 with Windows 7 Professional recommended), a CAT 5 receiver, an HD-SDI board and a media player as options.
Can several V651 TM displays be linked together?
Yes. NEC lists DVI daisy chaining for up to 9 displays and a TileMatrix function up to 10 x 10, so the signal can be passed on for video walls or back-to-back installations. RS-232C copy settings reduce installation effort for larger roll-outs.
What are the VESA pattern and weight of the V651 TM?
The VESA pattern is 400 x 400 mm (FDMI) with 4 holes and M8 screws. Without the stand the display measures 1540.4 x 909.2 x 118.9 mm and weighs 73.58 kg, so mounting hardware must be rated for this weight.
Can I buy the NEC V651 TM in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
