NEC MultiSync M Series 75-inch Interactive Flat Panel – M751 IGB

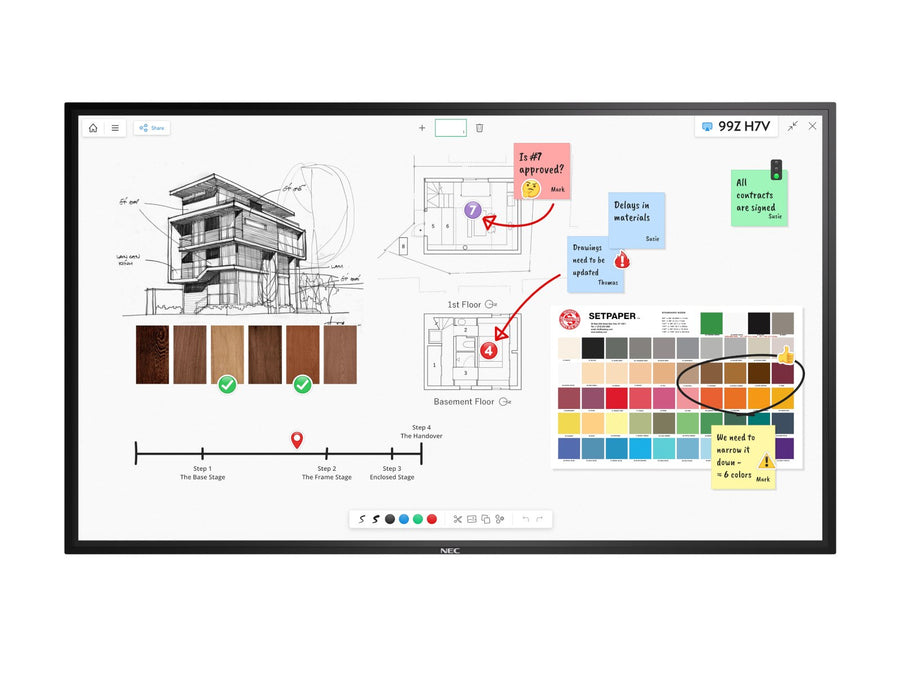

The NEC MultiSync M751 IGB is a 75-inch 4K UHD interactive flat panel for meeting rooms, training spaces and display walls. It uses an ADS panel rated at 500 cd/m², with InGlass touch that supports 20-point multi-touch and Windows Ink. Procure.ae supplies the M751 IGB in the UAE.
The M751 IGB has a 75-inch ADS panel with 3840 x 2160 native resolution, 500 cd/m² brightness, 72% DCI colour gamut and 8 ms typical response time. Its viewing angle is 178° horizontal and vertical, and colour depth is 10-bit. InGlass touch supports real multi-touch up to 20 touches, with finger, glove and stylus input at 2 mm or larger. Two passive styluses are included, and the display offers factory and sensor calibration.
The M751 IGB suits meeting rooms, training spaces and display walls where content must match across screens. It offers dual-split and quad-split picture-in-picture, two DisplayPort and two HDMI inputs, and loop-through outputs for a slot-in PC. The display accepts Intel Smart Display Modules, supports Crestron Connected, AMX NetLinx, PJLink and HDMI CEC control, and is tested compatible with Barco ClickShare.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Touch Technology
InGlass
- InGlass touch
- 4K UHD ADS panel
- 72% DCI colour gamut
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
InGlass touch
Real multi-touch up to 20 touches with less than 1 mm accuracy.
02
4K UHD ADS panel
3840 x 2160 resolution, 500 cd/m² brightness and 178° viewing angles.
03
72% DCI colour gamut
Wide colour coverage for presentation and signage content.
04
Calibration options
Factory calibration, USB sensor calibration and Display Wall Calibrator software.
05
Intel SDM slot
Accepts Intel Smart Display Modules, Large and Small, up to 66 W.
06
Picture-in-picture modes
Dual-split, quad-split and scalable picture size layouts.
07
External control
Crestron Connected, AMX NetLinx, PJLink, HDMI CEC and SNMP support.
08
Warranty cover
3 years including backlight, with optional fourth and fifth year extension.
Specifications
35 specificationsGeneral
Key FeaturesInGlass 20-point touch, 4K UHD ADS panel, 72% DCI colour gamut, Dual-split and quad-split PiP/PbP, Intel SDM slot, Factory and sensor calibration, Crestron Connected certified
ModelM751 IGB
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
Bezel Size21.9 mm (all sides)
Brightness500 nits
Color Depth10-bit (1.073 billion colours)
Color Gamut72% DCI
Contrast Ratio≥ 8,000:1
Panel TechnologyADS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size75 inch
Touch Accuracy< 1 mm
Touch Points20-point multi-touch
Touch Response Time≤ 15 ms
Touch TechnologyInGlass
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemWindows 7-11, Linux, Android (native touch)
Audio
AudioIntegrated 10 W + 10 W speakers; optional amplifier for 2 x 15 W speakers
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotIntel Smart Display Module slot-in PC (Large and Small, up to 66 W)
PortsHDMI In × 2, DisplayPort In × 2, HDMI Out × 1 (loop-through), DisplayPort Out × 1 (loop-through), LAN × 1, RS232 × 1, USB 2.0 × 2, Audio Out × 1
Power
Power Consumption205 W (shipping setting)
Standby Power< 0.5 W; < 2 W (networked standby)
Physical
Dimensions1724.6 x 1003 x 93.4 mm
Duty Cycle24/7
Operating Humidity20% to 80% RH
Operating Temperature0 to 35 °C
VESA Mount600 x 400 mm
Weight62 kg
Compliance
CertificationsCE, EMC Class B, RoHS, EnergyStar 8.0
IP RatingIP5x (front); IP2x (back)
Warranty3 years (including backlight)
Downloads
Manufacturer documents for the NEC MultiSync M Series 75-inch Interactive Flat Panel – M751 IGB — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the M751 IGB support pen writing?
Yes. The InGlass touch display works with the two passive styluses included and supports Windows Ink and palm rejection. Finger, glove and stylus input are supported, with stylus input at 2 mm or larger.
Can the M751 IGB be used in a video wall?
The manufacturer lists a display wall calibrator software and calibration with corner uniformity, gamma, RGB and white point. These support matching screens across a wall. Procure.ae can supply and install the display across the UAE.
Can the M751 IGB be wall mounted?
Yes. It has a 600 x 400 mm VESA pattern with M8 holes and FDMI mounting. The manufacturer lists a wall mount (L20PNWALL90EU) and a trolley option. The panel weighs 62 kg, so the mount must be rated for that load.
Does it work with Crestron or other control systems?
Yes. The manufacturer lists Crestron Connected certification, AMX NetLinx support, PJLink, HDMI CEC, ASCII commands, SNMP and an HTTP browser. Remote management includes NaViSet Administrator 2 and automated email alerts.
What inputs and outputs does it have?
It has two DisplayPort and two HDMI inputs with HDCP. Loop-through outputs include one DisplayPort and one HDMI for a slot-in PC. Other ports include LAN 100 Mbit, RS232, USB 2.0 and a 3.5 mm audio output.
