NECInteractive Flat PanelsSKU E705 SST

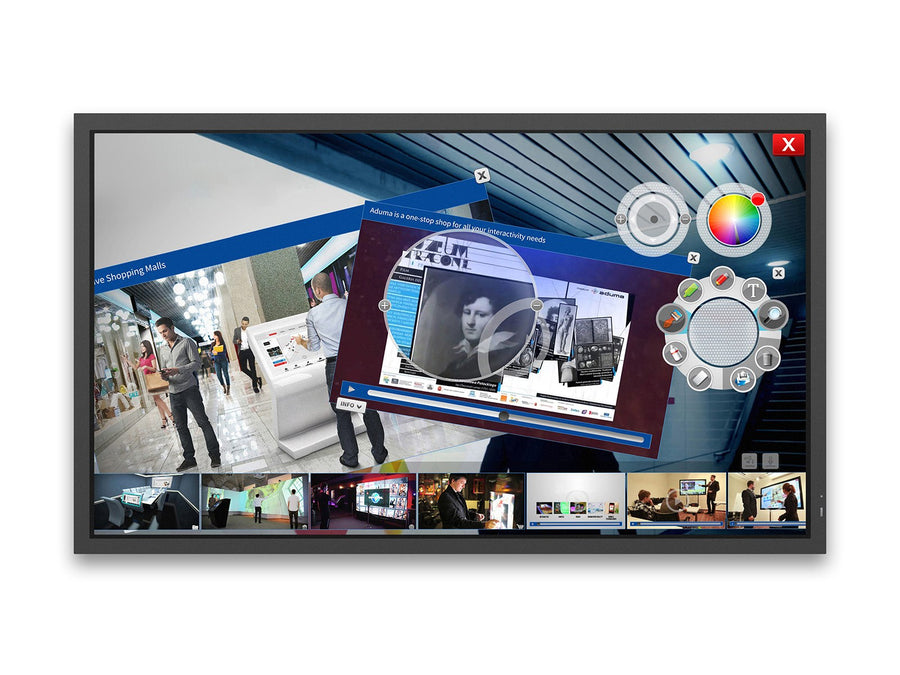

NEC MultiSync E Series 70-inch Interactive Flat Panel – E705 SST
The NEC MultiSync E705 SST is a 70-inch Full HD interactive flat panel for classrooms and corporate meeting rooms. Its ShadowSense touch supports 10 real-time touch points, and an OPS slot accepts a Windows slot-in PC. Procure.ae supplies the E705 SST in the UAE.
The E705 SST has a 70-inch panel with 1920 x 1080 native resolution at 60 Hz and 178° viewing angles. Brightness is 340 cd/m², rising to 400 cd/m² at maximum, with 4000:1 typical contrast. ShadowSense touch supports real multi-touch up to 10 touches, with finger, glove and stylus input at 4 mm or larger. Touch accuracy is under 2 mm. Integrated 10 W + 10 W speakers are fitted, and optional 15 W + 15 W speakers are available.
The E705 SST suits classrooms and smaller corporate meeting rooms where several people write and present at the same time. The OPS slot takes an HD-SDI or HDBaseT receiver, an OPS digital signage player or a slot-in PC, with an Intel Core i5 or i7 recommended. Native touch works with Windows 7 to 11, Linux and Android. Inputs cover DisplayPort, two HDMI, DVI-D and D-sub, with LAN and RS232 control and SNMP remote management.
Screen Size
70 inch
Resolution
1920 x 1080 (Full HD)
Brightness
340 nits (400 nits max)
Touch Technology
ShadowSense
- ShadowSense touch
- Full HD panel
- Ambient light sensor
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
ShadowSense touch
Real multi-touch with 10 simultaneous touch points and under 2 mm accuracy.
02
Full HD panel
1920 x 1080 native resolution at 60 Hz with 178° viewing angles.
03
Ambient light sensor
Integrated sensor with programmable triggered actions.
04
OPS slot
Accepts HD-SDI, HDBaseT, digital signage or slot-in PC modules.
05
Built-in speakers
10 W + 10 W, with optional 15 W + 15 W speakers.
06
Inputs and control
DisplayPort, two HDMI, DVI-D, D-sub, LAN and RS232 control.
07
Energy efficiency
Energy efficiency class A with ECO mode and a carbon savings meter.
08
Warranty cover
3 years including backlight, with optional fourth and fifth year extensions.
Specifications
32 specificationsGeneral
Key Features10-point ShadowSense touch, Full HD 1920 x 1080, Ambient light sensor, 178° viewing angle, OPS slot-in PC support, Built-in 10 W speakers
ModelE705 SST
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
Bezel Size33 mm top/bottom; 41 mm left/right
Brightness340 nits (400 nits max)
Contrast Ratio4,000:1
Panel TechnologyUV2A (VA)
Refresh Rate60 Hz
Resolution1920 x 1080 (Full HD)
Response Time8 ms
Screen Size70 inch
Touch Accuracy< 2 mm
Touch Points10-point multi-touch
Touch Resolution12-bit (4096 x 4096)
Touch Response Time6 to 8 ms
Touch TechnologyShadowSense
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemWindows 7-11, Linux, Android (native touch)
Audio
AudioIntegrated 10 W + 10 W speakers; optional 15 W + 15 W
Connectivity
OPS SlotHD-SDI 1.5G/3G, HDBaseT receiver, OPS digital signage player, slot-in PC (Intel Core i5/i7 recommended)
PortsHDMI In × 2, DisplayPort In × 1, DVI-D In × 1, D-sub 15-pin In × 1, LAN × 1, RS232 × 1, Audio Out × 1
Power
Power Consumption158 W (eco setting)
Standby Power< 0.5 W (ECO standby); < 1 W
Physical
Dimensions1658 x 985 x 106 mm (without stand)
Duty Cycle12/7
Operating Humidity20% to 80% RH
Operating Temperature0 to 35 °C
VESA Mount400 x 400 mm
Weight70 kg (without stand)
Compliance
CertificationsCE, RoHS
Warranty3 years (including backlight)
Downloads
Manufacturer documents for the NEC MultiSync E Series 70-inch Interactive Flat Panel – E705 SST — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the E705 SST a touchscreen display?
Yes. The E705 SST uses ShadowSense touch with up to 10 real-time touch points. Finger, glove and stylus input are supported, with stylus input at 4 mm or larger. The USB touch connection is plug and play and works with Windows, Linux and Android.
What room size suits the 70-inch E705 SST?
The manufacturer's specifications do not state a room size. A 70-inch panel suits smaller corporate meeting rooms and classrooms, where a small group works at one screen together. The panel is Full HD at 1920 x 1080 native resolution.
Can the E705 SST be wall mounted?
Yes. It has a 400 x 400 mm VESA pattern with M8 holes and FDMI mounting. The manufacturer lists a wall mount (PDW T XL or PD02WHA), a trolley and feet (ST-801) as accessories.
Can it run a Windows PC or digital signage player?
Yes. The OPS slot accepts a slot-in PC, an HD-SDI or HDBaseT receiver, or an OPS digital signage player. The manufacturer recommends an Intel Core i5 or i7 slot-in PC with WS7P.
What inputs does it have?
It has one DisplayPort with HDCP, one DVI-D with HDCP, two HDMI with HDCP and one D-sub 15-pin analogue input. Audio includes two 3.5 mm inputs and a 3.5 mm output. Control is by LAN 100 Mbit, RS232 and SNMP.
