NECInteractive Flat PanelsSKU CB861Q 86
NEC MultiSync CB861Q 86” 4K UHD Interactive Display
The NEC MultiSync CB861Q 86” 4K UHD Interactive Display is a interactive flat panel available in the UAE from Procure.ae.
The NEC MultiSync CB861Q is an 86-inch 4K UHD interactive display , designed to enhance collaboration and productivity in corporate and educational environments. With multi-touch capabilities , built-in whiteboarding tools , and wireless screen sharing , it ensures seamless engagement in meetings and classrooms. The high-resolution display delivers crystal-clear visuals , while the integrated speakers and connectivity options , including HDMI, USB, and Wi-Fi , provide a versatile and user-friendly experience. Whether for presentations, brainstorming sessions, or remote collaboration, this.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits
Touch Technology
Infrared
- 86-Inch 4K UHD Display
- Multi-Touch Technology
- Built-In Whiteboarding Tools
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
86-Inch 4K UHD Display
Provides ultra-sharp visuals with vibrant colors.
02
Multi-Touch Technology
Supports multiple simultaneous touch points for seamless interaction.
03

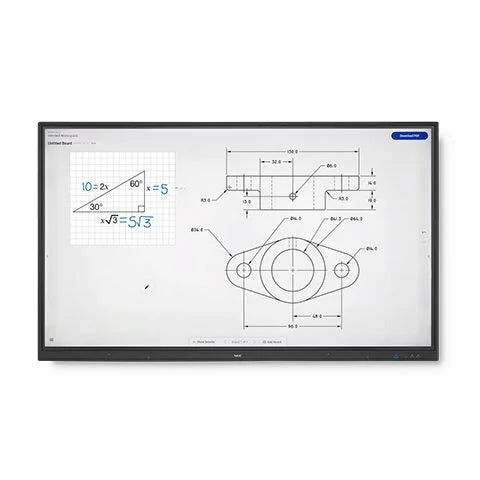

Built-In Whiteboarding Tools
Enhance collaboration with real-time annotations.
04

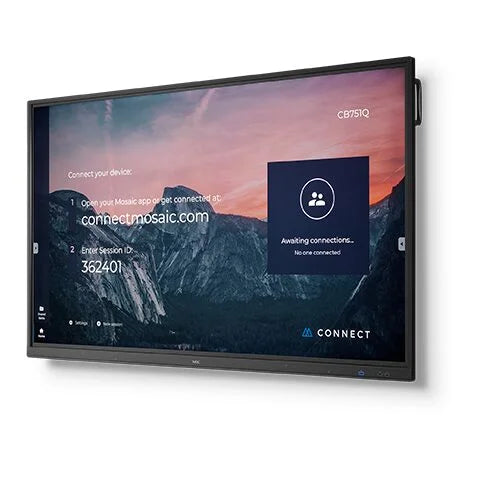

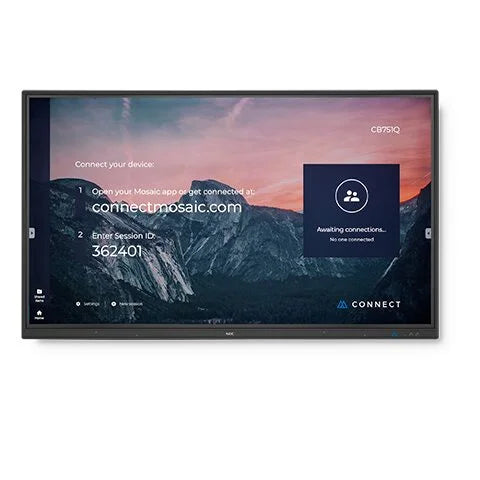

Wireless Screen Sharing
Allows cable-free content sharing from multiple devices.
05
Integrated Speakers
Delivers high-quality audio for an immersive experience.
06
Flexible Connectivity
Includes HDMI, USB, and Wi-Fi for easy integration.
07
Durable & Energy-Efficient Design
Built for long-term use with low power consumption.
08
Split-Screen Functionality
Enables multiple users to work on different content simultaneously.
Specifications
40 specificationsGeneral
Key Features4K UHD IPS panel, 20-point infrared touch, OPS slot, 2 × 12 W speakers, Mosaic Connect wireless presentation, Whiteboard app, RS-232 and LAN control
ModelCB861Q 86

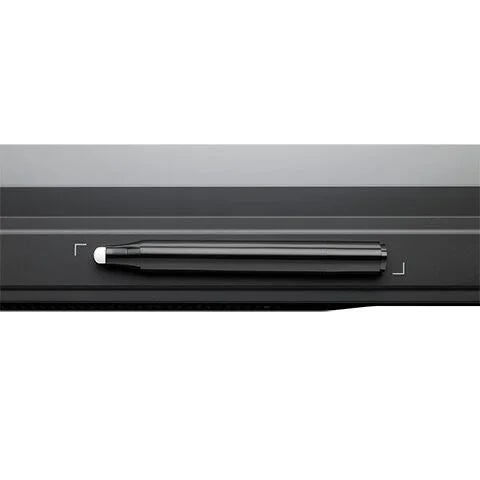

What's in the Box3 × stylus, HDMI cable, power cable, remote control, USB cable, user manual, VGA cable, wall mount
Display
Aspect Ratio16:9
BacklightDirect LED
Brightness350 nits
Color Depth1.07 billion (10-bit)
Contrast Ratio1,200:1
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Touch Points20-point multi-touch
Touch TechnologyInfrared
Viewing Angle178° (H) / 178° (V)
Performance

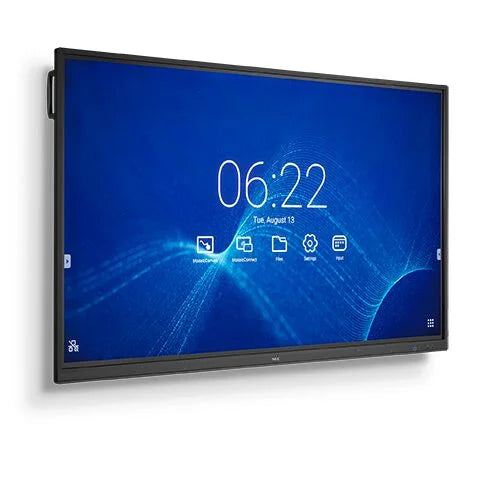

Operating SystemAndroid
RAM2 GB
Storage16 GB
Audio
AudioIntegrated speakers (2 × 12 W)
Audio In3.5 mm jack × 1
Audio Out3.5 mm jack × 1, S/PDIF × 1

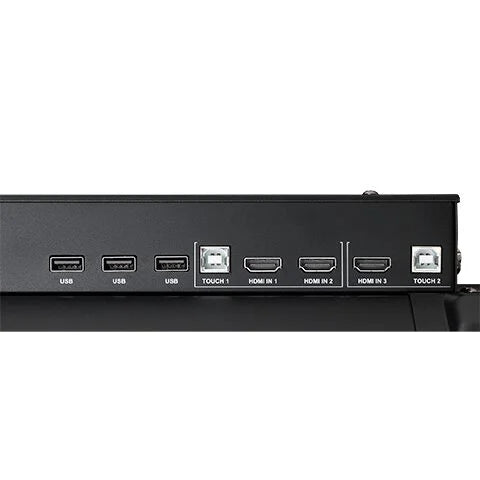

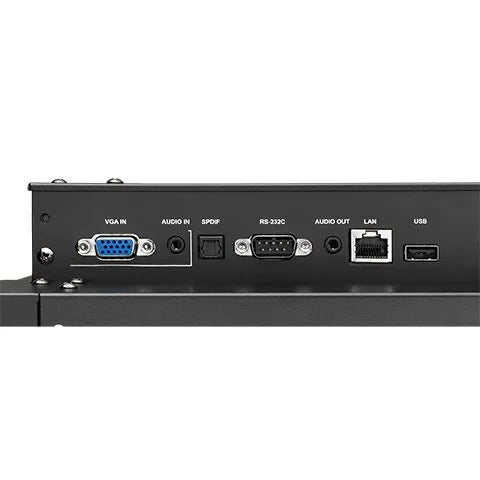

Connectivity
BluetoothBuilt-in
EthernetLAN 100 Mbit × 2 (in/out control)
HDMI InputsHDMI In × 3
OPS SlotOPS slot (Intel OPS standard)
Serial PortRS-232 × 1
USB PortsUSB Type-B × 2 (upstream), USB 2.0 × 6 (downstream)
VGA InputVGA In × 1
Wi-FiBuilt-in
Power
Power Consumption365 W (typical)
Power Source100-240 V AC, 50/60 Hz
Standby Power< 0.5 W (ECO standby), < 2 W (networked standby)
Physical
Dimensions1957.1 x 1159.8 x 86.8 mm
Duty Cycle12/7
Operating Humidity10% to 90% RH
Operating Temperature0 to 40 °C

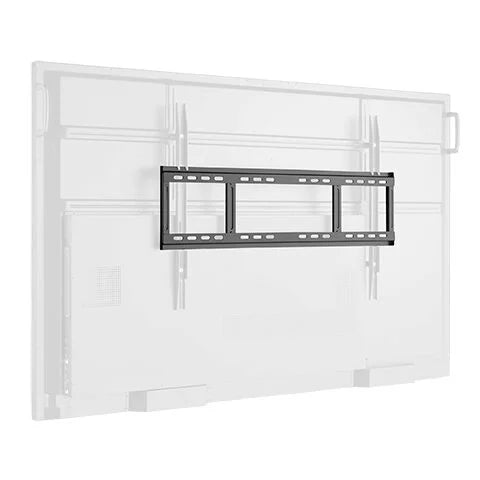

VESA Mount800 x 600 mm
Weight67.3 kg
Compliance
Country of OriginJapan
Warranty3 years (incl. backlight)
Downloads
Manufacturer documents for the NEC MultiSync CB861Q 86” 4K UHD Interactive Display — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the NEC interactive flat panel used for?
The NEC MultiSync CB861Q is an 86-inch 4K UHD interactive display , designed to enhance collaboration and productivity in corporate and educational environments. With multi-touch capabilities , built-in whiteboarding tools , and wireless screen sharing , it ensures seamless engagement in meetings.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
Does this interactive panel support multi-touch and on-screen writing?
Yes — it uses Infrared touch technology, so multiple users can write and interact at the same time.
Can I run apps on it without connecting a PC?
Yes — it runs Android, so you can open apps, whiteboard, and browse without a separate computer.
Does it have a built-in camera for video calls?
Request a quote via WhatsApp wa.me/97145465041 or email info@procure.ae.
