NECInteractive Flat PanelsSKU C751Q SST

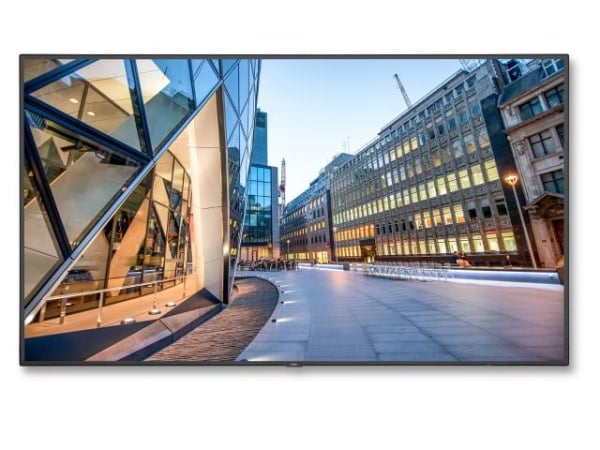

NEC MultiSync 75-inch 4K ShadowSense Interactive Flat Panel – C751Q SST
The NEC MultiSync C751Q SST is a 75-inch 4K UHD interactive flat panel with ShadowSense optical touch that registers up to 10 simultaneous touches from a finger, glove or stylus. It has a IPS panel, an OPS slot and a Compute Module slot, and is rated for 24/7 operation. Procure.ae supplies it in the UAE.
The C751Q SST has a 75-inch IPS panel with Edge LED backlighting at a native 3840 x 2160 resolution, a 1,200:1 typical contrast ratio, 178° viewing angles and 10-bit colour depth. Brightness is rated at 350 nits and set to 254 nits at shipment. ShadowSense optical touch detects up to 10 touches from a finger, a gloved hand or a stylus of 2 mm or larger, with accuracy under 2 mm and a touch response of 6 to 8 ms. Ambient light rejection works up to full sunlight, approximately 100,000 lux.
Native multi-touch works with Windows 7 to 11, Linux and Android over USB 2.0 HID, and Windows Ink is supported. There are three HDMI and two DisplayPort inputs, an OPS slot for a Slot-in PC and a Compute Module slot, with LAN, RS-232 and a remote control jack for management. The display supports landscape, portrait and face-up orientation and mounts on a 400 x 400 or 600 x 400 mm VESA pattern.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits (254 nits at shipment sett...
Touch Technology
Optical
- ShadowSense Touch
- 4K UHD Panel
- Touch Precision
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
ShadowSense Touch
Optical touch registers up to 10 simultaneous touches from a finger, glove or stylus of 2 mm or larger.
02
4K UHD Panel
The 75-inch IPS panel runs at 3840 x 2160 with 1,200:1 contrast and 178° viewing angles.
03
Touch Precision
Touch accuracy is under 2 mm with 12-bit (4096 x 4096) resolution and a 6 to 8 ms response.
04
Light Rejection
Ambient light rejection holds up to full sunlight, approximately 100,000 lux.
05
OPS and Compute Slots
An OPS slot takes a Slot-in PC and a Compute Module 3 slot accepts NEC or Raspberry Pi modules.
06
Wide Connectivity
Inputs include 3 x HDMI and 2 x DisplayPort, with a DisplayPort loop-through output and LAN, RS-232 control.
07
Built-in Sensors
Three temperature sensors and an NFC sensor with 2 cm range are integrated; an external human sensor is optional.
08
24/7 Operation
The display is rated for 24/7 use and has IP5x front ingress protection.
Specifications
42 specificationsGeneral
CompatibilityNative multi-touch: Windows 7–11, Linux, Android; mouse mode: Windows XP/Vista, Mac OS. Touch via finger, gloves or stylus (≥ 2 mm), Windows Ink supported
Key FeaturesShadowSense optical touch, 10 touches, finger/glove/stylus input, OPS slot, Compute Module slot, NFC sensor, integrated 10 W + 10 W speakers, 24/7 operation
ModelC751Q SST
TypeInteractive Flat Panel
What's in the BoxDisplay, DisplayPort cable, USB cable, remote control, pen and eraser, CD-ROM with user guides
Display
BacklightEdge LED backlight
Bezel Size33 mm (top/bottom), 35.2 mm (left/right)
Brightness350 nits (254 nits at shipment setting)
Color Depth10-bit (1.073 billion colours)
Contrast Ratio1,200:1
OrientationLandscape, portrait, face-up
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms (grey-to-grey)
Screen Size75 inch
Touch Accuracy< 2 mm
Touch Points10-point multi-touch
Touch Resolution12-bit (4096 x 4096)
Touch Response Time6 to 8 ms
Touch TechnologyOptical
Viewing Angle178° horizontal / 178° vertical
Audio
Audio In3.5 mm jack × 1; digital audio via HDMI and DisplayPort
Audio Out3.5 mm jack × 1
DisplayPortDisplayPort In × 2 (HDCP), DisplayPort Out × 1 (loop-through)
Speaker Output10 W + 10 W (integrated)
Connectivity
EthernetLAN 100 Mbit In × 1, LAN 100 Mbit Out × 1
ExpansionCompute Module 3 slot (NEC Compute Module, Raspberry Pi Compute Module 1 and 3)
HDMI InputsHDMI In × 3 (HDCP)
OPS SlotYes, OPS (NEC / Intel Open Pluggable Specification)
SD Card SlotmicroSD (MediaPlayer) × 1
Serial PortRS-232C × 1
USB PortsUSB 2.0 Downstream × 1, USB Type-B Upstream × 1, USB 2.0 MediaPlayer × 1, USB 2.0 Compute Module × 2
Power
Power Consumption207 W (Eco, shipment setting)
Standby Power< 0.5 W; < 2 W (networked standby)
Physical
Dimensions1746 x 1025 x 88.5 mm (without stand)
Duty Cycle24/7
Operating Humidity20% to 80% RH
Operating Temperature0 to 30 °C
VESA Mount400 x 400 mm, 600 x 400 mm (M8, FDMI)
Weight77.5 kg
Compliance
CertificationsCE, EMC Class B, RoHS
IP RatingIP5x (front), IP2x (back)
Downloads
Manufacturer documents for the NEC MultiSync 75-inch 4K ShadowSense Interactive Flat Panel – C751Q SST — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What touch technology does the NEC C751Q SST use?
The C751Q SST uses ShadowSense optical touch. It supports up to 10 simultaneous touches with a finger, glove or stylus of 2 mm or larger, with accuracy under 2 mm. Ambient light rejection works up to full sunlight (approximately 100,000 lux), so the touch layer stays usable near bright windows.
What is the resolution and brightness of the C751Q SST?
The C751Q SST has a native 3840 x 2160 (4K UHD) resolution on a 75-inch IPS panel. Brightness is rated at 350 nits and is set to 254 nits at shipment. Typical contrast ratio is 1,200:1 and the viewing angle is 178° horizontal and vertical.
Which operating systems work with C751Q SST touch?
Yes, native multi-touch works with Windows 7 to 11, Linux and Android over a USB 2.0 HID connection, and Windows Ink is supported. Mac OS and older Windows XP and Vista systems use the default mouse mode. The USB interface is plug and play.
Can I fit a PC inside the C751Q SST?
Yes. The C751Q SST has an OPS slot for a Slot-in PC, including Intel Atom, Celeron and Core based modules, plus a Compute Module 3 slot for NEC or Raspberry Pi Compute Module 1 and 3 boards. HDBaseT receiver and SDI options are also listed for the OPS slot.
How is the C751Q SST mounted and how heavy is it?
The C751Q SST measures 1746 x 1025 x 88.5 mm without stand and weighs 77.5 kg. It has a 4-hole VESA pattern of 400 x 400 mm or 600 x 400 mm with M8 screws. NEC also lists trolleys and wall mounts for the range, so plan for a mount rated for this weight.
