NECInteractive Flat PanelsSKU V754Q IGB

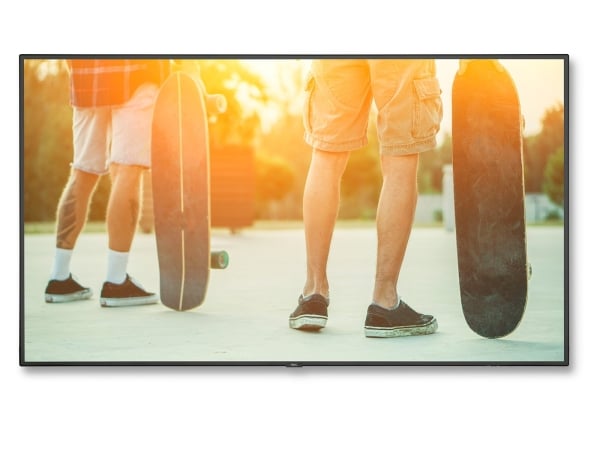

NEC MultiSync 75-inch 4K InGlass Touch Interactive Flat Panel – V754Q IGB
The NEC MultiSync V754Q IGB is a 75-inch 4K UHD interactive flat panel with InGlass infrared touch for up to 20 simultaneous touches. It offers 500 nits brightness, an OPS slot and a Compute Module slot for an embedded PC, and 24/7 operation. Procure.ae supplies it across the UAE for schools, offices and public venues.
The NEC MultiSync V754Q IGB (InGlass touch) has a 3840 x 2160 native resolution on a 75-inch screen. InGlass infrared touch handles up to 20 touches with a finger, gloves or a stylus of 2 mm or more, with accuracy below 1 mm and a response time of 15 ms or less. It uses an IPS panel with edge LED backlights and local dimming, rated at 500 nits (350 nits as shipped) with a 1,200:1 typical contrast ratio and 178°/178° viewing angles. Integrated 10 W + 10 W speakers and three temperature sensors are built in.
The V754Q IGB is part of the NEC MultiSync V Series and is suited to classrooms, boardrooms and training rooms where handwriting and annotation matter. It supports native multi-touch on Windows 7 to 11, Linux and Android, and an OPS slot or Compute Module slot lets IT teams add a PC without external boxes. Mounting uses a 400 x 400 mm or 600 x 400 mm FDMI pattern (M8), and the V754Q IGB weighs 73 kg.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits (350 nits shipment setting)
Touch Technology
Infrared (InGlass)
- InGlass touch
- 4K UHD panel
- Wide connectivity
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
InGlass touch
Infrared InGlass touch recognises up to 20 touches from a finger, gloves or a stylus of 2 mm or more.
02
4K UHD panel
IPS panel with edge LED backlights, 3840 x 2160 resolution and 1,200:1 typical contrast.
03
Wide connectivity
Three HDMI and two DisplayPort inputs with HDCP, plus a DisplayPort loop-through output.
04
OPS and Compute Module
An OPS slot and a NEC Compute Module 3 slot accept embedded PCs and Raspberry Pi Compute Module 1 and 3.
05
Windows Ink and USB hub
Windows Ink is supported, and a four-port USB 3.0 hub is built in for peripherals.
06
Integrated audio
10 W + 10 W integrated speakers, with optional 15 W + 15 W speakers and a soundbar available as accessories.
07
24/7 operation
Specified for 24/7 operation at 0 to 35 °C and 20% to 80% humidity, with IP5x front protection.
08
Network control
100 Mbit LAN, RS-232 and a remote-control wire support central management and display control.
Specifications
43 specificationsGeneral
CompatibilityNative multi-touch: Windows 7–11, Linux, Android; mouse mode: Windows XP, Windows Vista, macOS; Windows Ink supported
Key Features4K UHD, InGlass touch, 20 touches, Windows Ink, 4-port USB 3.0 hub, local dimming, OPS slot, 24/7 operation
ModelV754Q IGB
TypeInteractive Flat Panel
What's in the BoxDisplay, 2 × stylus, USB cables (10 cm and 2 × 300 cm), DisplayPort cable, power cable, remote control, user guides on CD-ROM
Display
BacklightEdge LED
Bezel Size18.8 mm (all sides)
Brightness500 nits (350 nits shipment setting)
Color Depth1.073 billion colours (10-bit)
Contrast Ratio1,200:1
OrientationLandscape, portrait, face up
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms (grey-to-grey)
Screen Size75 inch
Touch Accuracy< 1 mm
Touch Points20-point multi-touch
Touch Response Time≤ 15 ms
Touch TechnologyInfrared (InGlass)
Viewing Angle178° horizontal / 178° vertical
Audio
Audio In3.5 mm jack × 1
Audio Out3.5 mm jack × 1
DisplayPortDisplayPort In × 2 (HDCP), DisplayPort Out × 1 (loop-through)
Speaker Output10 W + 10 W (integrated)
Connectivity
Ethernet100 Mbit LAN In × 1, LAN Out × 1
ExpansionNEC Compute Module 3 slot (NEC Compute Module, Raspberry Pi Compute Module 1 and 3)
HDMI InputsHDMI In × 3 (HDCP)
InputsHDMI × 3, DisplayPort × 2, OPS slot, 3.5 mm audio, LAN, RS-232, USB Type-B (touch), USB 3.0 hub × 4
OPS SlotOPS slot (NEC / Intel Open Pluggable Specification)
Serial PortRS-232 × 1
Touch USB PortsUSB Type-B × 1 (upstream, USB-HID)
USB PortsUSB 3.0 hub × 4, USB 2.0 × 1 (downstream), USB 2.0 × 1 (media player), USB 2.0 × 2 (compute module)
Power
Power Consumption167 W (as shipped)
Standby Power< 0.5 W; < 2 W (networked standby)
Physical
Dimensions1724.6 x 1003 x 81.3 mm (without stand)
Duty Cycle24/7
Operating Humidity20% to 80% RH
Operating Temperature0 to 35 °C
VESA Mount400 x 400 mm and 600 x 400 mm (FDMI), M8
Weight73 kg
Compliance
CertificationsCE, EMC Class B, FCC, REACH, RoHS
IP RatingIP5x (front), IP2x (back)
Warranty3 years (including backlight)
Downloads
Manufacturer documents for the NEC MultiSync 75-inch 4K InGlass Touch Interactive Flat Panel – V754Q IGB — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
How many touch points does the NEC MultiSync V754Q IGB support?
Yes, it is a true multi-touch display. The V754Q IGB uses InGlass infrared touch and recognises up to 20 simultaneous touches from a finger, gloves or a stylus of 2 mm or more. Touch accuracy is under 1 mm and touch response time is 15 ms or less, over a USB-HID connection.
Which video inputs and ports does the NEC MultiSync V754Q IGB have?
It has three HDMI inputs and two DisplayPort inputs, all with HDCP, plus a DisplayPort loop-through output. Audio connects through a 3.5 mm jack, control through 100 Mbit LAN, RS-232 and a remote-control wire, and touch through a USB Type-B upstream port. A four-port USB 3.0 hub is also built in.
Can I fit a PC or compute module inside the NEC MultiSync V754Q IGB?
Yes. The OPS slot (NEC / Intel Open Pluggable Specification) accepts an HDBaseT receiver or an Intel Atom, Celeron or Core CPU module. A separate NEC Compute Module 3 slot takes the NEC Compute Module or Raspberry Pi Compute Module 1 and 3.
How is the NEC MultiSync V754Q IGB mounted?
It has a 400 x 400 mm or 600 x 400 mm FDMI pattern (M8) for wall mounting and weighs 73 kg, so plan for a suitable wall or a trolley. The manufacturer lists wall mounts, trolleys and a soundbar as accessories. Installation can be arranged through Procure.ae.
Can the NEC MultiSync V754Q IGB run all day?
Yes, the manufacturer specifies 24/7 operation. The operating range is 0 to 35 °C and 20% to 80% humidity, and the front has IP5x protection. Power use is 167 W as shipped. The warranty is stated as 3 years including backlight.
Can I buy the NEC MultiSync V754Q IGB in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
