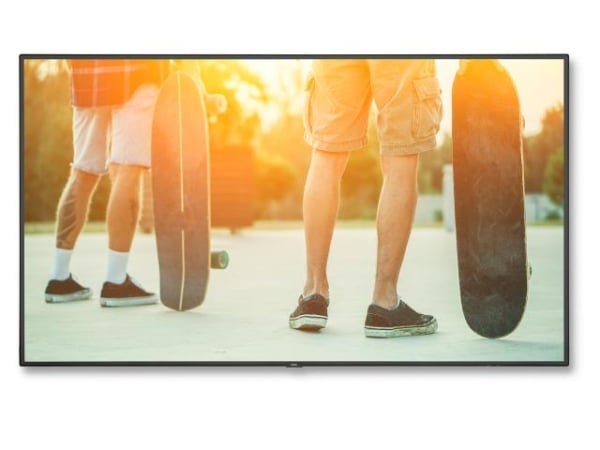

NEC MultiSync 55-inch 4K PCAP Touch Interactive Flat Panel – V554Q PCAP
The NEC MultiSync V554Q PCAP is a 55-inch 4K UHD interactive display with projected capacitive (PCAP) touch for up to 80 simultaneous touches and an edge-to-edge glass front. It is designed for table installations and offers an OPS slot and 24/7 operation. Procure.ae supplies it across the UAE for retail, hospitality and exhibition use.
The NEC MultiSync V554Q PCAP (PCAP touch) has a 3840 x 2160 native resolution on a 55-inch screen. Projected capacitive touch handles up to 80 touches with a finger or thin gloves, with accuracy below 1 mm. The glass front is flush with no bezel. It is an IPS panel with edge LED backlights rated at 500 nits with a 1,100:1 typical contrast ratio and 178°/178° viewing angles. Integrated 10 W + 10 W speakers plus ambient light, temperature and NFC sensors are built in.
The V554Q PCAP is part of the NEC MultiSync V Series. Unlike the InGlass and ShadowSense versions, it is built for flat, face-up table installations as well as upright use, with table legs, a wooden surround and a PC holder listed as accessories. It supports native multi-touch on Windows 7 to 11, Linux and Android, and mounts on a 300 x 300 mm FDMI pattern (M6). It weighs 42.5 kg.
Key features
Specifications
| Compatibility | Native multi-touch: Windows 7–11, Linux, Android; mouse mode: Windows XP, Windows Vista, macOS |
| Key Features | 4K UHD, PCAP touch, 80 touches, edge-to-edge glass, table installation, OPS slot, Compute Module slot, 24/7 operation |
| Model | V554Q PCAP |
| Type | Interactive Flat Panel |
| What's in the Box | Display, DisplayPort cable, HDMI cable, power cable, remote control, user manual |
| Aspect Ratio | 16:9 |
| Backlight | Edge LED |
| Bezel Size | Edge-to-edge flush glass (no bezel) |
| Brightness | 500 nits |
| Color Depth | 1.073 billion colours (10-bit) |
| Contrast Ratio | 1,100:1 |
| Orientation | Landscape, portrait, face up |
| Panel Technology | IPS |
| Refresh Rate | 60 Hz |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms (grey-to-grey) |
| Screen Size | 55 inch |
| Touch Accuracy | < 1 mm |
| Touch Points | 80-point multi-touch |
| Touch Technology | PCAP |
| Viewing Angle | 178° horizontal / 178° vertical |
| Audio In | 3.5 mm jack × 1 |
| Audio Out | 3.5 mm jack × 1 |
| DisplayPort | DisplayPort In × 2 (HDCP), DisplayPort Out × 1 (loop-through) |
| Speaker Output | 10 W + 10 W (integrated) |
| Ethernet | 100 Mbit LAN In × 1, LAN Out × 1 |
| Expansion | NEC Compute Module 3 slot (NEC Compute Module, Raspberry Pi Compute Module 1 and 3) |
| HDMI Inputs | HDMI In × 3 (HDCP) |
| Inputs | HDMI × 3, DisplayPort × 2, OPS slot, 3.5 mm audio, LAN, RS-232, USB Type-B (touch) |
| OPS Slot | OPS slot (NEC / Intel Open Pluggable Specification) |
| Serial Port | RS-232 × 1 |
| Touch USB Ports | USB Type-B × 1 (upstream, USB-HID) |
| USB Ports | USB 2.0 × 1 (downstream), USB 2.0 × 1 (media player), USB 2.0 × 2 (compute module) |
| Power Consumption | 132 W (Eco, shipment setting) |
| Standby Power | < 0.5 W; < 2 W (networked standby) |
| Dimensions | 1279 x 749 x 75.9 mm |
| Duty Cycle | 24/7 |
| Operating Humidity | 20% to 80% RH |
| Operating Temperature | 0 to 35 °C |
| VESA Mount | 300 x 300 mm (FDMI), M6 |
| Weight | 42.5 kg |
| Certifications | CE, EAC, EMC Class B, REACH, RoHS |
| IP Rating | IP5x (front), IP2x (back) |
