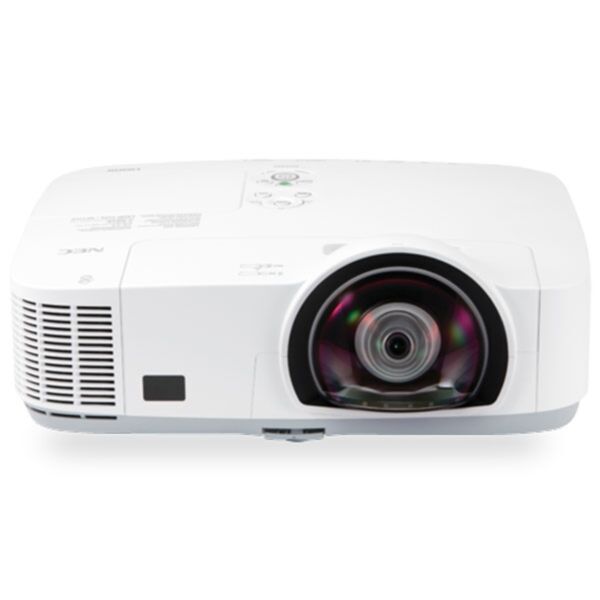

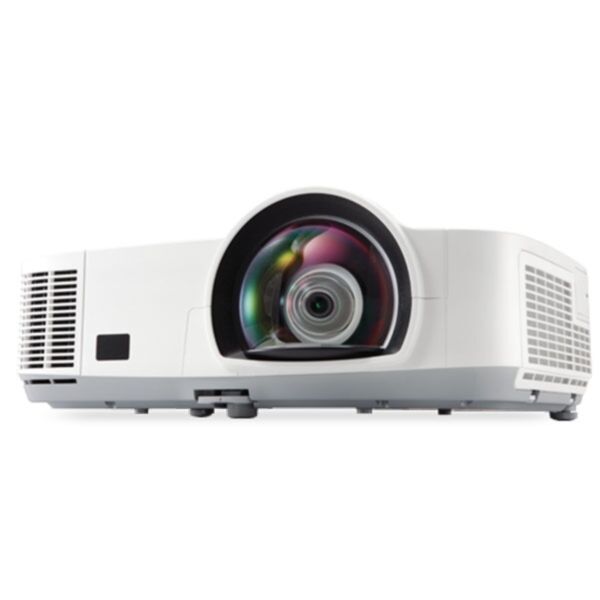

NEC M300WS 3000-Lumens WXGA Resolution Short Throw Projector

  • SKU: NP-M300WS

Actual Stock Can Be Confirmed After Placing the Order.

OVERVIEW Seamlessly present to your audience using the NEC M300WS, a widescreen, value-driven and eco-friendly portable projector. This model delivers an ideal short throw distance solution for education (including interactive whiteboards) and corporate applications, and offers 3000 lumens to deliver remarkably bright images. With... See More

Whatsapp Us
TELEPHONE (+971) 454 65041
WHATSAPP (+971) 454 65041
FREE SHIPPING All orders over AED1999/-

OVERVIEW

Seamlessly present to your audience using the NEC M300WS, a widescreen, value-driven and eco-friendly portable projector. This model delivers an ideal short throw distance solution for education (including interactive whiteboards) and corporate applications, and offers 3000 lumens to deliver remarkably bright images. With advanced connectivity, including HDMI and USB inputs, and wired and wireless (optional) networking options, the M300WS benefits users requiring maintenance-free design and envronmentally conscious features.

SPECIFICATIONS

Optical

Display Technology 0.59" LCD w/ MLA
Light Output(Lumens) 3000 normal / Eco = approx. 75% of normal mode

Resolution

Native WXGA 1280 x 800
Maximum UXGA 1600 x 1200
Contrast Ratio (up to) 2000:1
Lamp Type 265W AC / 195W eco
Lamp Life (up to) 3000 hours normal / 3500 hours eco
Screen Size (diagonal) 56.2 to 104 in. / 1.47 to 2.64m
Throw Ratio 0.45:1
Projection Distance 1.8 to 3.6 ft. / 0.57 to 1.1m
Projector Angle 37.3° tele / 38.6° wide
Lens
Zoom 1.2
Focus Manual
F number, fnumber F=2, f=6.4mm
Keystone Correction Automatic or manual +/- 20°

Synchronization Range

Horizontal (Analog/Digital) 15-100 kHz
Vertical (Analog/Digital) 50-120 Hz
Supported Video Standards NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
SD/HD Video Signal Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, Y/Cb/Cr component (with optional adapter – ADP-CV1E)
PC Signal Compatibility VGA, SVGA, XGA, SXGA, SXGA+, UXGA
Macintosh Compatibility Yes

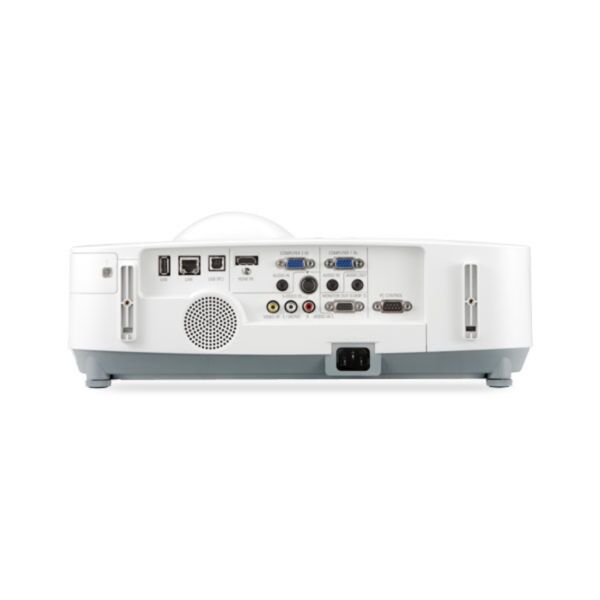

Input/Output Terminals

RGB1(analog) VGA 15-pin D-sub
RGB2(analog) VGA 15-pin D-sub
RGB3(digital) HDMI
Video 1 RCA
Video 2 S-Video
Audio 1 1/8 in. stereo
Monitor out VGA 15-pin D-sub
Audio out Yes (variable)
Audio 10W speaker
External Control RS-232, IR, Wired LAN, DDC/CI, USB, Wireless LAN (optional)
Sync Compatiblity Separate Sync / Composite Sync / Sync on G
Networking RJ-45 Monitoring

Electrical

Power Requirements 100-240V AC, 50/60 Hz
Input Current 3.9A/1.7A
Power Consumption (Normal/ECO Mode/Standby/Standby Power Saving) 358W / 271W / 8W / 0.2W

Mechanical

Installation Orientation Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
Dimensions (WxDxH) 15.7 x 12.2 x 5.5 in. / 398 x 309 x 140mm
Net Weight 8.8 lbs. / 4 kg
Fan Noise 36 dB normal / 30 dB eco
Regulations UL60950-1, CSA60950-1, FCC Part 15 Class B, ICES-03 Class B, NOM-001-SCFI-1993

Environmental

Operating Temperature 41-104°F / 5-40°C
Humidity 20-80% non-condensing
Storage -14-122°F / -10-50°C

Limited Warranty

3 years. First year Instacare Service. Lamp warranty is 1 year or 500 hours, whichever comes first.

Additional Features

  • Automatic keystone correction
  • Auto power on
  • ECO Mode technology
  • Closed captioning
  • Variable audio out
  • Carbon savings meter
  • Virtual Remote
  • Sleep timer
  • Quick power-off
  • Built-in wall color correction
  • Advanced AccuBlend
  • AutoSense
  • Kensington lock slot
  • Image magnification
  • Discreet source keys

Ships With

  • Remote control
  • Batteries
  • Power cord
  • RGB signal cable
  • Lens cap
  • User manual
  • Quick Start Guide
  • Product registration card
  • Security Sticker
