NECInteractive Flat PanelsSKU 75-inch InfinityBoard 2.1 QL

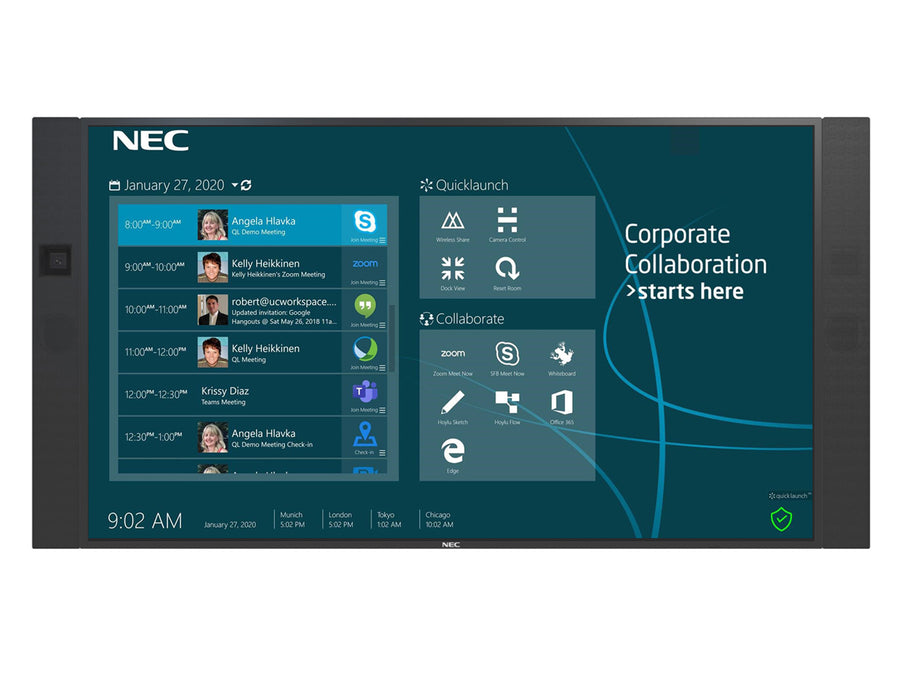

NEC InfinityBoard 2.1 QL 75-inch Interactive Flat Panel
The NEC 75-inch InfinityBoard 2.1 QL is an interactive collaboration display with Quicklaunch one-click meeting access. It combines a 3840 x 2160 IPS panel, 20-point InGlass touch and a Huddly IQ camera, with a slot-in PC that has 16 GB of RAM and a 256 GB SSD. Procure.ae supplies the NEC 75-inch InfinityBoard 2.1 QL across the UAE.
The 75-inch InfinityBoard 2.1 QL uses a 3840 x 2160 (4K UHD) IPS panel with 500 nits brightness (350 nits at the shipment setting) and a 1,200:1 typical contrast ratio. InGlass touch supports real multi-touch up to 20 touches with less than 1 mm accuracy and Windows Ink support. The slot-in PC runs Windows 10 Professional on an Intel Core i7 with 16 GB of DDR4 RAM and a 256 GB SATA SSD. The Huddly IQ camera outputs 1080p at 30 fps, and Mosaic Connect software is included.
Quicklaunch is a simple and secure meeting room interface that provides multi-platform integration and turns the display into a one-click meeting space. Native multi-touch works with Windows 7-11, Linux and Android, and the open platform is not restricted to one video conferencing app. Wall mounting uses 400 x 400 mm or 600 x 400 mm FDMI patterns. Compared with the 2.1 model, this version adds Quicklaunch, 16 GB of RAM and a 256 GB SSD.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits (350 nits at shipment sett...
Touch Technology
InGlass
- 4K UHD IPS display
- Quicklaunch interface
- 20-point InGlass touch
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD IPS display
3840 x 2160 resolution with 500 nits brightness and 10-bit colour.
02
Quicklaunch interface
A simple, secure meeting room interface for one-click meeting access.
03
20-point InGlass touch
Real multi-touch up to 20 touches with Windows Ink support.
04
Huddly IQ camera
1080p at 30 fps with a 150-degree diagonal viewing angle.
05
OPS slot-in PC
Intel Core i7 with 16 GB RAM, 256 GB storage and Windows 10 Professional.
06
Mosaic Connect software
Free software included with the display.
07
Room connectivity
Three HDMI and two DisplayPort inputs, with RS232 and LAN control.
08
Low standby power
Under 0.5 W in power-saving mode and under 2 W in networked standby.
Specifications
39 specificationsGeneral
Key Features20-point InGlass touch, Windows Ink, Quicklaunch one-click meetings, Huddly IQ 1080p camera, 16 GB RAM slot-in PC, Windows 10 Professional, Mosaic Connect included, RS232 and LAN control
Model75-inch InfinityBoard 2.1 QL
TypeInteractive Flat Panel
What's in the BoxDisplay, OPS slot-in PC, Huddly IQ camera, side-mounted speakers, 2 stylus pens, remote control, DisplayPort cable, USB cables, power cable, CD-ROM user guides
Display
Aspect Ratio16:9
Brightness500 nits (350 nits at shipment setting)
CameraHuddly IQ, 1080p at 30 fps, 150 degrees diagonal viewing angle
Color Depth10-bit (1.073 billion colours)
Contrast Ratio1,200:1 (typical)
OrientationLandscape or portrait
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms (typical, grey-to-grey)
Screen Size75 inch
Touch Accuracy< 1 mm
Touch Points20-point multi-touch
Touch Response Time<= 15 ms
Touch TechnologyInGlass
Viewing Angle178 degrees horizontal / 178 degrees vertical
Performance
Operating SystemWindows 10 Professional (slot-in PC)
ProcessorIntel Core i7, 8 MB cache, 4 x 3 GHz
RAM16 GB DDR4
Storage256 GB SATA SSD
Audio
Speaker TypeSide-mounted speakers
Connectivity
BluetoothBluetooth 4.2
OPS SlotOpen pluggable specification (NEC / Intel OPS)
PortsHDMI In x 3, DisplayPort In x 2, DisplayPort Out x 1, USB 3.0 hub x 4, USB Type-B x 1, RS232 x 1, LAN 100 Mbit x 1, 3.5 mm audio in and out, OPS slot
Wi-Fi802.11ac dual band (Intel Wireless-AC 8260)
Power
Power Consumption167 W (shipping setting)
Standby Power< 0.5 W (power saving); < 2 W (networked standby)
Physical
Dimensions1944.6 x 1003 x 86 mm (without stand)
Duty Cycle24/7
Operating Humidity20% to 80% RH
Operating Temperature0 to 35 °C
VESA Mount400 x 400 mm and 600 x 400 mm (FDMI), M8
Weight80.3 kg
Compliance
CertificationsCE, EAC, EMC Class B, FCC, RCM, REACH, RoHS, UL/C-UL
IP RatingIP5x (front), IP2x (back)
Warranty3 years including backlight; optional 4th and 5th year extension
Downloads
Manufacturer documents for the NEC InfinityBoard 2.1 QL 75-inch Interactive Flat Panel — datasheets, manuals, drawings and certificates.
- Datasheet – 75-inch InfinityBoard 2.1 QL
- Brochure – NEC (covers 64 models)
- Brochure – NEC (covers 96 models)
- User manual – InfinityBoard
- Drawing – InfinityBoard
- Drawing – InfinityBoard
- Certificate / compliance – InfinityBoard
- Certificate / compliance – InfinityBoard
- Certificate / compliance – InfinityBoard
Questions
Can’t find your answer? Ask on WhatsApp
What is Quicklaunch on the 75-inch InfinityBoard 2.1 QL?
According to the manufacturer, Quicklaunch is a simple and secure meeting room interface that provides multi-platform integration and turns the display into a one-click meeting space. It is the feature that separates the QL version from the standard 2.1 model.
What room size suits the 75-inch InfinityBoard 2.1 QL?
The manufacturer positions the 75-inch model for meetings with multiple presenters, large groups and remote participants. Its 16:9 screen measures 1944.6 x 1003 x 86 mm without stand and weighs 80.3 kg, so confirm the wall or trolley load before installation.
Can it run my video conferencing software?
Yes. The OPS slot-in PC runs Windows 10 Professional, and the open platform is not restricted to any particular software, video conferencing app or infrastructure. Mosaic Connect software is included with the display.
Can it be wall mounted, and which VESA pattern does it use?
Yes. It supports 400 x 400 mm and 600 x 400 mm FDMI patterns with M8 holes. The manufacturer lists BalanceBox 400 HEAVY and PDW T XL-2 wall mounts for this model, and Procure.ae delivers and installs across the UAE.
What camera and speakers are included?
It includes a Huddly IQ video conferencing camera with 1080p output at 30 fps and digital pan, tilt and zoom, plus side-mounted speakers with a frequency response of 70 Hz to 15 kHz. The manufacturer notes that the Huddly IQ camera has no microphone.
