NECInteractive Flat PanelsSKU 65-inch InfinityBoard 2.1 QL

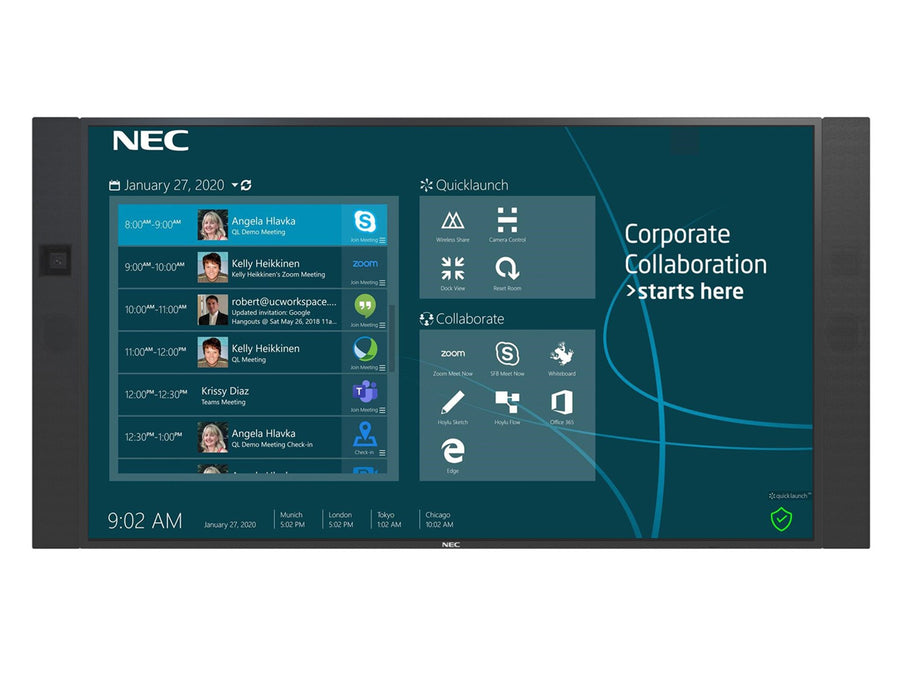

NEC InfinityBoard 2.1 65-inch Interactive Flat Panel – QL
The NEC InfinityBoard 2.1 QL is a 65-inch 4K UHD interactive flat panel for meeting rooms and collaboration spaces. It combines an InGlass touch display with 20-point multi-touch, an integrated Huddly IQ camera and an open OPS slot for a Windows PC. Procure.ae supplies the InfinityBoard 2.1 QL in the UAE.
The InfinityBoard 2.1 QL uses a 65-inch InGlass touch display with a 3840 x 2160 native resolution and 4000:1 typical contrast. Brightness is rated at 500 cd/m², or 350 cd/m² at the shipment setting. It supports real multi-touch up to 20 touches with finger, glove and stylus input at 2 mm or larger, and ships with two passive pens. The built-in Huddly IQ camera records 1080p at 30 fps with a 150° diagonal field of view for video conferencing.
The InfinityBoard suits huddle rooms, boardrooms and training spaces where teams present, annotate and join video calls on one screen. The shipping content includes an OPS slot-in PC running Windows 10 Professional, with an Intel Core i7 processor, 16 GB RAM and 256 GB SSD. Quicklaunch gives one-click access to meetings across several video platforms, and LAN, RS232 and remote control options allow room management.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Touch Technology
InGlass
- InGlass touch display
- Pen and finger input
- Huddly IQ camera
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
InGlass touch display
65-inch 4K UHD panel with real multi-touch up to 20 touches.
02
Pen and finger input
Finger, glove and stylus input, with two passive pens included.
03
Huddly IQ camera
Ultra-wide camera with 1080p at 30 fps and a 150° diagonal field of view.
04
OPS slot-in PC
Open pluggable slot with a Windows 10 Professional PC supplied in the box.
05
Quicklaunch meeting interface
One-click meeting access with multi-platform integration.
06
Connectivity and control
Two DisplayPort and three HDMI inputs, LAN 100 Mbit and RS232.
07
VESA mounting
400 x 400 mm and 600 x 400 mm patterns for wall mount or trolley use.
08
Warranty cover
3 years including backlight, with optional fourth and fifth year extensions.
Specifications
39 specificationsGeneral
Key Features20-point multi-touch, InGlass touch, 4K UHD, OPS slot-in PC, Huddly IQ camera, Quicklaunch meeting interface
Model65-inch InfinityBoard 2.1 QL
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
Bezel Size18.5 mm (all sides)
Brightness500 nits
CameraHuddly IQ, 1080p at 30 fps, 150° diagonal field of view
Color Depth10-bit (1.073 billion colours)
Contrast Ratio4,000:1
Panel TechnologyVA
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size65 inch
Touch Accuracy< 1 mm
Touch Points20-point multi-touch
Touch Response Time≤ 15 ms
Touch TechnologyInGlass
Viewing Angle178° horizontal / 178° vertical
Performance
GraphicsIntel HD Graphics 630
Operating SystemMicrosoft Windows 10 Professional (built-in PC)
ProcessorIntel Core i7, 4 cores, 3 GHz (8 MB cache)
RAM16 GB
Storage256 GB SATA SSD
Audio
AudioSide-mounted speakers, 82.1 dB sound pressure level
Connectivity
BluetoothBluetooth 4.2
OPS SlotOpen pluggable specification (NEC / Intel OPS)
PortsHDMI In × 3, DisplayPort In × 2, USB 3.0 × 4, LAN × 1, RS232 × 1, microSD × 1
Wi-FiIntel Dual Band Wireless-AC 8260, 802.11ac
Power
Power Consumption242 W (eco setting)
Standby Power< 0.5 W; < 2 W (networked standby)
Physical
Dimensions1721.3 x 897 x 86 mm (without stand)
Duty Cycle24/7
Operating Humidity20% to 80% RH
Operating Temperature0 to 35 °C
VESA Mount400 x 400 mm; 600 x 400 mm
Weight64.4 kg
Compliance
CertificationsCE, EAC, EMC Class B, FCC, RCM, REACH, RoHS, UL/C-UL
IP RatingIP5x (front); IP2x (back)
Warranty3 years (including backlight)
Downloads
Manufacturer documents for the NEC InfinityBoard 2.1 65-inch Interactive Flat Panel – QL — datasheets, manuals, drawings and certificates.
- Datasheet – InfinityBoard – 65-inch InfinityBoard 2.1 QL Datasheet
- User manual – InfinityBoard
- Brochure – NEC (covers 64 models)
- Drawing – InfinityBoard – NEC drawing V654Q IGB
- Brochure – NEC (covers 96 models)
- DoC SEAS-NEC SP-65IBSM
- EEI V654Q-IGB
- NEC 65 InfinityBoard 2.0 outlines
- NEC DoC 65-InfinityBoard-2.0
- Certificate / compliance – InfinityBoard
Questions
Can’t find your answer? Ask on WhatsApp
Does the InfinityBoard 2.1 QL run Windows?
Yes. The shipping content includes an OPS slot-in PC running Windows 10 Professional. The panel's native multi-touch also supports Windows 7 to 11, Linux and Android, and the OPS slot accepts a slot-in PC for use with the display.
What room size suits the 65-inch InfinityBoard 2.1 QL?
The manufacturer's specifications do not state a room size. The 65-inch 4K panel, 20-point touch and integrated camera and speakers suit small to medium meeting rooms and huddle spaces where several people write, present and join video calls at one screen.
Can the InfinityBoard 2.1 QL be wall mounted?
Yes. It has VESA patterns of 400 x 400 mm and 600 x 400 mm with M8 fixing holes, so a compatible wall mount can be used. The manufacturer also lists a trolley option. Procure.ae can arrange installation across the UAE, including load and fixing checks.
Does it work with video conferencing platforms?
Yes. The open OPS slot and Quicklaunch interface let the slot-in PC run the video conferencing apps it supports. The Huddly IQ camera uses a driverless plug-and-play install, and Mosaic Connect is listed as free software included with the display.
What connections does it have?
It has two DisplayPort and three HDMI inputs with HDCP, a DisplayPort loop-through output, LAN 100 Mbit, RS232, a remote control jack, a microSD slot and USB ports, including a USB hub with four USB 3.0 ports.
Can I buy the InfinityBoard 2.1 QL in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
