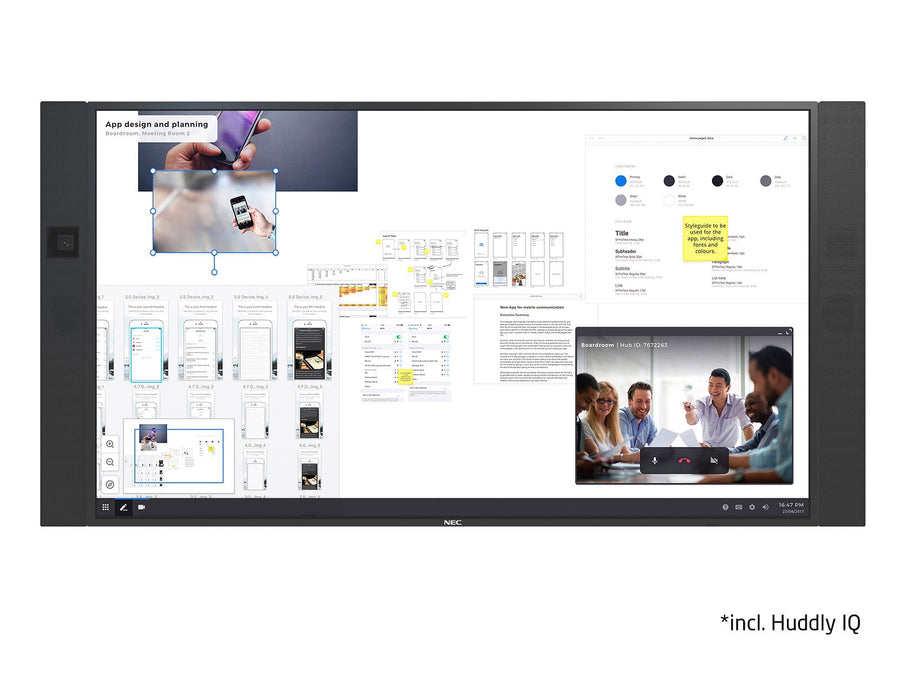

NEC 65-inch InfinityBoard 2.1 interactive flat panel

NEC

Interactive Flat PanelsSKU 65-inch InfinityBoard 2.1

NEC InfinityBoard 2.1 65-inch Interactive Flat Panel

Name: NEC InfinityBoard 2.1 65-inch Interactive Flat Panel
Brand: NEC
SKU: 65-inch InfinityBoard 2.1
Availability: InStock

The NEC 65-inch InfinityBoard 2.1 is a discontinued interactive flat panel for meeting spaces, with a 3840 x 2160 (4K UHD) InGlass touch display, 20-point multi-touch and a Huddly IQ camera. Procure.ae can confirm current availability in the UAE or recommend a current model.

The InfinityBoard 2.1 pairs a 65-inch 4K UHD VA panel with 500 nits brightness, a 4,000:1 typical contrast ratio and a 178° viewing angle. Its InGlass touch supports real multi-touch of up to 20 touches with under 1 mm accuracy, using finger, glove or stylus input of 2 mm or more. The Huddly IQ camera outputs HD 1080p at 30 fps with 3x lossless digital zoom and Genius Framing, and a four-port USB 3.0 hub connects peripherals.

According to the manufacturer's text, the InfinityBoard 2.1 combines video chat, wireless presentation and content collaboration in one unit. Its OPS slot-in PC runs Windows 10 Professional on an Intel Core i7 processor with 8 GB RAM and a 128 GB SSD, and a compute module slot accepts NEC Compute Module or Raspberry Pi Compute Module 1 and 3. Compared with the 2.0 model, the 2.1 lists HD 1080p camera output, Genius Framing and Mosaic Connect software.

Screen Size

65 inch

Resolution

3840 x 2160 (4K UHD)

Brightness

500 nits

Touch Technology

InGlass

4K UHD display
20-point multi-touch
Huddly IQ camera

Price

On request · best price

WhatsApp Call

Download spec sheet (PDF) Manufacturer datasheet (PDF)

Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond

Manufacturer warrantyBacked by the brand

InstallationArranged on request

Key features

4K UHD display

65-inch 3840 x 2160 VA panel with 500 nits brightness and 4,000:1 contrast.

20-point multi-touch

Real multi-touch of up to 20 touches on an InGlass surface, with under 1 mm accuracy.

Huddly IQ camera

Ultra-wide angle camera with HD 1080p output at 30 fps and 3x digital zoom.

Genius Framing

Camera framing listed in the software specification, alongside 3D noise reduction.

Mosaic Connect software

Free software included with the display.

OPS slot-in PC

Intel Core i7 PC with Windows 10 Professional, 8 GB RAM and 128 GB storage.

Compute module slot

Accepts the NEC Compute Module and Raspberry Pi Compute Module 1 and 3.

Four USB 3.0 ports

A built-in USB 3.0 hub for connecting peripherals.

Specifications

41 specifications

General

Key Features20-point multi-touch, InGlass touch, Huddly IQ camera, Genius Framing, Mosaic Connect software, OPS slot-in PC, compute module slot, four USB 3.0 ports

Model65-inch InfinityBoard 2.1

TypeInteractive Flat Panel

What's in the BoxDisplay, OPS slot-in PC, Huddly IQ camera, side-mounted speakers, 2 styluses, remote control, DisplayPort cable, power cable, USB cables, cable clamps

Display

Aspect Ratio16:9

Bezel Size18.5 mm

Brightness500 nits

CameraHuddly IQ (no microphone), HD 1080p at 30 fps, 3x digital zoom

Color Depth10-bit (1.07 billion colours)

Contrast Ratio4,000:1

Panel TechnologyVA

Resolution3840 x 2160 (4K UHD)

Response Time8 ms

Screen Size65 inch

Touch Accuracy< 1 mm

Touch Points20-point multi-touch

Touch Response Time≤ 15 ms

Touch TechnologyInGlass

Viewing Angle178° horizontal / 178° vertical

Performance

GraphicsIntel HD Graphics 630

LicenseMosaic Connect software included

Operating SystemWindows 10 Professional (OPS PC); native touch on Windows 7-11, Linux, Android

ProcessorIntel Core i7, 4 cores, 3 GHz (8 MB cache)

RAM8 GB

Storage128 GB

Audio

Speaker TypeSide-mounted

Connectivity

BluetoothBluetooth 4.2

OPS SlotOpen Pluggable Specification (OPS) slot

PortsHDMI In × 3, DisplayPort In × 2, DisplayPort Out × 1, USB 3.0 × 4 hub, USB Type-B upstream, LAN 100 Mbit, RS232

Wi-FiDual-band 802.11ac

Power

Power Consumption242 W (Eco setting)

Standby Power< 0.5 W (standby); < 2 W (networked standby)

Physical

Dimensions1721.3 x 897 x 86 mm (without stand)

Duty Cycle24/7

Operating Humidity20% to 80% RH

Operating Temperature0 to 35 °C

VESA Mount400 x 400 mm; 600 x 400 mm

Weight64.4 kg

Compliance

CertificationsCE, EAC, EMC Class B, FCC, RCM, REACH, RoHS, UL/C-UL

IP RatingIP5x (front); IP2x (back)

Warranty3 years (incl. backlight)

Downloads

Manufacturer documents for the NEC InfinityBoard 2.1 65-inch Interactive Flat Panel — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

Is the NEC 65-inch InfinityBoard 2.1 discontinued?

Yes. The manufacturer lists the 65-inch InfinityBoard 2.1 as discontinued. Procure.ae can recommend a current model for a similar meeting-room setup. Quotes are available on request via WhatsApp or email.

Does the Huddly IQ camera include a microphone?

No. The manufacturer lists the Huddly IQ camera as having no microphone. Procure.ae can confirm the audio setup for your room before quoting. Procure.ae can advise on the camera and speaker layout for a specific room.

Does the InfinityBoard 2.1 run Windows applications?

Yes. The OPS slot-in PC runs Windows 10 Professional on an Intel Core i7 processor, with 8 GB RAM and 128 GB storage. The panel's native multi-touch also works with Windows 7 to 11, Linux and Android.

Can the InfinityBoard 2.1 be wall mounted?

Yes. The manufacturer lists VESA mounting of 400 x 400 mm and 600 x 400 mm with M8 fixings, and a wall mount is among its accessories. Installation is available across the UAE from Procure.ae.

How does the 2.1 differ from the 2.0?

The 2.1 lists HD 1080p camera output, Genius Framing and Mosaic Connect software, while the 2.0 lists HD 720p camera output. Both share the 65-inch 4K InGlass display and OPS slot-in PC.
