NearityMeeting Room SolutionsSKU Nearity-AW-V520D

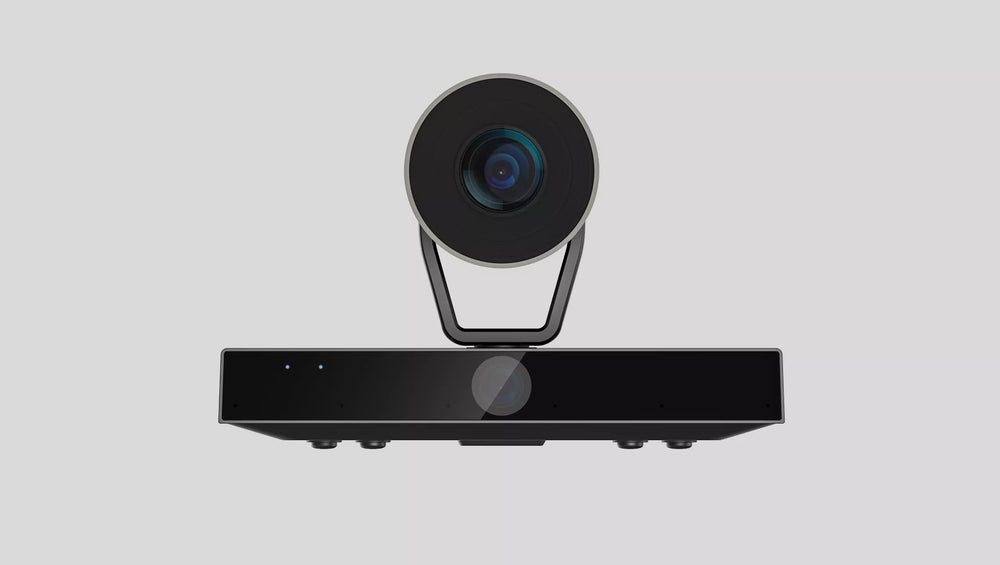

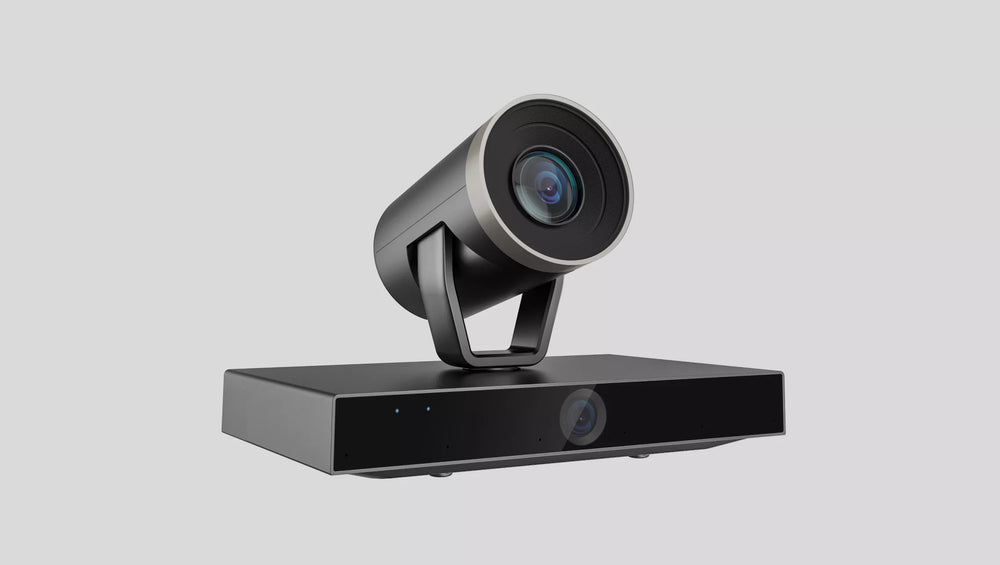

Nearity V520D Dual-Lens PTZ Conference Camera
The Nearity V520D is a dual-lens PTZ conference camera built for large meeting rooms and lecture spaces, available from Procure.ae in the UAE.
The V520D pairs a 5MP Sony CMOS PTZ lens with a wide 2MP panoramic lens, letting one camera cover the full room while zooming in on active speakers. Its built-in microphone array drives speaker tracking, zone following and auto-framing, automatically following whoever is talking without needing a dedicated camera operator in the room.
It suits large meeting rooms, auditoriums and classrooms that need automatic, hands-off camera work during hybrid sessions. The V520D outputs over HDMI, USB and SDI, and works with common conferencing platforms such as Zoom, Skype and Google Meet as well as recording and streaming setups, with Procure.ae able to supply and help install it across the UAE and GCC.
Resolution
1920 x 1080 (Full HD)
Type
PTZ Conference Camera
Weight
1.06 kg
- Dual-lens design
- Combined 20x zoom
- Speaker tracking and auto-framing
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Dual-lens design
A 5MP PTZ lens for close-ups plus a wide panoramic lens for full-room coverage
02
Combined 20x zoom
10x optical zoom plus 2x digital zoom on the PTZ lens
03
Speaker tracking and auto-framing
Microphone array follows the active speaker automatically
04
1080P video output
Clear video at up to 30fps over HDMI, USB or SDI
05
Broad platform support
Works with Zoom, Skype, Google Meet, GoToMeeting and other conferencing tools
06
Flexible mounting
TV bracket, wall mount, tripod or desktop placement
07
Multiple video interfaces
Simultaneous HDMI, USB 2.0 Type-B/C and SDI output
Specifications
18 specificationsGeneral
CompatibilityYes (Zoom, Skype and other platforms)
Key FeaturesSpeaker tracking, zone following, auto-framing, 1080P up to 30fps (H.264/MJPEG), TV bracket, wall bracket, desktop or tripod mounting
ModelV520D
TypePTZ Conference Camera
What's in the BoxCamera, USB cable (B to A), power adapter, remote control, user manual
Display
Camera5 MP Sony CMOS PTZ (F/1.8-2.6); 2 MP panoramic (1/2.9-inch, F/1.8)
Resolution1920 x 1080 (Full HD)
Zoom10x optical, 2x digital
Connectivity
ConnectivityHDMI, USB-B 2.0/C, SDI, RJ45, RS-232/RS-485, 3.5 mm audio in/out
Physical
ColorDark grey
MountingTV bracket, wall bracket
Weight1.06 kg
Additional specifications
PTZ sensor5MP Sony CMOS, F/1.8-2.6
Panoramic sensor2MP, 1/2.9-inch CMOS, F/1.8
Video output1080P up to 30fps (H.264/MJPEG)
Field of viewPTZ 80 degrees diagonal; panoramic 120 degrees diagonal
TrackingSpeaker tracking, zone following, auto-framing (one active at a time)
InterfacesHDMI out, USB 2.0 Type-B/C, SDI, RJ45, RS232/RS485, 3.5mm audio in/out
Downloads
Manufacturer documents for the Nearity V520D Dual-Lens PTZ Conference Camera — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Which video conferencing platforms does the V520D work with?
It outputs standard USB and HDMI video, making it compatible with Zoom, Skype, Google Meet, GoToMeeting and most other conferencing software, as well as recording and streaming platforms.
Does it need an external microphone for speaker tracking?
No, it uses a built-in microphone array to detect and track the active speaker, along with zone-following and auto-framing modes.
Can I use the panoramic and PTZ views at the same time?
Both lenses are built into the camera, but the tracking modes (speaker tracking, zone following, auto-framing) operate one at a time rather than simultaneously.
How is the camera mounted in a meeting room?
It supports TV bracket, wall bracket, tripod and desktop mounting, giving flexibility for different room layouts.
What support does Procure.ae provide for installation?
Request a quote: WhatsApp wa.me/97145465041 or email info@procure.ae.
