Nearity A20 Daisy-Chain USB Conference Speakerphone – A20

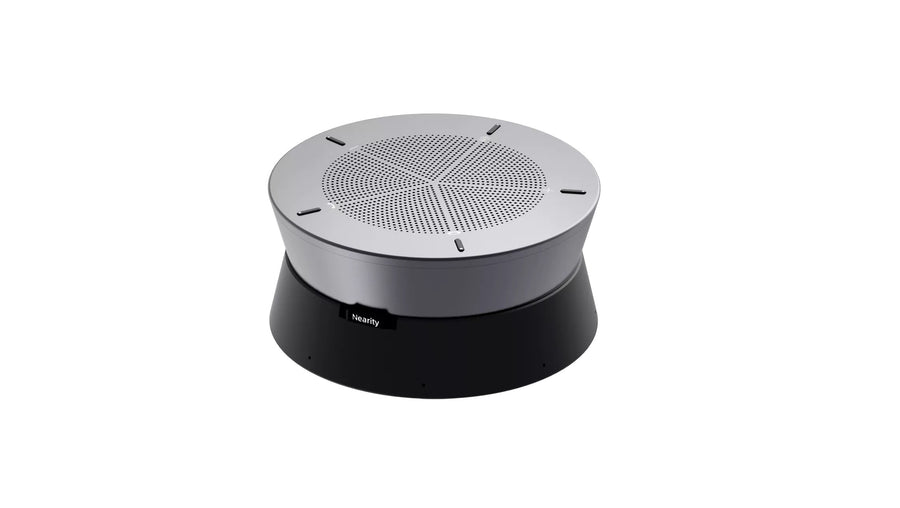

The Nearity A20 is a USB conference speakerphone with an 8-element MEMS microphone array, 5 m (16 ft) pickup and a daisy-chain port that links up to 5 units over PoE. It is designed for small and mid-sized meeting rooms. This is a legacy model, and Procure.ae can confirm availability in the UAE.
The Nearity A20 SpeakerMic (manual model AW-A20) combines eight MEMS microphones, beamforming and noise suppression with echo cancellation, reverberation suppression and automatic gain control for full-duplex calls. Voices are picked up within 5 m (16 ft). The built-in speaker covers 155 Hz to 16 kHz with a rated output of 1.5 W at 4 Ω. Noise reduction, de-reverberation and echo cancellation parameters can be adjusted to suit each room.
Up to five A20 units can be daisy-chained over Cat6 UTP RJ45 with PoE to cover larger rooms, and the manual shows the previous unit in the chain can also be a Nearity C30R. A unit connects to a computer through USB 2.0 Type-C and is powered by a DC 48 V / 0.6 A adapter or USB 5 V / 0.5 A. It works with Windows, macOS and Linux and is listed as a legacy model.
Type
Daisy-chain USB Conference Speakerp...
Weight
544 g
- 8-mic MEMS array
- Daisy-chain expansion
- Full-duplex audio
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
8-mic MEMS array
Eight omnidirectional MEMS microphones provide an effective pickup distance of 5 m (16 ft).
02
Daisy-chain expansion
Up to 5 units connect in a combined array using RJ45 Cat6 cabling with PoE.
03
Full-duplex audio
Echo cancellation, reverberation suppression and AGC let both ends speak at once.
04
Adjustable audio settings
Noise reduction, de-reverberation and echo cancellation can be tuned for each room.
05
Built-in speaker
The speaker covers 155 Hz to 16 kHz with THD below 3% and 80 ± 3 dB output at 1 m.
06
Flexible power
A DC 48 V / 0.6 A adapter or USB 5 V / 0.5 A supplies power.
07
USB plug and play
A USB 2.0 Type-C connection works with Windows, macOS and Linux.
Specifications
26 specificationsGeneral
CompatibilityWindows, macOS, Linux
ControlsVolume up/down, mute, answer/end call (software dependent), reset button
Key Features8 MEMS microphone array, 5 m pickup, daisy-chain up to 5 units, PoE, full-duplex, adjustable audio settings, USB-C
ModelA20
TypeDaisy-chain USB Conference Speakerphone (SpeakerMic)
What's in the BoxA20 unit, USB cable (3 m), Cat6 Ethernet cable, power adapter, user manual, warranty card
Audio
AudioBeamforming, noise suppression, full-duplex, echo cancellation, AGC, reverberation suppression
EQAdjustable noise reduction, de-reverberation and echo cancellation parameters
Frequency Response155 Hz to 16 kHz (speaker)
Max SPL80 ± 3 dB @ 1 m (speaker volume)
Microphone Type8-element MEMS omnidirectional array
Pickup Range5 m (16 ft)
Polar PatternOmnidirectional
Power Output1.5 W (4 Ω rated output)
Sensitivity-26 dBFS (94 dB SPL @ 1 kHz)
Signal-to-Noise Ratio65 dBA (20 kHz bandwidth, A-weighted)
THD< 3%
Connectivity
ConnectivityUSB 2.0 Type-C, RJ45 (PoE)
EthernetRJ45 × 2 (PoE in, PoE out)
ExpansionDaisy-chain up to 5 units
PoEPoE in and out via RJ45 (Cat6 UTP) for daisy-chain
USB-C PortsUSB-C × 1
Power
Power SourceDC 48 V / 0.6 A adapter or USB 5 V / 0.5 A
Physical
ColorGalaxy Gray
Dimensions120 x 64 x 120 mm
Weight544 g
Downloads
Manufacturer documents for the Nearity A20 Daisy-Chain USB Conference Speakerphone – A20 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
How many Nearity A20 units can be daisy-chained?
Up to five A20 units can be daisy-chained into one combined array for larger or more complex rooms. Units connect over Cat6 UTP RJ45 with PoE, using the PoE output on one unit and the PoE input on the next.
What is the pickup range of the Nearity A20?
A single A20 has an effective pickup distance of 5 m (16 ft) from its 8-element MEMS microphone array. Daisy-chaining more A20 units extends coverage for larger rooms, up to five units in total.
How is the Nearity A20 powered and connected?
The A20 connects to a computer through USB 2.0 Type-C. Power comes from a DC 48 V / 0.6 A adapter, which is listed in the package, or from USB 5 V / 0.5 A. A Cat6 Ethernet cable is also included for daisy-chaining.
Can the A20 audio be adjusted for different rooms?
Yes. The manufacturer states that noise reduction, de-reverberation and echo cancellation parameters can be adjusted to suit each conference room. This helps tune the sound in rooms with different acoustics, from small offices to larger meeting spaces.
Which platforms does the Nearity A20 work with?
It is plug and play over USB with Windows, macOS and Linux, and the manufacturer describes it as compatible with leading unified communications platforms. The call answer and end keys depend on the specific video conferencing software.
