VSYS VTLX18H-610TW Motorised Height-Adjustable TV Cart for 55"–100" Displays, 120 kg
- Model: VTLX18H-610TW
- SKU: VTLX18H-610TW
Actual Stock & Price Can Be Confirmed After Placing the Order.
The VSYS VTLX18H-610TW is a motorised height-adjustable display cart for 55"–100" screens up to 120 kg, driven by a powered column with button and remote control, available in the UAE from Procure.ae. A manually pinned column is fine when a display height is set... See More
The VSYS VTLX18H-610TW is a motorised height-adjustable display cart for 55"–100" screens up to 120 kg, driven by a powered column with button and remote control, available in the UAE from Procure.ae.
A manually pinned column is fine when a display height is set once and left alone. It is a problem in rooms that switch between seated boardroom use, standing workshops and wheelchair-height access several times a day, because changing height on a 100 kg panel is a two-person lift with the screen unbolted. The VTLX18H-610TW replaces that operation with a powered column, so the height that suits the audience is actually used rather than avoided.
An electric lift moves the display through a 1200 mm to 1650 mm range, triggered either by the button unit on the cart or by the supplied RF remote from across the room. The bracket adds toolless tilt from plus 5 to minus 10 degrees, and covers VESA patterns from 200x200 mm up to 1000x600 mm. A height-adjustable camera shelf sits above the panel for a conferencing bar, and a separate 5 kg equipment shelf carries a source device. Locking casters take the cart between rooms.
It is supplied to corporate, education, hospitality and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Key Features
- Motorised lift across a 1200 mm to 1650 mm range, so display height changes without unbolting the panel or lifting it by hand.
- Dual control: a button unit on the cart for the presenter at the screen, plus an RF remote for adjustment from the room.
- Rated for displays up to 120 kg on a heavy-duty steel frame, covering the large-format panel class.
- VESA support from 200x200 mm to 1000x600 mm, including the wide hole spacing used on 98 and 100 inch panels.
- Toolless tilt from plus 5 to minus 10 degrees corrects glare once the working height is set.
- Height-adjustable camera shelf mounts a conferencing bar above the display and on its centre line.
- Separate height-adjustable equipment shelf rated to 5 kg for a media player, codec or small PC.
- Locking casters let one cart serve several rooms, each with a different preferred screen height.
- Free-standing operation with no wall or floor fixing, which suits leased offices and glazed meeting rooms.
- Powered adjustment also supports accessible viewing heights for seated and wheelchair users in shared spaces.
Technical Specifications
| Display size range | 55" to 100" |
| Display weight capacity | Up to 120 kg |
| Equipment shelf capacity | 5 kg |
| VESA compatibility | 200x200 mm to 1000x600 mm |
| Height adjustment | Motorised lift, 1200 mm to 1650 mm |
| Controls | Button control unit and RF remote control |
| Tilt | Plus 5 to minus 10 degrees, toolless |
| Material | Heavy-duty steel construction |
| Mobility | Locking casters |
| In the box | Motorised steel column, TV bracket, RF remote, button control unit, height-adjustable equipment shelf, height-adjustable camera shelf, caster base, mounting hardware, assembly guide |
Ideal for: hybrid boardrooms and video-conference suites, corporate training and workshop rooms, university seminar and flipped-classroom spaces, hotel meeting and event floors, accessible or inclusive-design meeting rooms, and government briefing facilities across Dubai, Abu Dhabi, Sharjah and the wider GCC.
| Name | VSYS VTLX18H-610TW Motorised Height-Adjustable TV Cart for 55"–100" Displays, 120 kg |
| Height Adjustment Type | Motorised electric column with button control unit and RF remote |
| Mounting Type | Free-standing mobile cart on locking casters |
| Screen Size Support | 55 inch to 100 inch |
| Product Type | Motorised height-adjustable mobile TV cart |
| Screen Size Range | 55 inch to 100 inch |
| Load Capacity | 120 kg display, 5 kg equipment shelf |
| VESA Compatibility | 200x200mm to 1000x600mm |
| Movement | Motorised height lift 1200mm to 1650mm, toolless tilt plus 5 to minus 10 degrees |
| Tilt | Plus 5 to minus 10 degrees, toolless |
| Height Range | 1200mm to 1650mm |
| Material and Finish | Heavy-duty steel construction |
| Mounting Interface | VESA bracket, 200x200mm to 1000x600mm |
| Shelves | Height-adjustable equipment shelf 5 kg and height-adjustable camera shelf |
| Mobility | Locking casters |
| In the Box | Motorised steel column, TV bracket, RF remote, button control unit, equipment shelf, camera shelf, caster base, mounting hardware, assembly guide |
| MPN | VTLX18H-610TW |
| Model | VTLX18H-610TW |
No datasheet available.
Frequently Asked Questions
Where can I buy the VSYS VTLX18H-610TW in the UAE?
Procure.ae supplies the VSYS VTLX18H-610TW across the UAE, with delivery to Dubai, Abu Dhabi, Sharjah and the wider GCC and procurement-ready quotations for project quantities.
How does the motorised height adjustment work?

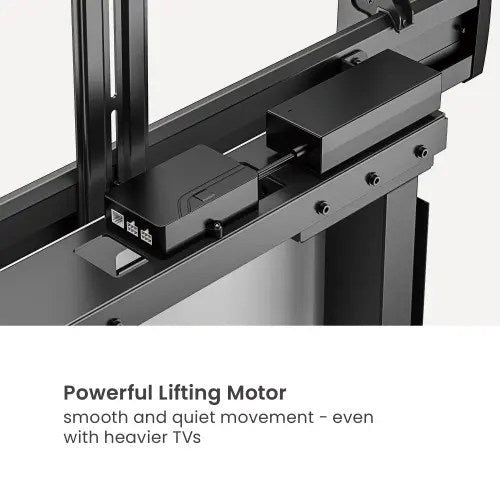

An electric column raises and lowers the display anywhere between 1200 mm and 1650 mm. You can drive it from the button control unit mounted on the cart, or from the supplied RF remote, so the screen never needs to be lifted or re-bolted to change height.
What display sizes and weights does it take?
Screens from 55" to 100" weighing up to 120 kg, with VESA mounting patterns from 200x200 mm through to 1000x600 mm. Check your panel's weight and VESA pattern on its specification sheet before ordering.
Can it tilt as well as change height?

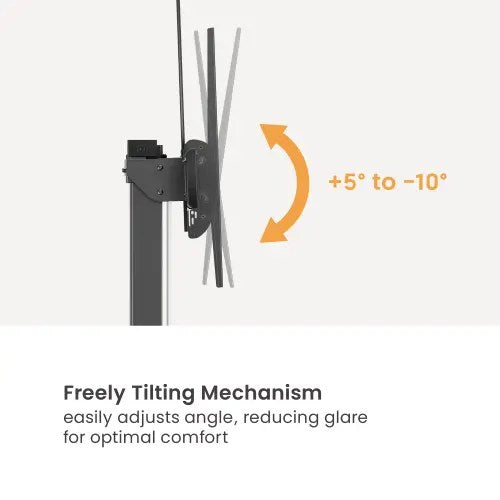

Yes. The bracket provides toolless tilt from plus 5 to minus 10 degrees, which is enough to clear reflections from ceiling lighting once the cart is parked and set to working height.
Does it have a shelf for a conferencing camera?
Yes. A height-adjustable camera shelf mounts above the display for a conferencing bar or PTZ camera, and there is a separate height-adjustable equipment shelf rated to 5 kg for a media player or codec.
