MAXHUBMeeting Room SolutionsSKU Mobile Stand
MAXHUB Mobile Stand for 55 to 86-inch Interactive Flat Panels – ST33M

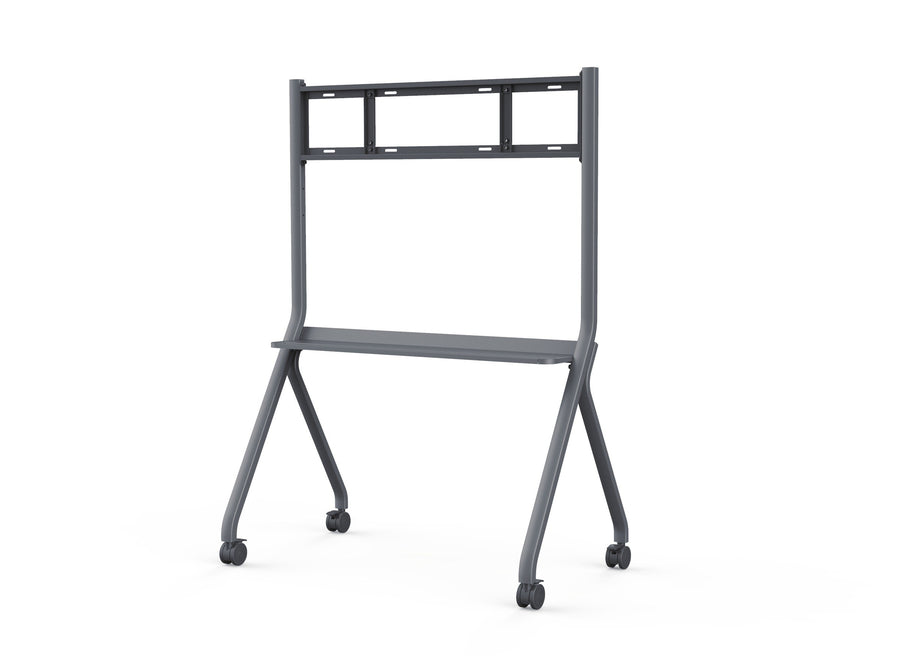

The MAXHUB Mobile Stand ST33M is a height-adjustable floor stand for 55 to 86-inch interactive flat panels, with a 100 kg load capacity and silent 3-inch casters. It has an 800 × 600 mm VESA hole pitch. Procure.ae supplies the ST33M in the UAE.
The ST33M measures 1160 × 661 × 1597 mm and weighs 15.7 kg net. It is finished in grey and rolls on four 3-inch silent casters that lock with brakes. The installation guide recommends it for 55 to 86-inch panels, with different screw-hole positions for 55-inch, 65 to 70-inch and 75 to 86-inch screens. Two people are needed to hang the panel, and the guide says to lock the brakes first.
The ST33M is listed as an optional mobile stand for the MAXHUB E3 Series. Its matching wall mounts are the WIB6540A, WIB9040A, WIB9060F and WIB9060G, and the package includes a wall mount bracket, screw pack and installation guide. A display bracket is not included. It lets one panel move between classrooms or meeting rooms.
Type
Mobile Floor Stand
Weight
15.7 kg
- Wide size range
- 100 kg capacity
- Silent casters
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Wide size range
supports 55 to 86-inch interactive flat panels.
02
100 kg capacity
maximum load is 100 kg on a stand weighing 15.7 kg.
03
Silent casters
four 3-inch silent casters with a brake state for locking.
04
Adjustable height
the stand overview shows an adjustable-height column.
05
VESA 800 × 600
hole pitch of 800 × 600 mm with matching wall mount options.
Specifications
19 specificationsGeneral
ApplicationMobile mounting of interactive flat panels
CompatibilityWall mounts WIB6540A, WIB9040A, WIB9060F, WIB9060G
Key Features55–86 inch panels, 100 kg load capacity, silent 3-inch casters with brakes, adjustable height, grey finish
ModelMobile Stand
TypeMobile Floor Stand
What's in the BoxScrew accessory package, installation guide, wall mount bracket
Display
Supported Screen Sizes55 to 86 inch
Performance
Storage Conditions-20 to 40 °C, 10% to 90% RH
Physical
AdjustabilityHeight adjustable
ColorGrey
Dimensions1160 x 661 x 1597 mm (L x W x H)
Load Capacity100 kg
MountingFloor stand with wall mount bracket for the panel
Operating Humidity10% to 90% RH
Operating Temperature0 to 40 °C
Shipping Dimensions1630 x 755 x 160 mm
Shipping Weight17.8 kg
VESA Mount800 x 600 mm
Weight15.7 kg
Downloads
Manufacturer documents for the MAXHUB Mobile Stand for 55 to 86-inch Interactive Flat Panels – ST33M — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What screen sizes does the MAXHUB ST33M mobile stand support?
The ST33M supports 55 to 86-inch interactive flat panels with a maximum load of 100 kg. The VESA hole pitch is 800 × 600 mm. The installation guide gives separate screw-hole positions for 55-inch, 65 to 70-inch and 75 to 86-inch screens.
Does the ST33M have wheels?
Yes. It has four 3-inch silent casters that can be set to a brake state. The guide says to lock the brakes before hanging the panel. The stand is 1160 × 661 × 1597 mm and weighs 15.7 kg net.
How is a panel installed on the ST33M?
The panel is hung on the stand's wall mount, then the safety screw on the wall mount bracket is locked. MAXHUB says this step needs at least two people. If a panel's VESA bracket does not match, a second wall mount can be locked onto the original.
