MAXHUBInteractive Flat PanelsSKU F8650

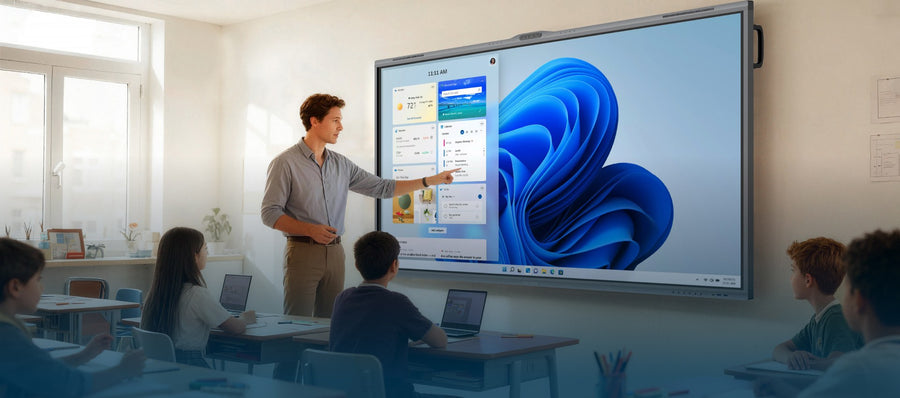

MAXHUB F5 Series 86-inch 4K Interactive Flat Panel – F8650
The MAXHUB F8650 is an 86-inch 4K UHD interactive flat panel for classrooms and hybrid learning. It has a 50-point infrared touch surface, an 8-microphone array and an Intel Core i5 PC module running Windows 11 Pro. Procure.ae supplies the MAXHUB F8650 across the UAE.
The F8650 combines a 3840 x 2160 panel with 400 nits typical brightness (450 nits maximum), a 5,500:1 typical contrast ratio and 98% sRGB colour gamut. Its infrared touch system registers 50 touch points with ±1.5 mm accuracy, and MAXHUB Think&Ink supports direct annotation. The built-in Intel Core i5 (13th Gen) module has 8 GB RAM and 256 GB storage. A five-camera multi-focus system, an 8-microphone array with 0-12 m pick-up range and 2.2-channel speakers support both in-room and remote participants.
The F8650 suits larger classrooms, lecture spaces and meeting rooms where one display handles teaching, content sharing and remote participants. Its HDMI 2.1 inputs, a USB Type-C port that carries video, audio, touch and LAN, and a Wi-Fi 6 module slot connect laptops and other sources. It mounts on an 800 x 600 mm VESA pattern and weighs 57.9 kg net. The 75-inch F7550 in the same series draws 100 W typical against the F8650's 130 W.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits typical, 450 nits maximum
Touch Technology
Infrared
- Infrared multi-touch
- Eye-care display
- Multi-focus camera system
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Infrared multi-touch
50 touch points, ±1.5 mm touch accuracy and writing height of 2 mm or less.
02
Eye-care display
TÜV Flicker Free and TÜV Low Blue Light certifications, with 9H tempered, 3 mm anti-glare glass.
03
Multi-focus camera system
five cameras, including a panorama camera with a 145° diagonal field of view.
04
8-microphone array
180° pick-up angle, 0-12 m pick-up range and AI noise cancellation.
05
2.2-channel speakers
2×8 W + 2×18 W output and 88 dB sound pressure level at 1 m.
06
Built-in Windows PC
Intel Core i5 (13th Gen), 8 GB RAM and 256 GB storage running Windows 11 Pro.
07
HDMI and USB-C connectivity
two HDMI 2.1 inputs at up to 4K at 60 Hz, one HDMI output, and a USB Type-C port for video, audio, touch and LAN.
08
Wi-Fi 6 and Bluetooth 5.2
Wi-Fi 6 (802.11ax) through the module slot on 2.4 GHz and 5 GHz, plus Bluetooth 5.2.
Specifications
45 specificationsGeneral
CompatibilityTouch return for Windows, Android, Linux, Mac OS and Chrome
Key FeaturesTÜV Flicker Free, TÜV Low Blue Light, 50-point touch, 8-microphone array, 2.2-channel speakers, Windows 11 Pro, five-camera system, Wi-Fi 6
ModelF8650
TypeInteractive Flat Panel
What's in the BoxHDMI cable (3 m), 2 styluses (SW30), 2 wall mount strips, wall mount plate (WIB9060H)
Display
Aspect Ratio16:9
BacklightDLED
Brightness400 nits typical, 450 nits maximum
Camera5 cameras: panorama, 2 telephoto, 2 fusion
Color Depth10-bit (1.07B colours)
Color Gamut98% sRGB
Contrast Ratio5,500:1 typical, 50,000:1 dynamic
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size86 inch
Touch Accuracy±1.5 mm
Touch Points50-point multi-touch
Touch Response Time≤5 ms
Touch TechnologyInfrared
Viewing Angle178° (H/V)
Performance
Operating SystemWindows 11 Pro
ProcessorIntel Core i5 (13th Gen) PC module
RAM8 GB
Storage256 GB
Audio
Microphone8-microphone array, 180° pick-up angle
Pickup Range0-12 m
Speaker Output2.2 channel, 2×8 W + 2×18 W output (2×12 W + 2×25 W maximum)
Connectivity
BluetoothBluetooth 5.2
ConnectivityHDMI 2.1 up to 4K@60 Hz, USB Type-C (video, audio, touch, LAN), RJ45
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI IN × 2, HDMI OUT × 1, USB 3.0 × 2, USB 2.0 × 3, USB Type-C × 1, RJ45 × 1, RS232 × 1, audio out × 1 (3.5 mm), mic in × 1 (3.5 mm)
Wi-FiWi-Fi 6 (802.11a/b/g/n/ac/ax), 2.4 GHz / 5 GHz, via module slot
Power
Power Consumption130 W (typical)
Standby Power≤ 0.5 W
Physical
Dimensions1957.5 x 1181.7 x 99.1 mm
Operating Humidity10% to 90% RH
Operating Temperature0 to 40 °C
Shipping Dimensions2110 x 1291 x 185 mm
Shipping Weight70.6 kg
Surface Protection9H tempered glass, 3 mm, anti-glare (25% haze)
VESA Mount800 x 600 mm
Weight57.9 kg
Compliance
CertificationsEnergy Star, TÜV Flicker Free, TÜV Low Blue Light
IP RatingIP5X (dust resistance)
Downloads
Manufacturer documents for the MAXHUB F5 Series 86-inch 4K Interactive Flat Panel – F8650 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the MAXHUB F8650 a 4K display?
Yes. The MAXHUB F8650 has a 3840 x 2160 (4K UHD) panel with a 16:9 aspect ratio, 10-bit colour depth, 98% sRGB colour gamut and colour accuracy of ΔE ≤1. The 86-inch screen is rated at 450 nits maximum brightness.
Does the MAXHUB F8650 include its own computer?
Yes. It includes an Intel Core i5 (13th Gen) PC module with 8 GB RAM and 256 GB storage, running Windows 11 Pro with MAXHUB EDU OS for Windows. Laptops and other sources can also connect through its HDMI and USB-C inputs.
What wall mount does the MAXHUB F8650 need?
The F8650 uses an 800 x 600 mm VESA pattern with M8 x 25 mm wall-hanging screws. Its net weight is 57.9 kg and its gross weight is 70.6 kg. The accessories include a WIB9060H wall mount plate and two wall mount strips, so check the bracket rating before installation.
Can the MAXHUB F8650 be used for remote and hybrid lessons?
Yes. The five-camera multi-focus system includes a panorama camera with a 145° field of view for wide room views. The 8-microphone array picks up voices from 0 to 12 m, with AI noise cancellation and echo cancellation, which suits hybrid learning with remote participants.
How do I connect a laptop to the MAXHUB F8650?
Use either of the two HDMI 2.1 inputs (up to 4K at 60 Hz) or the USB Type-C port, which carries video, audio, touch and LAN. Touch returns to the connected computer over USB, and the unit also has a 3.5 mm audio output.
