MAXHUBInteractive Flat PanelsSKU F7550
MAXHUB F5 Series 75-inch 4K Interactive Flat Panel – F7550

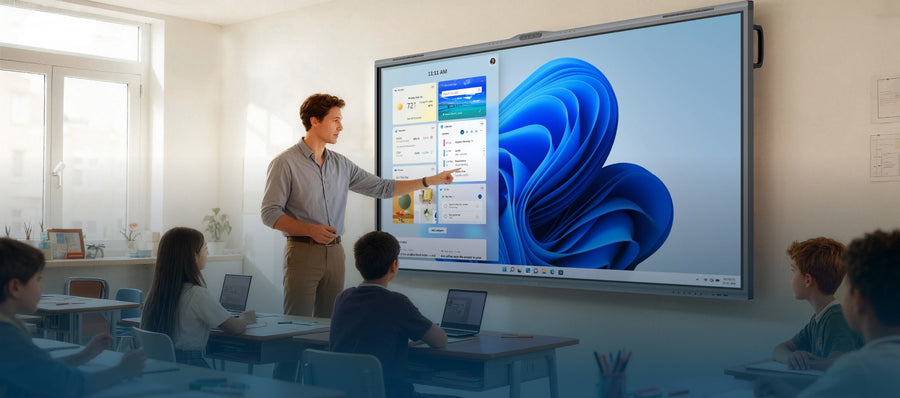

The MAXHUB F7550 is a 75-inch 4K UHD interactive flat panel for classrooms and hybrid learning. It has a 50-point infrared touch surface, an 8-microphone array and an Intel Core i5 PC module running Windows 11 Pro. Procure.ae supplies the MAXHUB F7550 across the UAE.
The F7550 combines a 3840 x 2160 panel with 400 nits typical brightness (450 nits maximum), a 5,500:1 typical contrast ratio and 98% sRGB colour gamut. Its infrared touch system registers 50 touch points with ±1.5 mm accuracy, and MAXHUB Think&Ink supports direct annotation. The built-in Intel Core i5 (13th Gen) module has 8 GB RAM and 256 GB storage. A five-camera multi-focus system, an 8-microphone array with 0-12 m pick-up range and 2.2-channel speakers support both in-room and remote participants.
The F7550 suits classrooms, hybrid learning rooms and meeting rooms where one display handles teaching, content sharing and remote participants. Its HDMI 2.1 inputs, a USB Type-C port that carries video, audio, touch and LAN, and a Wi-Fi 6 module slot connect laptops and other sources. It mounts on an 800 x 400 mm VESA pattern. The 86-inch F8650 in the same F5 Series is the larger option, drawing 130 W typical against the F7550's 100 W.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits typical, 450 nits maximum
Touch Technology
Infrared
- Infrared multi-touch
- Eye-care display
- Multi-focus camera system
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Infrared multi-touch
50 touch points, ±1.5 mm touch accuracy and writing height of 2 mm or less.
02
Eye-care display
TÜV Flicker Free and TÜV Low Blue Light certifications, with 9H tempered, 3 mm anti-glare glass.
03
Multi-focus camera system
five cameras, including a panorama camera with a 145° diagonal field of view.
04
8-microphone array
180° pick-up angle, 0-12 m pick-up range and AI noise cancellation.
05
2.2-channel speakers
2×8 W + 2×18 W output and 88 dB sound pressure level at 1 m.
06
Built-in Windows PC
Intel Core i5 (13th Gen), 8 GB RAM and 256 GB storage running Windows 11 Pro.
07
HDMI and USB-C connectivity
two HDMI 2.1 inputs at up to 4K at 60 Hz, one HDMI output, and a USB Type-C port for video, audio, touch and LAN.
08
Wi-Fi 6 and Bluetooth 5.2
Wi-Fi 6 (802.11ax) through the module slot on 2.4 GHz and 5 GHz, plus Bluetooth 5.2.
Specifications
45 specificationsGeneral
CompatibilityTouch return for Windows, Android, Linux, Mac OS and Chrome
Key FeaturesTÜV Flicker Free, TÜV Low Blue Light, 50-point touch, 8-microphone array, 2.2-channel speakers, Windows 11 Pro, five-camera system, Wi-Fi 6
ModelF7550
TypeInteractive Flat Panel
What's in the BoxHDMI cable (3 m), 2 styluses (SW30), 2 wall mount strips, wall mount plate (WIB9060H)
Display
Aspect Ratio16:9
BacklightDLED
Brightness400 nits typical, 450 nits maximum
Camera5 cameras: panorama, 2 telephoto, 2 fusion
Color Depth10-bit (1.07B colours)
Color Gamut98% sRGB
Contrast Ratio5,500:1 typical, 50,000:1 dynamic
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size75 inch
Touch Accuracy±1.5 mm
Touch Points50-point multi-touch
Touch Response Time≤5 ms
Touch TechnologyInfrared
Viewing Angle178° (H/V)
Performance
Operating SystemWindows 11 Pro
ProcessorIntel Core i5 (13th Gen) PC module
RAM8 GB
Storage256 GB
Audio
Microphone8-microphone array, 180° pick-up angle
Pickup Range0-12 m
Speaker Output2.2 channel, 2×8 W + 2×18 W output (2×12 W + 2×25 W maximum)
Connectivity
BluetoothBluetooth 5.2
ConnectivityHDMI 2.1 up to 4K@60 Hz, USB Type-C (video, audio, touch, LAN), RJ45
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI IN × 2, HDMI OUT × 1, USB 3.0 × 2, USB 2.0 × 3, USB Type-C × 1, RJ45 × 1, RS232 × 1, audio out × 1 (3.5 mm), mic in × 1 (3.5 mm)
Wi-FiWi-Fi 6 (802.11a/b/g/n/ac/ax), 2.4 GHz / 5 GHz, via module slot
Power
Power Consumption100 W (typical)
Standby Power≤ 0.5 W
Physical
Dimensions1709.7 x 1041.8 x 97.9 mm
Operating Humidity10% to 90% RH
Operating Temperature0 to 40 °C
Shipping Dimensions1863 x 1156 x 185 mm
Shipping Weight51.4 kg
Surface Protection9H tempered glass, 3 mm, anti-glare (25% haze)
VESA Mount800 x 400 mm
Weight40.7 kg
Compliance
CertificationsEnergy Star, TÜV Flicker Free, TÜV Low Blue Light
IP RatingIP5X (dust resistance)
Downloads
Manufacturer documents for the MAXHUB F5 Series 75-inch 4K Interactive Flat Panel – F7550 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the MAXHUB F7550 a 4K display?
Yes. The MAXHUB F7550 has a 3840 x 2160 (4K UHD) panel with a 16:9 aspect ratio, 10-bit colour depth, 98% sRGB colour gamut and colour accuracy of ΔE ≤1. The 75-inch screen is rated at 450 nits maximum brightness.
Does the MAXHUB F7550 include its own computer?
Yes. It includes an Intel Core i5 (13th Gen) PC module with 8 GB RAM and 256 GB storage, running Windows 11 Pro with MAXHUB EDU OS for Windows. Laptops and other sources can also connect through its HDMI and USB-C inputs.
What wall mount does the MAXHUB F7550 need?
The F7550 uses an 800 x 400 mm VESA pattern with M8 x 25 mm wall-hanging screws. Its net weight is 40.7 kg, and the accessories include a WIB9060H wall mount plate and two wall mount strips. Check that the bracket is rated for that weight before installation.
Can the MAXHUB F7550 be used for remote and hybrid lessons?
Yes. The five-camera multi-focus system includes a panorama camera with a 145° field of view for wide classroom views. The 8-microphone array picks up voices from 0 to 12 m, with AI noise cancellation and echo cancellation, which suits hybrid learning with remote participants.
How do I connect a laptop to the MAXHUB F7550?
Use either of the two HDMI 2.1 inputs (up to 4K at 60 Hz) or the USB Type-C port, which carries video, audio, touch and LAN. Touch returns to the connected computer over USB, and the unit also has a 3.5 mm audio output.
Can I buy the MAXHUB F7550 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
