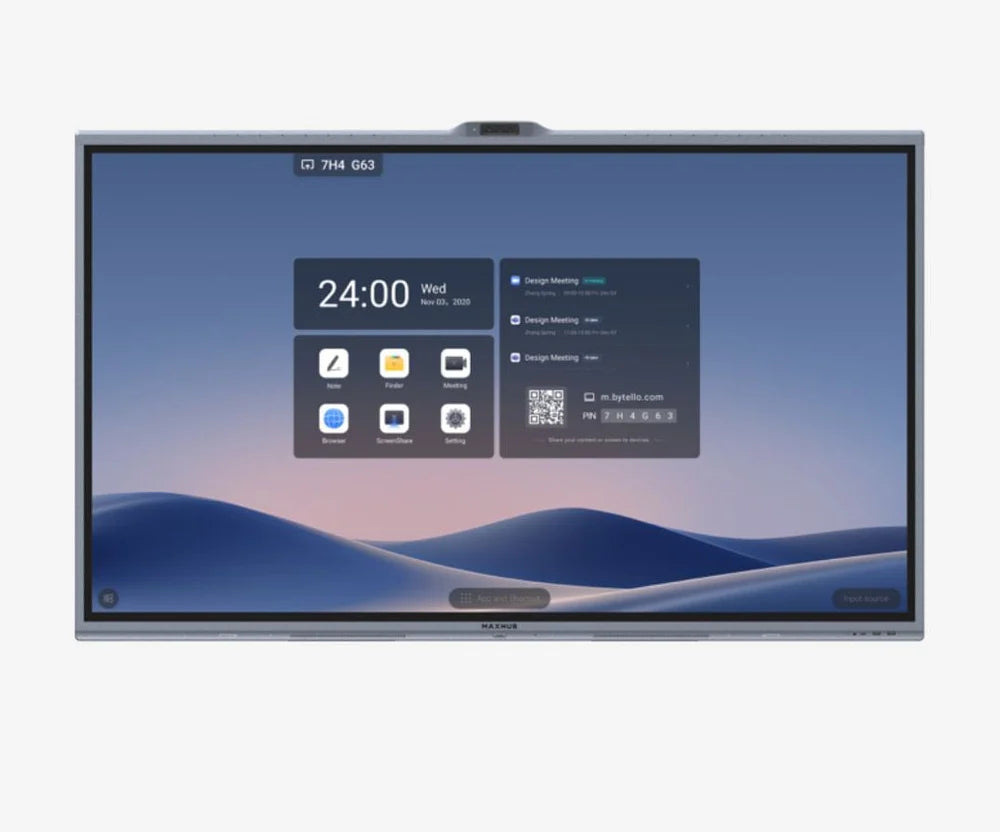

MAXHUB 86 inch XBoard V7 Series Interactive Display – Model T8650MAXHUB

MAXHUB 86 inch XBoard V7 Series Interactive Display – Model T8650

The MAXHUB 86 inch XBoard V7 Series Interactive Display – Model T8650 is a interactive flat panel available in the UAE from Procure.ae.

The MAXHUB 86 inch XBoard V7 Series Interactive Display (Model T8650) sets a new standard for modern classrooms and collaborative workspaces, delivering a seamless blend of cutting-edge technology and intuitive usability. Designed for immersive interactive presentations , this advanced display features an ultra-large 86-inch 4K touchscreen that brings clarity and precision to every meeting or lesson. With multi-touch capability , real-time annotation, and robust wireless connectivity, the MAXHUB XBoard V7 empowers teams to brainstorm, share, and collaborate effortlessly. Its Android-based.

It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.

Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Touch Technology
PCAP
  • Ultra-Large 86-Inch 4K Display
  • Multi-Touch Support
  • Real-Time Annotation
Price
On request · best price
1
Download spec sheet (PDF) Manufacturer datasheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
Ultra-Large 86-Inch 4K Display
Offers stunning visuals and ample screen space for impactful presentations.
02
Multi-Touch Support
Enables up to 20 simultaneous touch points for interactive teamwork.
03
Real-Time Annotation
Draw, write, and highlight directly on the screen for dynamic discussions.
04
Android-Based Operating System
Access a wide range of educational and productivity applications.
05
Wireless Screen Sharing
Seamlessly connect laptops, tablets, and smartphones without cables.
06
Integrated Speakers
Delivers rich sound quality for multimedia presentations and video conferencing.
07
Interactive Whiteboard Function
Facilitates brainstorming and collaborative problem-solving.
08
Slim, Modern Design
Enhances the look of any classroom or office environment.

Specifications

42 specifications
General
Key FeaturesPalm rejection, Pen and touch differentiation
What's in the BoxStylus × 2, Wall Mount WIB9060H, Wi-Fi Module SI07B, Power Cord 3 m × 1, HDMI Cable 1.5 m × 1
Display
BacklightMini LED
Brightness500 nits
Camera50 MP
Color Depth10-bit (1.07 billion colours)
Panel TechnologyMini LED
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Screen Size86 inch
Touch Accuracy±1 mm
Touch Points40-point multi-touch
Touch TechnologyPCAP
Viewing Angle178° (H) / 178° (V)
Performance
Operating SystemWindows 7
Processor12th Gen Intel Processor (MT71 series PC module)
Audio
Audio InAudio in × 1
Audio OutAudio out × 1
Microphone16-mic array, 15 m pickup range
Pickup Range15 m
Speaker Output4 × 10 W + 20 W
Speaker TypeBuilt-in
Connectivity
BluetoothBluetooth 5.2
EthernetRJ45 (Gigabit) × 1
HDMI InputsHDMI In × 2
HDMI OutputsHDMI Out × 1
OPS SlotOptional
Serial PortRS-232 × 1
Touch USB PortsTouch USB 2.0 × 1
USB PortsUSB 2.0 × 1, USB 3.0 × 1
USB-C PortsUSB-C (USB 2.0, DP 1.2 in, wireless dongle pairing, BYOD)
Wi-FiWi-Fi 6 (802.11ax), 2.4/5 GHz
Power
Power Consumption350 W
Standby Power0.5 W
Physical
Dimensions1924.7 x 1162.6 x 88.8 mm
Operating Humidity10% to 90% RH
Operating Temperature0°C to 40°C
Shipping Dimensions2110 x 225 x 1304 mm
Surface ProtectionAnti-glare smooth glass
VESA Mount800 x 600 mm
Weight67.6 kg
Compliance
Warranty3 years

Questions

Can’t find your answer? Ask on WhatsApp

What is the MAXHUB interactive flat panel used for?
The MAXHUB 86 inch XBoard V7 Series Interactive Display (Model T8650) sets a new standard for modern classrooms and collaborative workspaces, delivering a seamless blend of cutting-edge technology and intuitive usability. Designed for immersive interactive presentations , this advanced display.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
Does this interactive panel support multi-touch and on-screen writing?
Yes — it uses Projected Capacitive Touch touch technology, so multiple users can write and interact at the same time.
Can I run apps on it without connecting a PC?
Yes — it runs Windows 7, so you can open apps, whiteboard, and browse without a separate computer.
Does it have a built-in camera for video calls?
