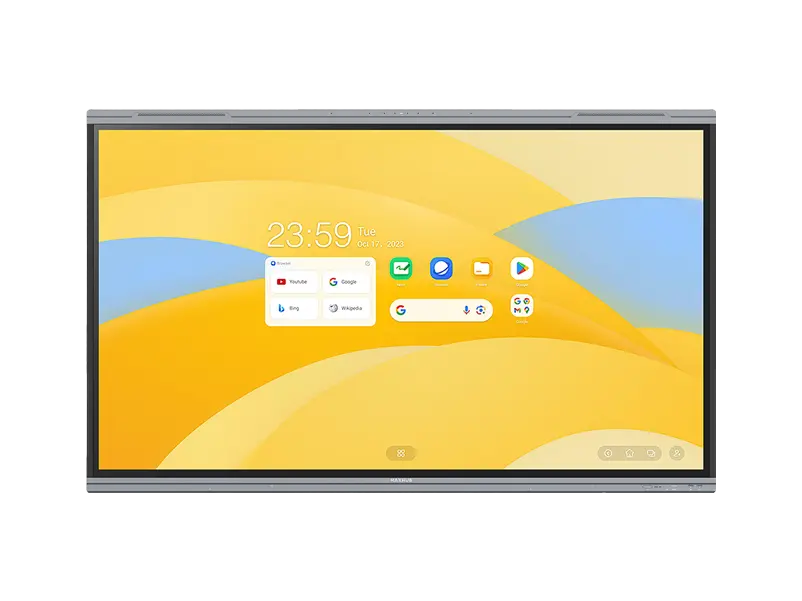

MAXHUB 75 inch Interactive Flat Panel U3 Series Interactive Display – Model U8630
The MAXHUB 75 inch Interactive Flat Panel U3 Series Interactive Display – Model U8630 is a interactive flat panel available in the UAE from Procure.ae.
Experience a new standard in interactive collaboration with the MAXHUB 75 inch Interactive Flat Panel from the advanced U3 Series . The MAXHUB U8630 delivers a seamless blend of ultra-HD 4K clarity, responsive touch screen technology , and powerful integrated features, making it ideal for both educational and corporate environments. With intuitive wireless screen sharing and a robust Android operating system , this interactive flat panel transforms presentations, meetings, and classrooms into interactive, engaging experiences. Enhanced with multi-user annotation , anti-glare glass , and smart.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Touch Technology
Infrared
- Ultra-HD 4K Resolution
- 75-Inch Large Display
- Responsive Touch Technology
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Ultra-HD 4K Resolution
Delivers stunning image clarity for impactful presentations and vivid visuals.
02
75-Inch Large Display
Provides ample screen space for group collaboration and large meeting rooms.
03
Responsive Touch Technology
Supports multi-touch input for smooth, intuitive interaction and annotation.
04
Integrated Android OS
Offers a user-friendly interface and access to essential productivity apps.
05
Wireless Screen Sharing
Enables seamless content sharing from laptops, tablets, and smartphones.
06
Anti-Glare Tempered Glass
Reduces reflections for comfortable viewing in any lighting environment.
07
Smart Whiteboard Function
Facilitates dynamic brainstorming and real-time note-taking.
08
Powerful Built-in Speakers
Ensures crystal-clear audio for multimedia presentations and video conferencing.
Specifications
45 specificationsGeneral
Key FeaturesSensors: Ambient light, Ambient color temperature
What's in the BoxRemote Control × 1, Stylus × 2, Wall Mount WIB9060G, Power Cord 3m × 1, HDMI Cable 3m × 1, USB Touch Cable (Type A-B) 3m × 1
Display
BacklightDirect LED
Brightness500 nits
CameraUC W31 (Optional)
Color Depth10-bit (1.07 billion colours)
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Screen Size75 inch
Touch Accuracy±0.5 mm
Touch Points50-point multi-touch
Touch Response Time2.5 ms
Touch TechnologyInfrared
Viewing Angle178° (H) / 178° (V)
Performance
GraphicsArm Mali-G610 MP4
Operating SystemAndroid 13
ProcessorARM 4x Cortex-A76 + 4x Cortex-A55
RAM8 GB
Storage64 GB
Audio
Audio InAudio in × 1
Audio OutAudio out × 1
DisplayPortDisplayPort In × 1
Microphone8-mic array, 10 m pickup range
Pickup Range10 m
Speaker Output2 × 8 W + 2 × 18 W
Speaker TypeBuilt-in
Connectivity
BluetoothBluetooth 5.2
EthernetRJ45 In × 1, RJ45 Out × 1
HDMI InputsHDMI In × 4
HDMI OutputsHDMI Out × 1
OPS SlotOptional
Serial PortRS-232 × 1
Touch USB PortsTouch USB × 2
USB PortsUSB 2.0 × 1, USB 3.0 × 4
USB-C PortsUSB-C (video, audio, touch, network, 100 W charging (Front), 15 W charging (Rear))
Wi-FiWi-Fi 6 (802.11ax), 2.4/5 GHz
Power
Power Consumption320 W
Standby Power0.5 W
Physical
Dimensions1709.4 x 1031 x 85.7 mm
Operating Humidity10% to 90% RH
Operating Temperature0°C to 40°C
Shipping Dimensions1863 x 1148 x 225 mm
Surface ProtectionAnti-glare
VESA Mount600 x 400 mm
Weight60.75 kg
Questions
Can’t find your answer? Ask on WhatsApp
What is the MAXHUB interactive flat panel used for?
Experience a new standard in interactive collaboration with the MAXHUB 75 inch Interactive Flat Panel from the advanced U3 Series . The MAXHUB U8630 delivers a seamless blend of ultra-HD 4K clarity, responsive touch screen technology , and powerful integrated features, making it ideal for both.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
Does this interactive panel support multi-touch and on-screen writing?
Yes — it uses Intelligent Touchscreen Technology (infrared recognition) touch technology, so multiple users can write and interact at the same time.
Can I run apps on it without connecting a PC?
Yes — it runs Android 13, so you can open apps, whiteboard, and browse without a separate computer.
