MarvelFloor Standing KiosksSKU MWE804 Outdoor High Brightness Digital Signage

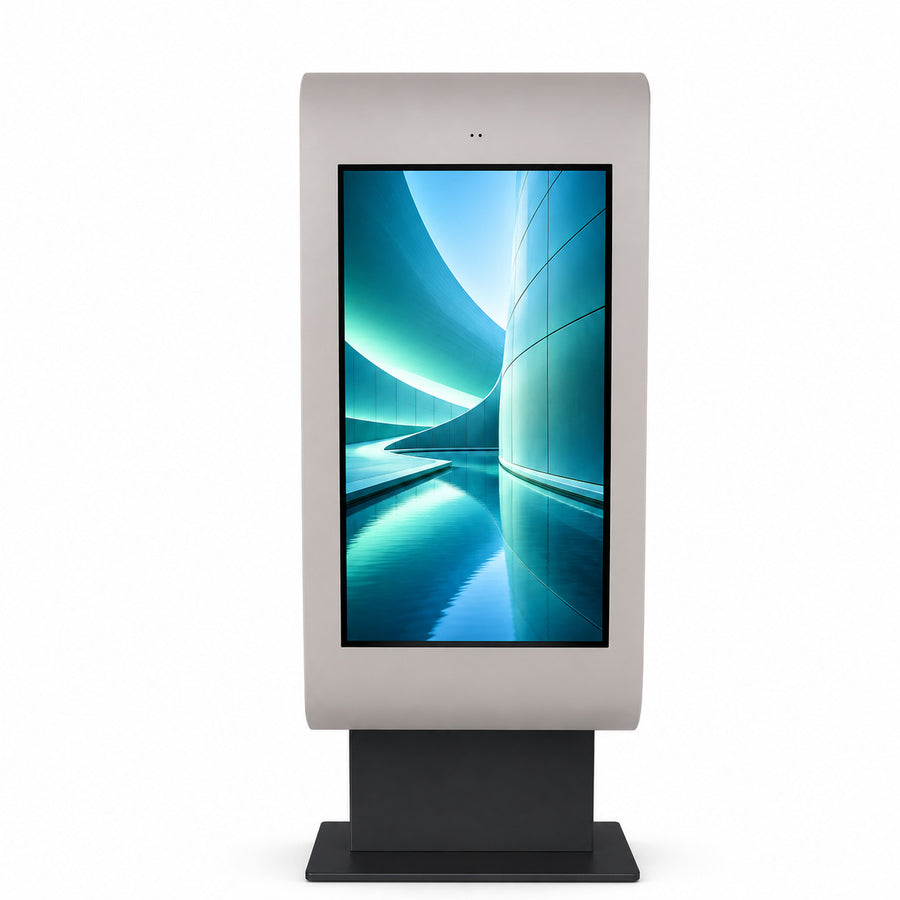

Marvel Outdoor High Brightness Digital Signage Display – MWE804
The Marvel MWE804 Outdoor High Brightness Digital Signage Display is an IP65 LCD for outdoor advertising and information screens. It has a 1080 x 1920 resolution, 2500 nits brightness and capacitive touch, with PC and Android versions. Procure.ae supplies the MWE804 across the UAE, with delivery and installation.
The MWE804 has a 16:9 LCD at 1080 x 1920 resolution, with 2500 cd/m² brightness, a 3,000:1 contrast ratio and 178° horizontal and vertical viewing angles. An LED backlight and capacitive touch foil complete the display, which accepts finger or touch pen input with 10 touch points as standard and 20 or 40 optional. The manufacturer's specifications list more than one panel size, so Procure.ae should confirm the size before ordering.
The MWE804 comes in a PC version (VGA, HDMI and USB) and an Android version (HDMI, USB and SD card). It connects by RJ45, with Wi-Fi and optional 4G, and operates from -30 to 60 °C with an air conditioner or -10 to 55 °C with fan cooling. Procure.ae supplies the MWE804 across the UAE and the wider MEA region, with delivery, installation and free training and support.
Resolution
1080 x 1920 (Full HD)
Brightness
2500 nits
Touch Technology
PCAP
Type
Outdoor Digital Signage Display
- High brightness
- Capacitive touch
- Wide viewing angle
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
High brightness
2500 cd/m² brightness with a 3,000:1 contrast ratio.
02
Capacitive touch
Touch foil accepts finger or touch pen, with 10 points standard.
03
Wide viewing angle
178° horizontal and vertical viewing angles.
04
IP65 enclosure
IP65 rating with aluminium alloy and tempered glass construction.
05
Network connectivity
RJ45 Ethernet, Wi-Fi and optional 4G.
06
PC or Android version
VGA, HDMI and USB on PC; HDMI, USB and SD card on Android.
07
Wide operating range
-30 to 60 °C with air conditioning, -10 to 55 °C with fan cooling.
08
Mains power input
100–240 V AC, 50/60 Hz.
Specifications
23 specificationsGeneral
ApplicationOutdoor
Key FeaturesHigh brightness, capacitive touch, Wi-Fi and optional 4G, IP65, PC or Android version
ModelMWE804 Outdoor High Brightness Digital Signage
TypeOutdoor Digital Signage Display
Display
Aspect Ratio16:9
BacklightLED
Brightness2500 nits
Color Depth16.7M colours
Contrast Ratio3,000:1
Resolution1080 x 1920 (Full HD)
Touch Points10-point touch (20 or 40 optional)
Touch TechnologyPCAP
Viewing Angle178° horizontal / 178° vertical
Connectivity
ConnectivityRJ45 Ethernet, Wi-Fi, 4G (optional)
Input Voltage100–240 V AC, 50/60 Hz
PortsVGA, HDMI, USB (PC version); HDMI, USB, SD card (Android version)
Physical
ColorBlack, white, silver or custom colours
FinishSprayed, frosted aluminium
MaterialAluminium alloy, tempered glass, galvanised steel shell
Operating Temperature-30 to 60 °C (with air conditioner); -10 to 55 °C (with fan cooling); -30 to 55 °C (with fan cooling and heater)
Compliance
CertificationsCE, FCC, RoHS
Country of OriginChina
IP RatingIP65
Questions
Can’t find your answer? Ask on WhatsApp
What is the Marvel MWE804 outdoor digital signage display?
The MWE804 is an outdoor high brightness LCD display with 1080 x 1920 resolution, 2500 cd/m² brightness, capacitive touch and an IP65 enclosure. It is intended for outdoor advertising and information screens, and Procure.ae supplies it across the UAE.
Is the MWE804 suitable for outdoor installation?
Yes. The manufacturer lists the MWE804 for outdoor application, with an IP65 rating and an operating range of -30 to 60 °C with an air conditioner. Procure.ae can confirm the installation and mounting requirements for your site before work begins.
How bright is the MWE804 and what is its viewing angle?
The MWE804 has 2500 cd/m² brightness, a 3,000:1 contrast ratio and a 178° horizontal and vertical viewing angle. Its LED backlight is paired with a 1080 x 1920 LCD. These figures are the manufacturer's stated values for this model.
Does the MWE804 support touch input?
Yes. It has capacitive touch foil that works with finger or touch pen input. The standard model has 10 touch points, with 20 or 40 points available as options. Procure.ae can confirm which touch option suits your application.
Which ports and operating systems does the MWE804 have?
The MWE804 has a PC version and an Android version. The PC version has VGA, HDMI and USB ports; the Android version has HDMI, USB and an SD card slot. Connectivity is RJ45, with Wi-Fi and optional 4G.
Can I buy the MWE804 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
