MarvelFloor Standing KiosksSKU MWE897-F3 3-Sided Outdoor Floor Standing Totem

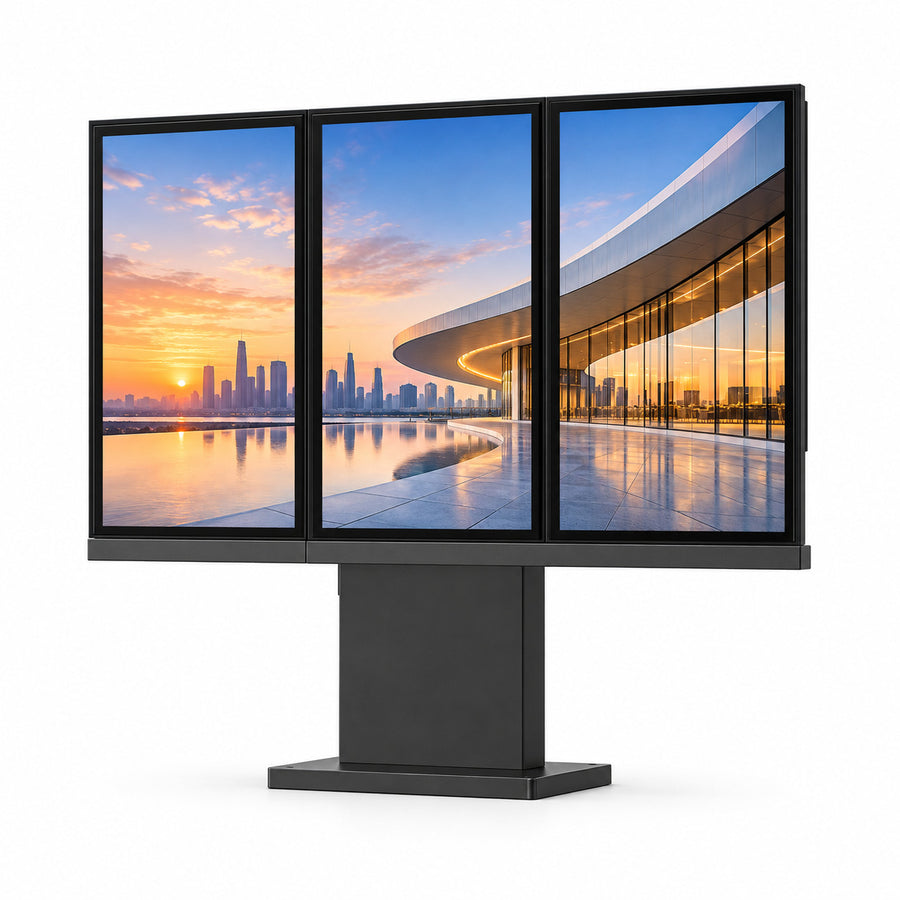

Marvel 55-inch 3-Sided Outdoor Floor-Standing Totem – MWE897-F3
The Marvel MWE897-F3 3-Sided Outdoor Floor-Standing Totem is an outdoor digital totem with three display faces, optical bonding and 2500 nits brightness. It carries an IP66 and IK10 protection rating and runs Android 11. Procure.ae supplies the MWE897-F3 across the UAE, with delivery and installation.
The MWE897-F3 uses three 1920 x 1080 direct-lit LED LCD panels with 2500 nits brightness and 1,200:1 typical contrast. Optical bonding and an anti-glare tempered glass front are listed for the displays. The manufacturer lists a 3-sided design, 48 mm bezels, a grey RAL 7016 cabinet and an outline of 626 x 1038 x 115 mm. The manufacturer's specifications list a panel size range of 43 to 75 inch, and the model codes list 43 and 55 inch.
The MWE897-F3 runs Android 11 on an RK3568 quad-core processor with 2 GB RAM and 32 GB storage. Connections are HDMI, two USB ports, RJ45 and dual-band Wi-Fi, with optional 4G. The unit has a maximum power consumption of 160 W, operates from -20 to 45 °C and takes 100–240 V AC input. Procure.ae supplies it across the UAE and the wider MEA region, with delivery, installation and free training and support.
Screen Size
55 inch
Resolution
1920 x 1080 (Full HD)
Brightness
2500 nits
Type
3-Sided Outdoor Floor-Standing Totem
- Three display faces
- Optical bonding
- IP66 / IK10 protection
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Three display faces
Three LCD panels in a 3-sided floor-standing totem.
02
Optical bonding
Bonded LCDs with an anti-glare tempered glass front.
03
IP66 / IK10 protection
Protection rating of IP66 and IK10.
04
2500 nits brightness
Direct-lit LED backlight with 1,200:1 typical contrast.
05
Android 11 platform
RK3568 quad-core processor, 2 GB RAM and 32 GB storage.
06
Connectivity options
HDMI, two USB ports, RJ45, dual-band Wi-Fi and optional 4G.
07
Environmental monitoring
OMC functions monitor smoke, humidity, temperature and wind speed.
08
IR control and light sensor
IR control and auto-brightness light sensor supported.
Specifications
34 specificationsGeneral
ApplicationOutdoor
ControlsIR control, auto-brightness light sensor
Key FeaturesThree display faces, optical bonding, IP66 / IK10, Android 11, dual-band Wi-Fi, optional 4G, IR control
ModelMWE897-F3 3-Sided Outdoor Floor Standing Totem
Type3-Sided Outdoor Floor-Standing Totem
Display
BacklightDirect-lit LED
Bezel Size48 mm (all sides)
Brightness2500 nits
Color Depth16.7M colours (8-bit)
Contrast Ratio1,200:1 (typical)
OrientationPortrait or landscape
Resolution1920 x 1080 (Full HD)
Screen Size55 inch
Viewing Angle89° / 89° / 89° / 89° (typical)
Performance
Operating SystemAndroid 11
ProcessorRK3568 quad-core
RAM2 GB
Storage32 GB
Storage Conditions-25 to 60 °C
Audio
Speaker Output2 × 5 W (8 Ω)
Connectivity
Cellular4G (optional)
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI × 1, USB × 2, RJ45 × 1, power input × 1
Wi-FiDual-band (2.4 GHz / 5 GHz)
Power
Power Consumption160 W (maximum)
Physical
ColorGrey (RAL 7016)
Dimensions626 x 1038 x 115 mm
MaterialAnti-glare tempered glass
Operating Humidity10% to 100% RH (non-condensing)
Operating Temperature-20 to 45 °C
Weight40 kg (net)
Compliance
CertificationsCE, FCC, RoHS, ISO
Country of OriginChina
IP RatingIP66 / IK10
Questions
Can’t find your answer? Ask on WhatsApp
What is the Marvel MWE897-F3 3-sided outdoor totem?
The MWE897-F3 is a 3-sided outdoor floor-standing totem with three LCD panels, optical bonding, 2500 nits brightness and an IP66 and IK10 protection rating. It runs Android 11. Procure.ae supplies it across the UAE.
Is the MWE897-F3 rated for outdoor use?
Yes. The manufacturer lists the MWE897-F3 for outdoor application, with an IP66 and IK10 rating, an operating range of -20 to 45 °C and humidity up to 100% RH, non-condensing. Procure.ae can confirm the installation requirements for your site.
Can the MWE897-F3 be installed in portrait or landscape orientation?
Yes. The manufacturer lists portrait and landscape orientation, and a 3-sided design with three LCD panels. The manufacturer lists the outline as 626 x 1038 x 115 mm. Procure.ae can confirm the installation requirements for your site before work begins.
What are the processor, memory and operating system specifications?
The MWE897-F3 uses an RK3568 quad-core processor with 2 GB RAM and 32 GB ROM, running Android 11. The default language is English, and the unit supports dual-band Wi-Fi with optional 4G.
Does the MWE897-F3 have a touch screen?
The manufacturer's specifications do not list a touch screen for the MWE897-F3, so ask Procure.ae to confirm touch options before ordering. The display itself is a 1920 x 1080 LCD rated at 2500 nits.
