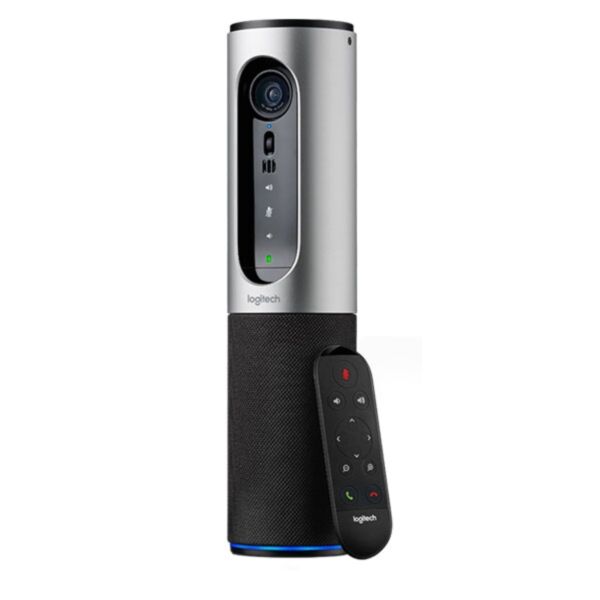

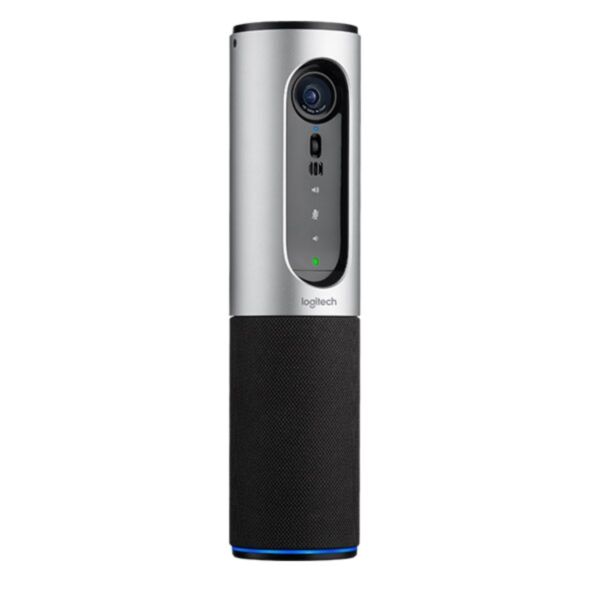

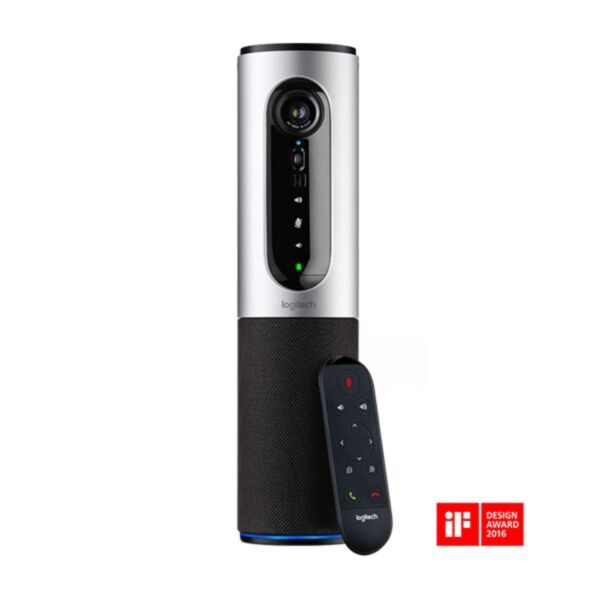

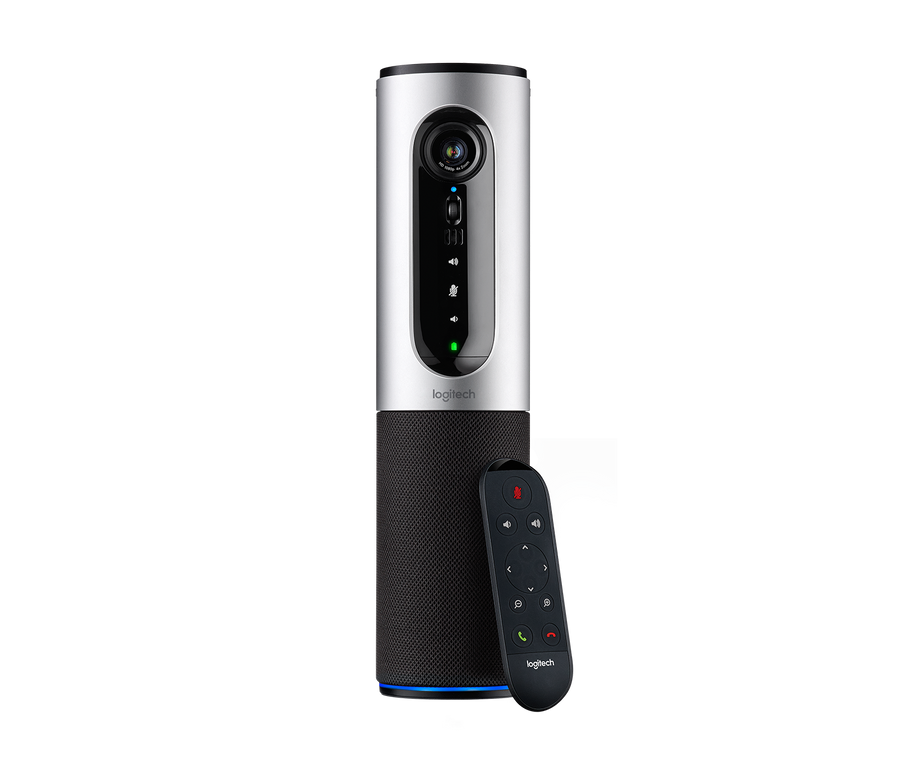

Logitech Conference Cam Connect

SPECS & DETAILS

DIMENSIONS
WITH CLIP:
Height x Width x Depth: 304.2 mm X 75 mm X 75 mm
Weight: 766 g
REMOTE:
Height x Width x Depth: 41 mm X 128 mm X 9 mm
Weight: 32 g
USB CABLE:
2 m
POWER ADAPTER WITH CORD:
3 m

SYSTEM REQUIREMENTS
Windows® 7, 8.1 or 10
Mac OS® X 10.7 or higher

TECHNICAL SPECIFICATIONS
CAMERA
Full HD 1080p video calling (up to 1920 x 1080 pixels); 720p HD video calling (up to 1280 x 720 pixels) with supported clients
H.264 UVC 1.5 with Scalable Video Coding (SVC)
Supports H.264 SVC 1080p, along with optimizations for best call performance in single or multiparty HD video
90-degree field of view with autofocus
4X digital zoom in Full HD
Rightlight™ 2 Technology for clear image in various lighting environments (even low light)
Digital pan, tilt and zoom from remote control or optional downloadable app
Mechanical tilt
Camera LED for active streaming indication
SPEAKERPHONE
Integrated full duplex speakerphone with echo and noise cancellation
360-degree wideband audio with 12-foot (3.6 m) diameter range
Bluetooth® and NFC enabled
LEDs for speakerphone streaming, mute, hold, and Bluetooth pairing
Controls for call answer/end, volume mute
Microphones (Tx):
Two omni-directional microphones supporting 3.6 m diameter range
Frequency response: 100Hz – 16KHz
Sensitivity: -34dB +/-3dB
Distortion: <1% @ 1KHz at 65dB
Speakers (Rx):
Frequency response: 140Hz – 16KHz
Sensitivity: 89dBSPL +/-3dB at 1W/0.5M
Max output: 91.5dBSPL at 0.5M
Distortion: <5% from 200Hz
REMOTE CONTROL
Dockable remote control for camera / speakerphone functions
10-foot (3 meters) range
CABLES
USB
Power adapter with cord
WIRELESS SCREEN MIRRORING AND CONNECTIVITY FEATURES
Screen mirroring through WiFi connection to the device
Android® or Windows 8.1 compatibility for screen mirroring
HDMI connector for TV output
Rechargeable battery supports up to 3 hours videoconferencing or screen mirroring time; 15 hours for Bluetooth audio. Time to fully charge battery (from AC power, device idle): 3 hours
Battery rechargeable through AC power or USB (not powered through USB)
1.8 m/6-foot detachable USB cable for PC or Mac based videoconferencing
Works with most UC and videoconferencing applications
Professional-grade certifications
Kensington security slot
TALK TIME/BATTERY LIFE
Up to 15 hours (3 hours for videoconferencing and screen mirroring)
RANGE
12 foot diameter range (3.7 meters)
360-degree sound

PACKAGE CONTENTS
ConferenceCam Connect device
Power adapter with plug
Regional plugs
USB cable
Documentation

WARRANTY INFORMATION
2-Year Limited Hardware Warranty
