LGDigital SignageSKU 75UM3E

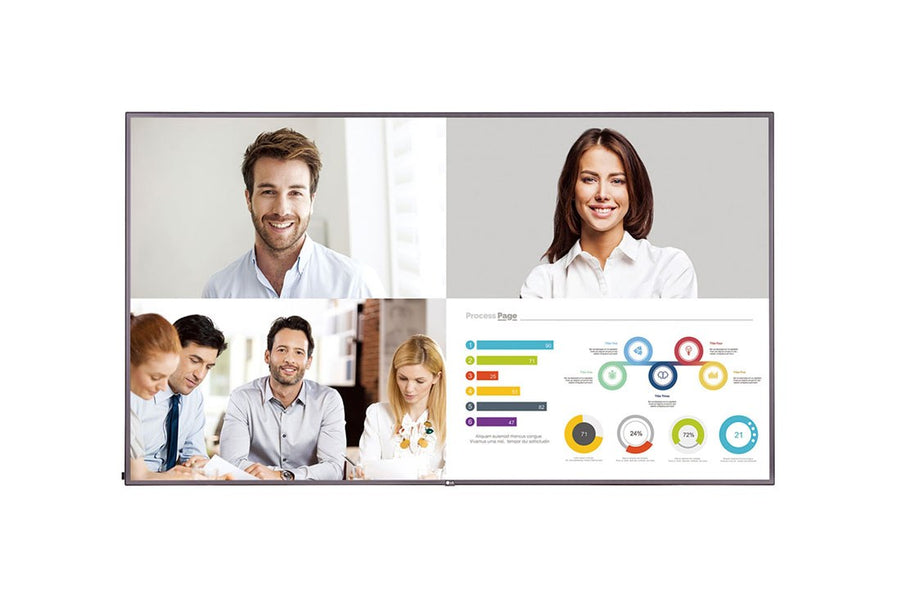

LG UM3E 75-inch UHD Digital Signage Display – 75UM3E
The LG 75UM3E is a 75-inch UHD digital signage display for lobby, reception and information screens. It offers 3840 x 2160 resolution, 350 nits typical brightness and a 600 x 400 mm VESA mount interface. This model is discontinued; Procure.ae supplies LG signage in the UAE and can confirm current availability or recommend the current successor model.
The 75UM3E has a 75-inch panel with 3840 x 2160 (4K UHD) resolution and 350 nits typical brightness. Its external control options include RS232C in and out, RJ45 LAN in and IR in. The display is rated for operation at 0 to 40 °C and 10% to 80% humidity, on a 100–240 V supply at 50/60 Hz. The specifications list a 14.9 mm even bezel, CB/NRTL safety approval, and FCC Class A, CE and KC EMC compliance.
The display fits signage networks that use LG SuperSign CMS and SuperSign Control+ software. It includes an OPS type compatible slot for optional computing modules, and RS232C and RJ45 control for remote management. The 600 x 400 mm VESA interface requires a matching wall bracket, and the 41.5 kg head weight means the mounting structure must be rated for that load. The model is sold as 75UM3E-B and 75UM3E-B.AMA.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits
Type
Digital Signage Display
- Large 75-inch screen
- Typical brightness
- External control
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Large 75-inch screen
75-inch panel with 3840 x 2160 (4K UHD) resolution.
02
Typical brightness
350 nits typical brightness for signage content.
03
External control
RS232C in and out, RJ45 LAN in and IR in.
04
Content software
Compatible with LG SuperSign CMS, SuperSign Control+ and Control.
05
OPS slot
OPS type compatible for optional computing modules.
06
VESA mounting
600 x 400 mm VESA mount interface and 14.9 mm even bezel.
07
Energy compliance
Rated Energy Star 8.0 and ErP compliant in the EU.
Specifications
17 specificationsGeneral
ControlsRS232C in and out, RJ45 LAN, IR in
Key FeaturesOPS type compatible, SuperSign CMS, SuperSign Control+, RS232C and RJ45 control, Energy Star 8.0, ErP compliant (EU)
Model75UM3E
TypeDigital Signage Display
What's in the BoxRemote controller, power cord, quick start guide, regulation book, DP cable (1.8 m), phone to RS232C gender
Display
Bezel Size14.9 mm (even)
Brightness350 nits
Resolution3840 x 2160 (4K UHD)
Screen Size75 inch
Connectivity
Input Voltage100–240 V, 50/60 Hz
PortsRS232C In/Out, RJ45 In, IR In
Physical
Dimensions1682.4 x 960.3 x 57.9 mm (W x H x D, without handle and logo)
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight41.5 kg
Compliance
CertificationsCB / NRTL (safety), FCC Class A, CE, KC (EMC), ErP (EU), Energy Star 8.0
Downloads
Manufacturer documents for the LG UM3E 75-inch UHD Digital Signage Display – 75UM3E — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the LG 75UM3E a 4K display?
Yes. The LG 75UM3E has a 3,840 x 2,160 (UHD) resolution on a 75-inch screen. The specifications list this as its native resolution, so text and video stay sharp for signage content viewed at close range in lobbies and corridors.
How bright is the LG 75UM3E?
The manufacturer's specifications rate it at 350 nits typical brightness. Check this rating against the ambient light in the room before you choose the model for a bright area, such as a window-facing lobby or a sunlit atrium.
What mount does the LG 75UM3E need?
It uses a 600 x 400 mm VESA mount interface. The monitor measures 1682.4 x 960.3 x 57.9 mm and weighs 41.5 kg, so the wall or floor structure must be rated for that load.
Does the LG 75UM3E work with SuperSign CMS?
Yes. The specifications list SuperSign CMS as the content management software, and SuperSign Control+ and Control as the monitoring software. They are the software the manufacturer names for managing and monitoring this display across a network of screens.
Which control interfaces does it have?
The display has RS232C in and out, RJ45 LAN in and IR in. These allow control from a control system, a network or a remote controller. The remote controller is included in the box, and the RJ45 LAN connection lets the display be reached over a network.
