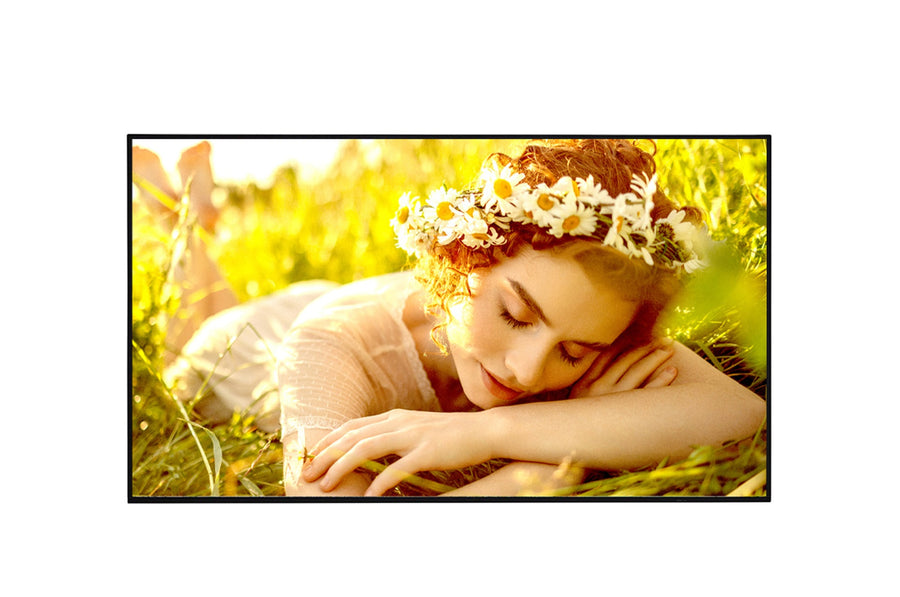

LG UL5Q Series 75-inch 4K UHD Digital Signage Display – 75UL5Q-M
The LG 75UL5Q-M is a 75-inch 4K UHD digital signage display for continuous operation in lobbies, retail spaces and information displays. It has a 3840 x 2160 ADS panel, 500 nits typical brightness and webOS 6.1, and the manufacturer lists it with Cisco certification. Procure.ae, an authorised LG reseller, supplies the 75UL5Q-M across the UAE.
The 75UL5Q-M pairs a 4K UHD ADS panel with a 16:9 aspect ratio, a 60 Hz refresh rate and an 8 ms (G to G) response time. Typical brightness is 500 nits with a 1,200:1 contrast ratio and a DCI 80% color gamut. Built-in Wi-Fi and Bluetooth, 8 GB of eMMC storage and 10 W x 2 speakers support playback on the webOS 6.1 platform. The display is rated for 24/7 operation.
The 75UL5Q-M suits multi-screen signage, video walls and digital menu boards where content is managed centrally. Tile Mode Setting, Video Tag and PBP support layout control, while Crestron Connected, SNMP, Wake on LAN and RS232C in and out integrate it with control systems. The VESA mount is 400 x 400 mm. Unlike the 75UL5Q-E, this model is listed with Cisco certification.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
- Native 4K UHD resolution
- webOS 6.1 platform
- 500 nits brightness
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Native 4K UHD resolution
3840 x 2160 pixels on a 75-inch ADS panel.
02
webOS 6.1 platform
Local contents scheduling, group manager and screen share on webOS 6.1.
03
500 nits brightness
500 nits typical brightness with a 1,200:1 contrast ratio.
04
Cisco certification
The manufacturer lists Cisco certification for this model.
05
24/7 operation
Rated for 24/7 operation in portrait or landscape orientation.
06
Built-in speakers
Two 10 W built-in speakers and an audio output.
07
Video wall support
Tile Mode Setting, Video Tag (4) and PBP (4-way) for layouts.
08
Network management
SNMP, Wake on LAN, Crestron Connected and Group Manager.
Specifications
31 specificationsGeneral
Key FeatureswebOS 6.1, 24/7 operation, Cisco certification, Crestron Connected, SuperSign CMS, Video Tag (4), PBP (4-way), Wake on LAN
Model75UL5Q-M
TypeDigital Signage Display
What's in the BoxRemote controller (2 batteries), power cord, regulation book, quick setup guide, warranty card, phone to D-Sub 9 gender adapter
Display
Aspect Ratio16:9
BacklightDirect
Bezel Size12.9 mm (even)
Brightness500 nits
Color Depth1.07 Billion colors
Color GamutDCI 80%
Contrast Ratio1,200:1
OrientationPortrait and landscape
Panel TechnologyADS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size75 inch
Viewing Angle178° x 178°
Performance
Duty Cycle24/7
Operating SystemwebOS 6.1
Storage8 GB (eMMC)
Audio
Speaker Output10 W x 2 (built-in)
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 3, RS232C In × 1, RS232C Out × 1, RJ45 (LAN) In × 1, USB 2.0 Type A × 2, Audio Out
Wi-FiBuilt-in Wi-Fi and Bluetooth
Physical
Dimensions1679.7 x 959 x 58.5 mm
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount400 x 400 mm
Weight31.4 kg (head only)
Compliance
CertificationsCB, FCC Class B, CE, KC, Cisco certification, ePEAT (US)
Downloads
Manufacturer documents for the LG UL5Q Series 75-inch 4K UHD Digital Signage Display – 75UL5Q-M — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the LG 75UL5Q-M?
The LG 75UL5Q-M is a 75-inch 4K UHD digital signage display with an ADS panel, 500 nits typical brightness and webOS 6.1. It is built for 24/7 operation in lobbies, retail spaces and information displays.
Is the 75UL5Q-M Cisco certified?
Yes. The manufacturer's specifications list Cisco certification for the 75UL5Q-M. The 75UL5Q-E, a sibling size and series model, is listed without Cisco certification, so check the requirement against your network standard before ordering.
Does the 75UL5Q-M support portrait mounting?
Yes. The display supports portrait and landscape orientation, with screen rotation and external input rotation functions. Confirm the bracket or stand is rated for a head weight of 31.4 kg before installing the display.
What VESA mount does the 75UL5Q-M use?
The 75UL5Q-M uses a 400 x 400 mm VESA standard mount interface. The monitor measures 1679.7 x 959 x 58.5 mm, so check the wall bracket span and depth. Procure.ae can advise on mounting for installations across the UAE.
Can the 75UL5Q-M be integrated with a control system?
Yes. It offers RS232C in and out, an RJ45 LAN port, SNMP, Wake on LAN and Crestron Connected support. These allow control and monitoring from a central system across a network of displays.
