LGDigital SignageSKU 75UL5Q-E

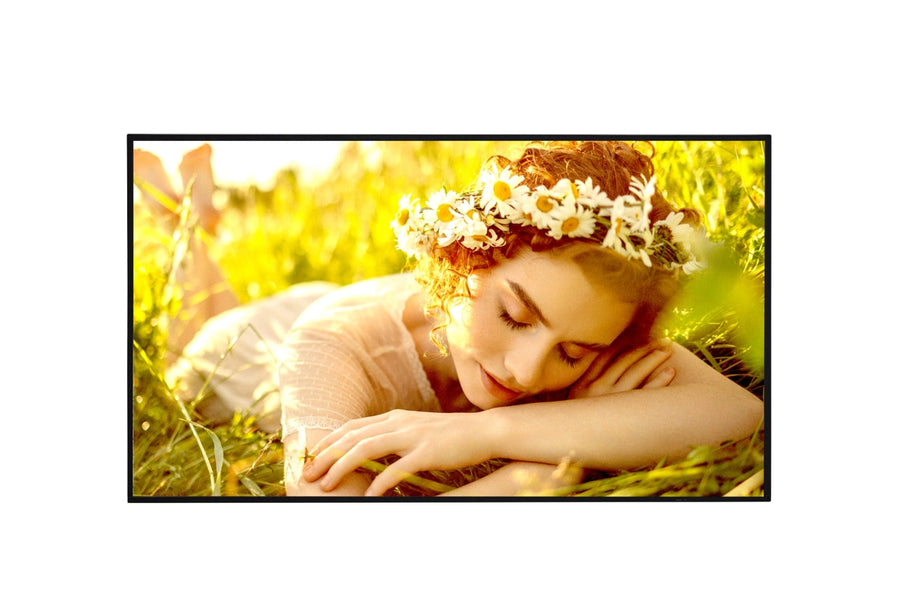

LG UL5Q Series 75-inch 4K UHD Digital Signage Display – 75UL5Q-E
The LG 75UL5Q-E is a 75-inch 4K UHD digital signage display for lobbies, retail floors, classrooms and meeting areas. It runs webOS 6.1 with 500 nits typical brightness, 24/7 operation and portrait or landscape mounting. Procure.ae, an authorised LG reseller, supplies the 75UL5Q-E across the UAE.
The 75UL5Q-E uses an ADS panel with a 3840 x 2160 native resolution, a 16:9 aspect ratio and a 60 Hz refresh rate. Typical brightness is 500 nits, the contrast ratio is 1,200:1 and the DCI 80% color gamut covers 1.07 billion colors. The 8 ms (G to G) response time suits moving content. Built-in 10 W x 2 speakers, Wi-Fi and Bluetooth, and 8 GB of eMMC storage run the webOS 6.1 platform.
The 75UL5Q-E suits video walls, digital menu boards and information displays where content is managed centrally. Tile Mode Setting, Video Tag and PBP support multi-zone layouts, while RS232C in and out, RJ45 LAN, SNMP, Wake on LAN and Crestron Connected allow network and control-system integration. The VESA mount is 400 x 400 mm. Alternate model codes 75UL5Q-E.AMAQ and 75UL5Q-EP are also listed by the manufacturer.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
- Native 4K UHD resolution
- webOS 6.1 platform
- 500 nits brightness
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Native 4K UHD resolution
3840 x 2160 pixels on a 75-inch ADS panel.
02
webOS 6.1 platform
Local contents scheduling, group manager and screen share on webOS 6.1.
03
500 nits brightness
500 nits typical brightness with a 1,200:1 contrast ratio.
04
24/7 operation
Rated for 24/7 operation in portrait or landscape orientation.
05
Built-in speakers
Two 10 W built-in speakers, plus an audio output.
06
Network control
RJ45 LAN, SNMP, Wake on LAN and Crestron Connected support.
07
Video wall support
Tile Mode Setting and PBP (4-way) for multi-zone layouts.
08
Content management
SuperSign CMS, SuperSign Control+ and Mobile CMS are listed.
Specifications
32 specificationsGeneral
Key FeatureswebOS 6.1, 24/7 operation, Portrait and landscape, 10 W x 2 speakers, Crestron Connected, SuperSign CMS, Video Tag (4), PBP (4-way)
Model75UL5Q-E
TypeDigital Signage Display
What's in the BoxRemote controller (2 batteries), power cord, regulation book, quick setup guide, warranty card, phone to D-Sub 9 gender adapter
Display
Aspect Ratio16:9
BacklightDirect
Bezel Size12.9 mm (even)
Brightness500 nits
Color Depth1.07 Billion colors
Color GamutDCI 80%
Contrast Ratio1,200:1
OrientationPortrait and landscape
Panel TechnologyADS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size75 inch
Viewing Angle178° x 178°
Performance
Duty Cycle24/7
Operating SystemwebOS 6.1
Storage8 GB (eMMC)
Audio
Speaker Output10 W x 2 (built-in)
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 3, RS232C In × 1, RS232C Out × 1, RJ45 (LAN) In × 1, USB 2.0 Type A × 2, Audio Out
Wi-FiBuilt-in Wi-Fi and Bluetooth
Power
Power Consumption131.6 W (Smart Energy Saving, 70%)
Physical
Dimensions1679.7 x 958.9 x 58.5 mm
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount400 x 400 mm
Weight24.1 kg (head only)
Compliance
CertificationsCB / NRTL, FCC Class B, CE, KC, ePEAT (US)
Downloads
Manufacturer documents for the LG UL5Q Series 75-inch 4K UHD Digital Signage Display – 75UL5Q-E — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the LG 75UL5Q-E?
The LG 75UL5Q-E is a 75-inch 4K UHD digital signage display with an ADS panel, 500 nits typical brightness and webOS 6.1. It is designed for continuous operation in lobbies, retail spaces and information displays, and it can run in portrait or landscape orientation.
Does the 75UL5Q-E support portrait mounting?
Yes. The manufacturer lists portrait and landscape orientation for this model, with screen rotation and external input rotation functions. Confirm the wall bracket or stand is rated for the 24.1 kg head weight before installing the display in portrait.
What VESA mount does the 75UL5Q-E use?
The 75UL5Q-E uses a 400 x 400 mm VESA standard mount interface. Its monitor dimensions are 1679.7 x 958.9 x 58.5 mm, so check the bracket span and depth before installation. Procure.ae can advise on mounting options during the quote.
Can the 75UL5Q-E be managed remotely?
Yes. It has an RJ45 LAN port, RS232C in and out, SNMP, Wake on LAN and Crestron Connected support. It also works with SuperSign CMS for content scheduling and remote monitoring across a network of displays.
Is the 75UL5Q-E suitable for a video wall?
Yes. Tile Mode Setting supports video wall configurations, and PBP (4-way) splits one screen into up to four content regions. Video Tag with four tags is also listed for scheduled content zones on a single display.
Can I buy the 75UL5Q-E in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
