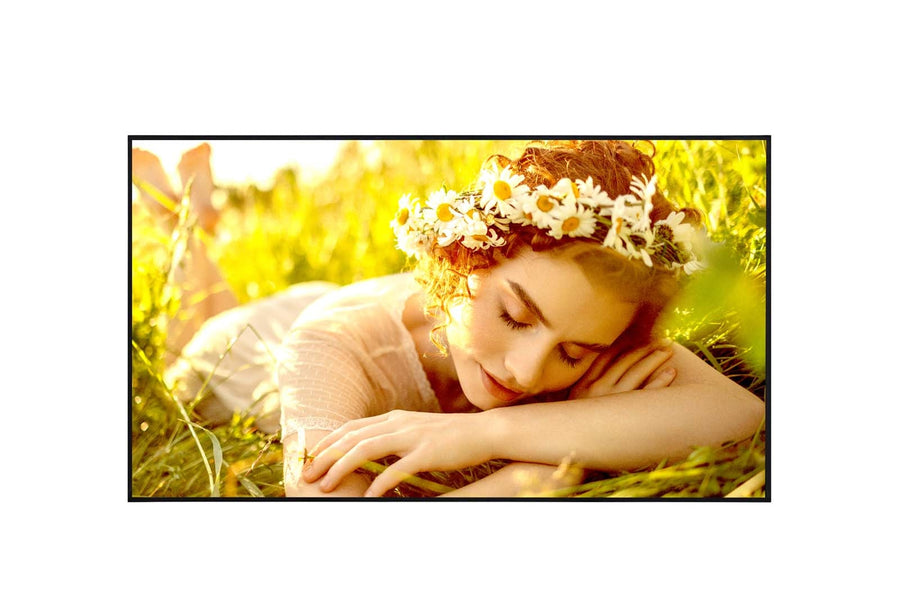

LG UL5Q 43-inch 4K UHD Digital Signage Display – 43UL5Q-E
The LG 43UL5Q-E is a 43-inch 4K UHD digital signage display with a 500-nit ADS panel, 24/7 operation and webOS 6.1. It suits lobbies, showrooms and multi-zone sites that need PIP and four-way PBP layouts. Procure.ae supplies the LG 43UL5Q-E across the UAE.
The 43UL5Q-E uses a 43-inch ADS panel at 3840 x 2160 resolution in a 16:9 aspect ratio, with 500 nits typical brightness and a 1,200:1 contrast ratio. Its DCI 80% colour gamut, 1.07 billion colours and 8 ms response time (G to G) support clear playback of video and still images. The manufacturer rates the display for 24/7 operation, and it can be used in portrait or landscape orientation. Tilt is listed at 15 degrees face up and 15 degrees face down.
The display runs webOS 6.1 with 8 GB of internal memory and built-in Wi-Fi and Bluetooth. It supports PIP and four-way PBP layouts, tile mode, and up to four video tags for multi-zone content, and it works with SuperSign CMS, SuperSign Control+, SuperSign WB and Mobile CMS. Its 200 x 200 mm VESA interface supports wall or stand mounts, and the specifications list Crestron Connected for integration with control systems.
Screen Size
43 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
- 4K UHD ADS panel
- webOS 6.1 platform
- Multi-zone layouts
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD ADS panel
3840 x 2160 resolution with 500 nits typical brightness.
02
webOS 6.1 platform
Built-in webOS 6.1 with 8 GB internal memory, Wi-Fi and Bluetooth.
03
Multi-zone layouts
PIP and four-way PBP display modes for split-screen content.
04
Tile mode
Tile mode setting for video walls built from several displays.
05
Built-in speakers
10 W x 2 speakers with an audio out port.
06
Tilt mounting
Tilt listed at 15 degrees face up and 15 degrees face down.
07
Cloud management
SuperSign Cloud, Mobile CMS and Connected Care listed in the specifications.
08
Power saving
Smart Energy Saving at about 71.4 W and 0.5 W when powered off.
Specifications
29 specificationsGeneral
Key FeaturesBuilt-in webOS 6.1, PIP and 4-way PBP, tile mode, 4 video tags, built-in speakers, tilt up to 15°, Crestron Connected, Connected Care
Model43UL5Q-E
TypeDigital Signage Display
Display
Aspect Ratio16:9
Brightness500 nits
Color Depth1.07 billion colors
Color GamutDCI 80%
Contrast Ratio1,200:1
OrientationPortrait / landscape
Panel TechnologyADS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms (G to G)
Screen Size43 inch
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemwebOS 6.1
Storage8 GB
Audio
Speaker Output10 W x 2
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 3, USB 2.0 × 2, RJ45 (LAN) × 1, RS232C In/Out, Audio Out × 1
Wi-FiBuilt-in Wi-Fi and Bluetooth
Power
Power Consumption71.4 W (Smart Energy Saving, 70%), 0.5 W (power off)
Physical
ColorBlack bezel
Dimensions965 x 554.9 x 59.1 mm
Duty Cycle24/7
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C (portrait scene 0 to 35 °C)
VESA Mount200 x 200 mm
Weight7.6 kg (head only)
Downloads
Manufacturer documents for the LG UL5Q 43-inch 4K UHD Digital Signage Display – 43UL5Q-E — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the LG 43UL5Q-E a 4K display?
Yes. The LG 43UL5Q-E has a 43-inch ADS panel with a native resolution of 3840 x 2160 (4K UHD) and a 16:9 aspect ratio, with 500 nits typical brightness. It is also rated for 24/7 operation and has a 178 by 178 degree viewing angle.
Does the 43UL5Q-E support split-screen layouts?
Yes. The specifications list PIP and four-way PBP display modes, and a tile mode setting for video walls. Four-way PBP is listed in the specifications, along with four video tags and tile mode for multi-screen playback.
Can the 43UL5Q-E be mounted at an angle?
It uses a 200 x 200 mm VESA mounting interface, and the specifications list a tilt of 15 degrees face up and 15 degrees face down. The head weighs 7.6 kg.
Does the 43UL5Q-E run in portrait orientation?
Yes. The display supports portrait and landscape orientation, with screen rotation and external input rotation settings. The manufacturer lists a portrait operating temperature of 0 to 35 °C. The specifications also list external input rotation as supported, so rotated sources can be shown in portrait mode.
Can it be integrated with a control system?
Yes. It has RS232C in and out and an RJ45 LAN port, and the specifications list Crestron Connected and Control Manager support. It also lists SuperSign Control+, Mobile CMS and Connected Care for remote management.
