LGDigital SignageSKU 86UH5Q-E

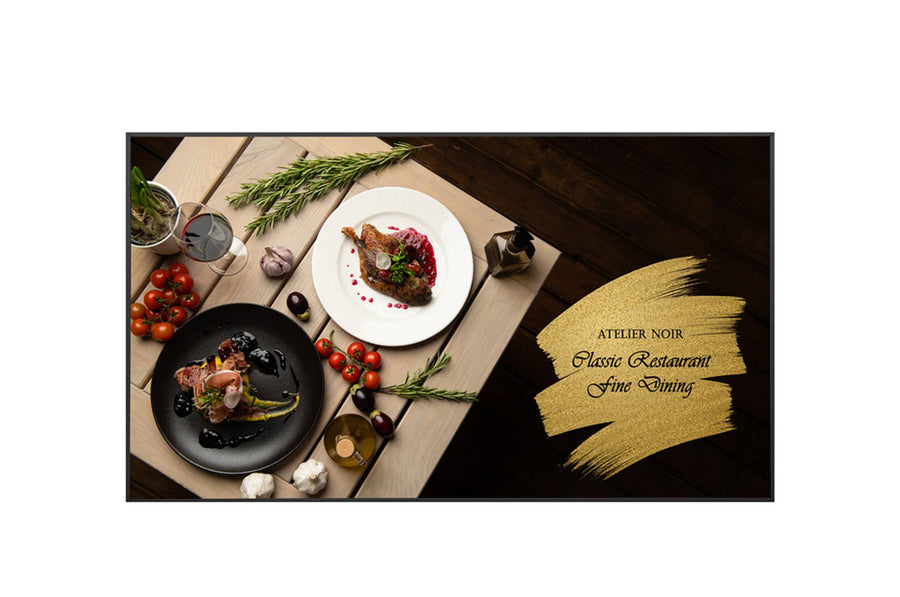

LG UH5Q Series 86-inch 4K UHD Digital Signage Display – 86UH5Q-E
The LG 86UH5Q-E is an 86-inch 4K UHD digital signage display with webOS 8.0, a DisplayPort input and 700 nits typical brightness. It suits lobbies, retail floors and meeting spaces that need bright, centrally managed content. Procure.ae, an authorised LG reseller, supplies the 86UH5Q-E across the UAE.
The 86UH5Q-E uses a 3840 x 2160 ADS panel with 700 nits typical brightness, a 1,200:1 contrast ratio and an 8 ms (G to G) response time. The BT.709 95% color gamut covers 1.07 billion colors at a 60 Hz refresh rate. The webOS 8.0 platform runs from 16 GB of eMMC storage and includes built-in Wi-Fi, Bluetooth and 10 W x 2 speakers. The display is rated for 24/7 operation in portrait or landscape orientation, with an IP5X rating.
The 86UH5Q-E fits lobbies, retail floors, meeting rooms and video walls where content is managed from a central system. Its three HDMI inputs, DisplayPort input, RS232C ports and RJ45 LAN port allow integration with control systems. The manufacturer lists Crestron Connected, SNMP, Wake on LAN, HDMI-CEC and Cisco certification. Compared with the 86UH5Q-GQ, which is rated at 500 nits typical, this model lists 700 nits.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
700 nits
Type
Digital Signage Display
- webOS 8.0 platform
- 700 nits brightness
- Native 4K UHD resolution
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
webOS 8.0 platform
Local contents scheduling, group manager and screen share.
02
700 nits brightness
700 nits typical brightness with a 1,200:1 contrast ratio.
03
Native 4K UHD resolution
3840 x 2160 pixels on an 86-inch ADS panel.
04
DisplayPort input
DisplayPort In with HDCP 2.2 and 1.3, alongside three HDMI inputs.
05
Multi-zone display
PIP, PBP (4-way) and Video Tag (4) content layouts.
06
Dust protection rating
IP5X rating listed by the manufacturer.
07
Network control
RJ45 LAN, SNMP, Wake on LAN and Crestron Connected.
08
24/7 operation
Rated for 24/7 operation in portrait or landscape orientation.
Specifications
32 specificationsGeneral
Key FeatureswebOS 8.0, 24/7 operation, IP5X rating, PIP and PBP (4-way), Video Tag (4), Crestron Connected, Cisco certification, SuperSign CMS
Model86UH5Q-E
TypeDigital Signage Display
What's in the BoxRemote controller (2 batteries), power cord, quick setup guide, regulation book, phone to RS232C gender adapter, cable holders (6) and 7-pin cable holder
Display
Aspect Ratio16:9
BacklightEdge
Bezel Size13.4 mm (even)
Brightness700 nits
Color Depth1.07 Billion colors
Color GamutBT.709 95%
Contrast Ratio1,200:1
OrientationPortrait and landscape
Panel TechnologyADS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size86 inch
Viewing Angle178° x 178°
Performance
Duty Cycle24/7
Operating SystemwebOS 8.0
Storage16 GB (eMMC)
Audio
Speaker Output10 W x 2 (built-in)
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 3, DisplayPort In (HDCP 2.2/1.3), RS232C In × 1, RS232C Out × 1, RJ45 (LAN) In × 1, IR In × 1, USB 2.0 Type A × 2, Audio Out
Wi-FiBuilt-in Wi-Fi and Bluetooth
Physical
Dimensions1928.8 x 1099.8 x 29.7 mm (without IR and handle)
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight53.0 kg (head only)
Compliance
CertificationsCB / NRTL, FCC Class B, CE, KC, ePEAT (US)
IP RatingIP5X
Downloads
Manufacturer documents for the LG UH5Q Series 86-inch 4K UHD Digital Signage Display – 86UH5Q-E — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the LG 86UH5Q-E?
The LG 86UH5Q-E is an 86-inch 4K UHD digital signage display with an ADS panel, 700 nits typical brightness and webOS 8.0. It is built for 24/7 operation in commercial spaces and works in portrait or landscape orientation.
Does the 86UH5Q-E have a DisplayPort input?
Yes. The display has a DisplayPort input with HDCP 2.2 and 1.3 support, alongside three HDMI inputs. Two USB 2.0 ports, RS232C in and out, and an RJ45 LAN port are also fitted for connection and control.
What VESA mount does the 86UH5Q-E use?
The 86UH5Q-E uses a 600 x 400 mm VESA standard mount interface. The monitor measures 1928.8 x 1099.8 x 29.7 mm without IR and handle and the head weighs 53.0 kg, so confirm the wall bracket is rated for that weight before installation.
Is the 86UH5Q-E suitable for portrait signage?
Yes. The manufacturer lists portrait and landscape orientation, with screen rotation and external input rotation functions. The IP5X rating is listed for dust protection, and Procure.ae can advise on portrait installation across the UAE.
Can the 86UH5Q-E be managed remotely?
Yes. It supports RJ45 LAN, RS232C, SNMP, Wake on LAN, HDMI-CEC and Crestron Connected, and works with SuperSign CMS for content scheduling and monitoring across multiple displays. LG ConnectedCare is also listed for remote service monitoring.
Can I buy the 86UH5Q-E in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
