LGDigital SignageSKU 55UH5Q-GQ

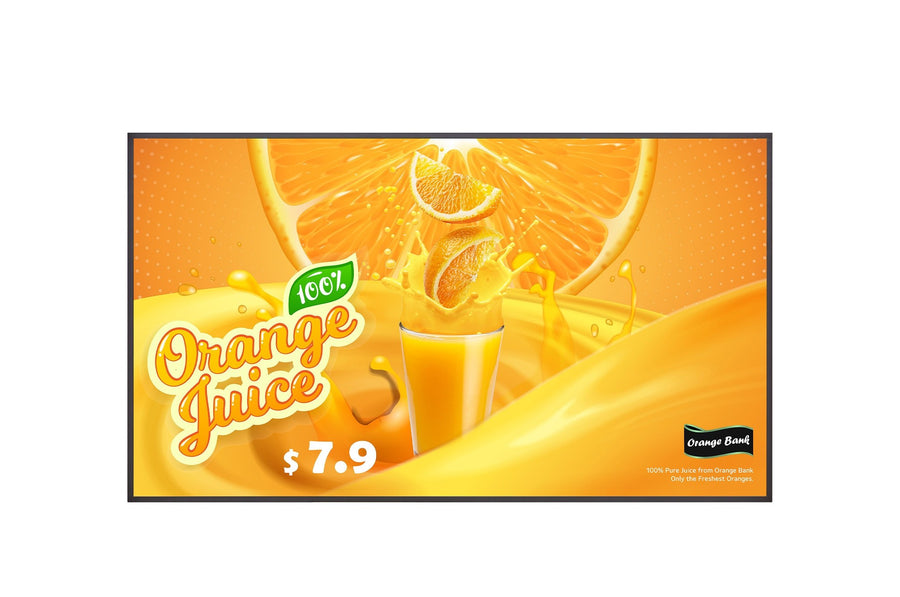

LG UH5Q 55-inch UHD Digital Signage Display – 55UH5Q-GQ
The LG 55UH5Q-GQ is a 55-inch 4K UHD digital signage display for shops, lobbies, corporate reception and classrooms. It offers 3840 x 2160 resolution, 500 nits typical brightness, 24/7 operation and built-in webOS 8.0 with local content scheduling. Procure.ae supplies the LG 55UH5Q-GQ across the UAE with delivery and installation.
The 55UH5Q-GQ uses an ADS panel with 3840 x 2160 native resolution, 500 nits typical brightness, 1,200:1 typical contrast and an 8 ms response time (G to G, typical). Its colour gamut covers BT.709 95% and DCI-P3 80%, and it displays 1.07 billion colours using 8-bit plus FRC. A 178-degree horizontal and vertical viewing angle keeps content readable from the side. Built-in 10 W x 2 speakers and an auto brightness sensor adjust output to the room.
The display suits digital signage networks in retail, hospitality, corporate and education spaces. It runs on webOS 8.0 with 16 GB of internal memory and supports LG SuperSign CMS, SuperSign Control+ and Mobile CMS. Tile mode supports up to 15 x 15 displays for video walls, and PIP and PBP modes are available with one external input. Control options include RS232C, RJ45 LAN, IR in and HDMI-CEC, with Wake on LAN and SNMP for remote management.
Screen Size
55 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
- Native 4K UHD panel
- Continuous operation
- webOS 8.0 platform
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Native 4K UHD panel
3840 x 2160 resolution on an ADS panel with 500 nits typical brightness.
02
Continuous operation
Rated for 24/7 use within an operating range of 0 to 40 °C.
03
webOS 8.0 platform
Built-in webOS 8.0 with 16 GB internal eMMC memory for local playback.
04
Video wall tiling
Tile mode supports up to 15 x 15 displays, with PIP and PBP modes.
05
Remote control
RS232C, RJ45 LAN, IR in and Wake on LAN for control and monitoring.
06
Content management
Works with LG SuperSign CMS, SuperSign Control+ and Mobile CMS.
07
Energy saving
Smart Energy Saving mode draws 72 W (typical) and power-off draws 0.5 W.
08
Flexible mounting
300 x 300 mm VESA interface, with portrait or landscape orientation.
Specifications
27 specificationsGeneral
Key FeaturesPortrait and landscape, Tile mode up to 15 x 15, PIP and PBP, Local content scheduling, Wake on LAN, SNMP, Auto brightness sensor, HDMI-CEC
Model55UH5Q-GQ
TypeDigital Signage Display
Display
Aspect Ratio16:9
Brightness500 nits
Color Depth1.07 billion colours (8-bit + FRC)
Color GamutBT.709 95% (DCI-P3 80%)
Contrast Ratio1,200:1
Panel TechnologyADS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size55 inch
Viewing Angle178° horizontal x 178° vertical
Performance
Operating SystemwebOS 8.0
Storage16 GB
Audio
Audio10 W x 2 speakers
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 3, DisplayPort In × 1, RJ45 LAN × 1, USB 2.0 × 2, RS232C In/Out, IR In
Power
Power Consumption72 W (typical, Smart Energy Saving)
Physical
Dimensions1240.1 x 711.9 x 29.7 mm (W x H x D)
Duty Cycle24/7
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount300 x 300 mm
Weight14.3 kg
Compliance
IP RatingIP5X
Downloads
Manufacturer documents for the LG UH5Q 55-inch UHD Digital Signage Display – 55UH5Q-GQ — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the LG 55UH5Q-GQ a 4K display?
Yes. The LG 55UH5Q-GQ has a 3840 x 2160 (4K UHD) native resolution on a 55-inch ADS panel with a 16:9 aspect ratio and a 60 Hz refresh rate. The 500 nits typical brightness and 178-degree viewing angle keep the content readable from the side of the room.
Can the LG 55UH5Q-GQ run in portrait mode?
Yes. The manufacturer's specifications list portrait and landscape operation, and screen rotation and external input rotation are both supported. This lets you mount the display vertically for menu boards or corridor signage without changing the content source.
Does the LG 55UH5Q-GQ support video walls?
Yes. Tile mode supports up to 15 x 15 displays, so several panels can work together as one large image. The display also offers PIP and PBP modes, though PBP supports only one external input. Confirm the wall layout and mounting frame with Procure.ae before installation.
What mounting does the LG 55UH5Q-GQ use?
It uses a 300 x 300 mm VESA standard mount interface. The monitor measures 1240.1 x 711.9 x 29.7 mm and weighs 14.3 kg without packaging, so confirm the wall or ceiling bracket rating before installation.
Which control and integration options does it have?
The display has RS232C in and out, RJ45 LAN, IR in and HDMI-CEC. It also supports SNMP, Wake on LAN and local network sync for remote monitoring and control. These options let a control system or a central content server manage the display over a network.
Can I buy the 55UH5Q-GQ in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
