LGDigital SignageSKU 55UH5N-E

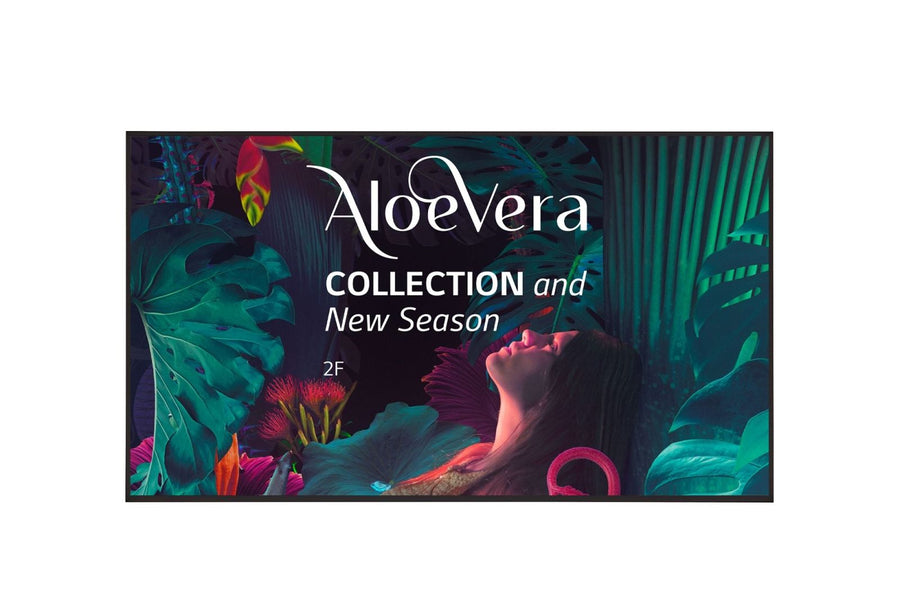

LG UH5N 55-inch 4K UHD Digital Signage Display – 55UH5N-E
The LG 55UH5N-E is a discontinued 55-inch 4K UHD IPS digital signage display for corporate, retail and hospitality use. It offers 500 nits typical brightness, webOS 6.0 and HDMI daisy chaining from its HDMI and DisplayPort inputs. Procure.ae can confirm current availability in the UAE or recommend a current successor model.
The 55UH5N-E has a 55-inch IPS panel with 3840 x 2160 (UHD) resolution, 500 nits typical brightness and a 1,200:1 contrast ratio. Its 10-bit colour depth, 1.07 billion colours and BT.709 95% colour gamut support consistent colour reproduction, and the 8 ms rise and 10 ms fall response times are listed for motion content. The display is rated for 24/7 operation in portrait or landscape. Typical power consumption is 110 W, with 160 W maximum and 77 W in smart energy saving mode.
The 55UH5N-E fits corporate lobbies, retail floors, hospitality venues and video wall layouts across the UAE and the wider GCC. It runs webOS 6.0 with SuperSign CMS, SuperSign Control and Control+, Mobile CMS and Connected Care, and supports PIP, 4-way PBP and tile mode up to 15 x 15. HDMI daisy chaining lets a signal pass from one panel to the next, and Cisco certification and Crestron Inside are listed. The model is discontinued, so check the current LG successor before specifying it for a project.
Screen Size
55 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
- 4K UHD panel
- 500 nits brightness
- Colour depth
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD panel
3840 x 2160 IPS panel on a 55-inch screen.
02
500 nits brightness
500 nits typical with a 1,200:1 contrast ratio.
03
Colour depth
10-bit colour with 1.07 billion colours and BT.709 95% gamut.
04
webOS 6.0 platform
Built-in webOS 6.0 with 16 GB internal memory.
05
Daisy chain
HDMI output passes the signal from HDMI or DisplayPort input to the next panel.
06
Video wall support
Tile mode up to 15 x 15, with PIP and 4-way PBP.
07
Content management
SuperSign CMS, SuperSign Control and Control+, Mobile CMS and Connected Care.
08
Integration
Cisco certification, Crestron Inside and SNMP support.
Specifications
35 specificationsGeneral
Key FeatureswebOS 6.0, HDMI daisy chain, PIP and PBP (4), tile mode up to 15 x 15, SuperSign CMS and Control+, Mobile CMS, Connected Care, Cisco certified
Model55UH5N-E
TypeDigital Signage Display
What's in the BoxRemote controller (2 batteries), power cord, quick start guide, regulation book, phone to RS232C gender, cable holder (2), AC cord holder (1)
Display
Aspect Ratio16:9
Bezel Size8.9 mm top and sides, 12.9 mm bottom
Brightness500 nits
Color Depth10-bit, 1.07 billion colours
Color GamutBT.709 95%
Contrast Ratio1,200:1
OrientationPortrait and landscape
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms rise, 10 ms fall
Screen Size55 inch
Viewing Angle178° x 178°
Performance
Operating SystemwebOS 6.0
Storage16 GB
Audio
Speaker OutputBuilt-in speaker
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 3, DP In × 1, HDMI Out × 1, RS232C In/Out, RJ45 (LAN) In, IR In, USB 2.0 × 1, Audio Out
Wi-FiBuilt-in
Power
Power Consumption110 W (typical), 160 W (max)
Power SourceBuilt-in power
Standby Power0.5 W
Physical
Dimensions1231.4 x 707.2 x 29.7 mm
Duty Cycle24/7
Operating Humidity10% to 80%
Operating Temperature0 to 40 °C
TiltUp to 30° face down
VESA Mount300 x 300 mm
Weight16.1 kg
Compliance
CertificationsCB / NRTL, FCC Class B, CE, KC, ErP (NewErP), Energy Star, ePEAT (US)
IP RatingIP5X
Questions
Can’t find your answer? Ask on WhatsApp
Is the LG 55UH5N-E still available?
The LG 55UH5N-E is a discontinued model. Procure.ae can confirm current availability and recommend the current successor model for your project. Its specifications are listed here for reference when comparing with current models.
Does the 55UH5N-E support daisy chaining?
Yes. It accepts HDMI and DisplayPort input and has an HDMI output, so a signal can pass to the next panel in a daisy chain. The manufacturer lists the daisy chain input as HDMI and DP, and the output as HDMI.
Can it be used in a video wall?
Yes. Tile mode is listed up to 15 x 15 panels, with RS232C sync and local network sync for coordinated playback. The panel is listed with tile mode support up to 15 x 15.
How is the 55UH5N-E mounted?
It uses a 300 x 300 mm VESA standard mount interface, and the manufacturer lists up to 30° face-down tilt. The head weighs 16.1 kg, so use a bracket rated for that load. The body is 29.7 mm deep, with bezels of 8.9 mm top and sides and 12.9 mm bottom.
Which content software does it support?
It supports SuperSign CMS, SuperSign Control, SuperSign Control+, SuperSign WB and SuperSign Cloud, plus Mobile CMS and Connected Care. SuperSign Cloud is listed for cloud-based management. The package includes a remote controller and cable holders.
Can I buy the 55UH5N-E in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
