LGDigital SignageSKU 55UH5F-H

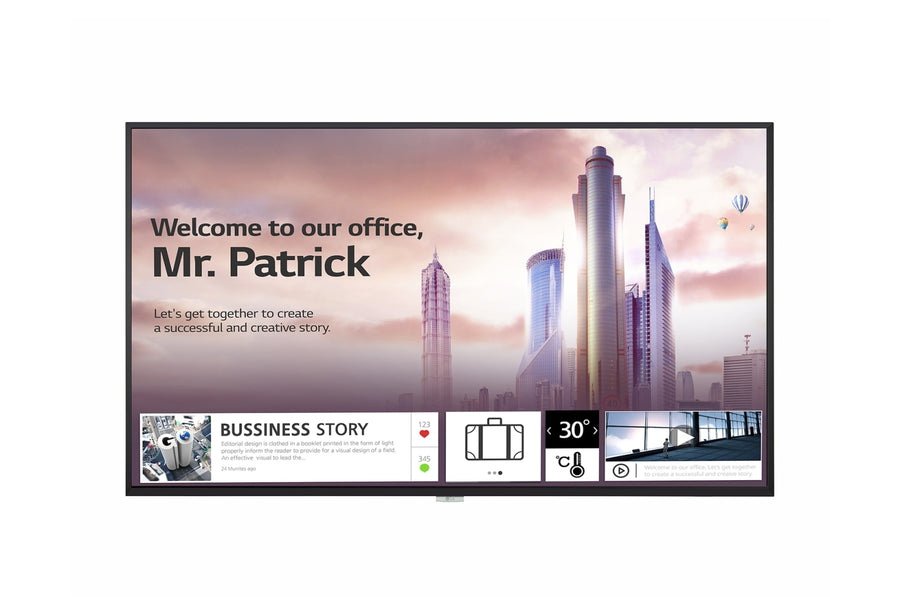

LG UH5F High Haze 55-inch 4K UHD Digital Signage Display – 55UH5F-H
The LG 55UH5F-H is a 55-inch 4K UHD high-haze standard signage display for lobbies, retail floors and corporate reception. It offers 500 nits typical brightness, a 3840 x 2160 IPS panel and webOS 4.1 with SuperSign CMS support. Procure.ae supplies the LG 55UH5F-H across the UAE.
The 55UH5F-H uses a 55-inch IPS panel with 3840 x 2160 resolution, 500 nits typical brightness and a 1,100:1 contrast ratio. Its 8 ms response time and 60 Hz refresh rate suit video playback, and the BT.709 95% colour gamut with 1.07 billion colours supports consistent colour reproduction. Portrait and landscape orientation are supported, and the display is rated for 24/7 operation. Built-in 10 W × 2 speakers provide audio output.
The 55UH5F-H fits lobbies, retail floors, corporate reception and wayfinding across the UAE and the wider GCC. It runs webOS 4.1 with SuperSign CMS, SuperSign Control+ and SuperSign WB, plus Mobile CMS and Connected Care for remote management. It supports PIP, 4-way PBP and tile mode for multi-screen layouts, and works with Crestron Connected systems. The 300 x 300 mm VESA interface and up to 30° face-down tilt suit wall and angled installations.
Screen Size
55 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
- High-haze UHD panel
- 500 nits brightness
- Colour gamut
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
High-haze UHD panel
3840 x 2160 IPS panel on a 55-inch screen.
02
500 nits brightness
500 nits typical with a 1,100:1 contrast ratio.
03
Colour gamut
1.07 billion colours with BT.709 95% colour gamut.
04
webOS 4.1 platform
Built-in webOS 4.1 with 8 GB internal memory.
05
Content management
SuperSign CMS, SuperSign Control+ and SuperSign WB support.
06
Multi-screen layouts
PIP, 4-way PBP, tile mode and four video tags.
07
Remote management
Mobile CMS, Connected Care and Crestron Connected support.
08
Portrait and landscape
Supports both orientations, with up to 30° face-down tilt.
Specifications
35 specificationsGeneral
Key FeatureswebOS 4.1, SuperSign CMS and Control+, SuperSign WB, Mobile CMS, Connected Care, PIP and PBP, Tile mode, Crestron Connected
Model55UH5F-H
TypeDigital Signage Display
What's in the BoxRemote controller (2 batteries), power cord, quick start guide, HDMI cable, regulation book, phone to RS232C gender
Display
Aspect Ratio16:9
Bezel Size9.9 mm top and sides, 14.4 mm bottom
Brightness500 nits
Color Depth1.07 billion colors
Color GamutBT.709 95%
Contrast Ratio1,100:1
OrientationPortrait and landscape
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size55 inch
Viewing Angle178° x 178°
Performance
Operating SystemwebOS 4.1
Storage8 GB
Audio
Speaker Output10 W × 2 (built-in)
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 3, DP In, DP Out, DVI-D In, RJ45 (LAN) In, RS232C In/Out, USB 2.0 × 1, Audio In, Audio Out, IR In
Wi-FiBuilt-in (Wi-Fi and Bluetooth)
Power
Power Consumption84 W (smart energy saving)
Power SourceBuilt-in power
Standby Power0.5 W
Physical
Dimensions1234.4 x 720.9 x 39.9 mm
Duty Cycle24/7
Operating Humidity10% to 80%
Operating Temperature0 to 40 °C
TiltUp to 30° face down
VESA Mount300 x 300 mm
Weight19.0 kg
Compliance
CertificationsCB / NRTL, FCC Class A, CE, KC, ErP (NewErP), Energy Star
IP RatingIP5X
Downloads
Manufacturer documents for the LG UH5F High Haze 55-inch 4K UHD Digital Signage Display – 55UH5F-H — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the LG 55UH5F-H support portrait orientation?
Yes. It supports portrait and landscape orientation, with screen rotation and external input rotation functions for vertical menus and wayfinding screens. The IPS panel has a 178 x 178 viewing angle.
Can the 55UH5F-H run 24/7?
Yes. The manufacturer lists 24/7 operation hours, with an operating temperature of 0 to 40 °C, humidity of 10% to 80% and an IP5X rating. The display includes 8 GB of internal memory.
How is the 55UH5F-H mounted?
It uses a 300 x 300 mm VESA standard mount interface. The manufacturer lists up to 30° face-down tilt, and a head weight of 19.0 kg. Bezels are 9.9 mm at the top and sides and 14.4 mm at the bottom.
Can it connect to a control system or video wall?
Yes. It has RS232C in and out, an RJ45 LAN input and an IR input, with Crestron Connected support. Tile mode is also listed for video wall layouts. The manufacturer also lists RS232C sync for synchronised control.
Which content management software does it support?
It supports SuperSign CMS, SuperSign Control+ and SuperSign WB, plus Mobile CMS and Connected Care for remote management. The manufacturer lists OPS compatibility as piggyback, so an OPS module mounts on the display.
Can I buy the 55UH5F-H in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
