LGDigital SignageSKU 49SM5KC

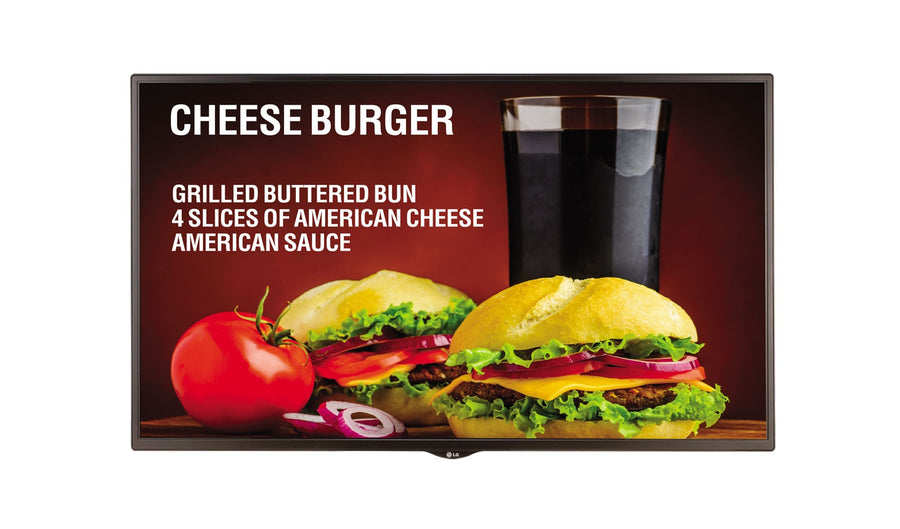

LG SM5K Series 49-inch Full HD Digital Signage Display – 49SM5KC
The LG 49SM5KC is a 49-inch Full HD (1920 x 1080) digital signage display for portrait or landscape use. It is rated at 450 nits, includes a 20 W internal speaker and is OPS-compatible. Procure.ae, an authorised LG reseller, supplies the 49SM5KC across the UAE.
The 49SM5KC has a 49-inch screen with 1,920 x 1,080 Full HD resolution and a brightness rating of 450 nits. It supports portrait and landscape orientation and includes a 20 W internal speaker (10 W x 2, 6 ohm). External control covers RS232C in and out, an RJ input, an IR receiver, a pixel sensor, USB 3.0 and an SD card slot. It is OPS-compatible and supports LG MP500 and MP700 external media players.
The 49SM5KC suits wall-mounted signage in offices, schools and retail spaces, including portrait installations. It uses a 300 x 300 mm VESA interface, measures 1,102.2 x 638.5 x 38.6 mm and weighs 14.1 kg. Smart Energy Saving is rated at 60 W. The operating range is 0 to 40 °C at 10% to 80% humidity. SuperSign-w lite and SuperSign-c are included for content and control. The manufacturer lists this model as discontinued, so Procure.ae can confirm current availability or recommend the current successor.
Screen Size
49 inch
Resolution
1920 x 1080 (Full HD)
Brightness
450 nits
Type
Digital Signage Display
- Full HD 49-inch panel
- 450 nits brightness
- Portrait and landscape
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Full HD 49-inch panel
1,920 x 1,080 resolution on a 49-inch screen.
02
450 nits brightness
Rated at 450 nits for indoor signage.
03
Portrait and landscape
Supports both portrait and landscape orientation.
04
Internal 20 W speaker
Audio output of 20 W (10 W x 2) through a 6 ohm internal speaker.
05
OPS compatible
Accepts OPS-type media modules.
06
Sensors and control ports
RS232C in and out, RJ input, IR receiver, pixel sensor and USB 3.0.
07
SuperSign software
SuperSign-w lite for content and SuperSign-c for control and monitoring.
08
Smart Energy Saving
Smart Energy Saving rating of 60 W, with ENERGY STAR 7.0 listing.
Specifications
20 specificationsGeneral
Key FeaturesPortrait and landscape use, 20 W internal speaker, OPS-type compatible, MP500/MP700 media player support, SuperSign-w lite, SuperSign-c, ENERGY STAR 7.0
Model49SM5KC
TypeDigital Signage Display
What's in the BoxRemote controller (2 batteries), power cord, QSG, RGB cable, regulation book, phone to RS232C gender, memory cover
Display
Bezel Size11.9 mm (top, left, right), 18 mm (bottom)
Brightness450 nits
OrientationPortrait and landscape
Resolution1920 x 1080 (Full HD)
Screen Size49 inch
Audio
Speaker Output20 W (10 W x 2), 6 ohm internal speaker
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotYes (OPS-type compatible)
PortsRS232C in/out, RJ input, IR receiver, pixel sensor, USB 3.0, SD card slot
Power
Power Consumption60 W (smart energy saving)
Physical
Dimensions1102.2 x 638.5 x 38.6 mm
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount300 x 300 mm
Weight14.1 kg
Compliance
CertificationsUL, cUL, CB, TÜV, KC, FCC Class A, CE, KCC, ENERGY STAR 7.0
Downloads
Manufacturer documents for the LG SM5K Series 49-inch Full HD Digital Signage Display – 49SM5KC — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What are the screen size, resolution and brightness of the 49SM5KC?
The 49SM5KC has a 49-inch screen with 1,920 x 1,080 Full HD resolution and a 450 nits brightness rating. It measures 1,102.2 x 638.5 x 38.6 mm and weighs 14.1 kg.
Does the 49SM5KC have speakers?
Yes. It includes a 20 W internal speaker output (10 W x 2) with a 6 ohm speaker for built-in audio. The unit also has RS232C, RJ input and IR receiver for control, and Procure.ae can advise on audio needs for your room.
Can the 49SM5KC be used in portrait orientation?
Yes. It supports both portrait and landscape orientation, so it suits vertical menu boards and wayfinding. Confirm the orientation with your bracket and content layout before installation. Procure.ae supplies delivery and installation across the UAE and the wider MEA region.
Which VESA mount does the 49SM5KC use?
It uses a 300 x 300 mm VESA mount interface. Check that your bracket matches this pattern and the 14.1 kg weight. Procure.ae supplies delivery and installation across the UAE and the wider MEA region.
Is the 49SM5KC OPS-compatible?
Yes. It accepts OPS-type media modules and also supports LG MP500 and MP700 external media players for content playback. Procure.ae can advise which option suits your installation across the UAE.
Can I buy the 49SM5KC in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
