LGMeeting Room SolutionsSKU 55CT5WN-Z

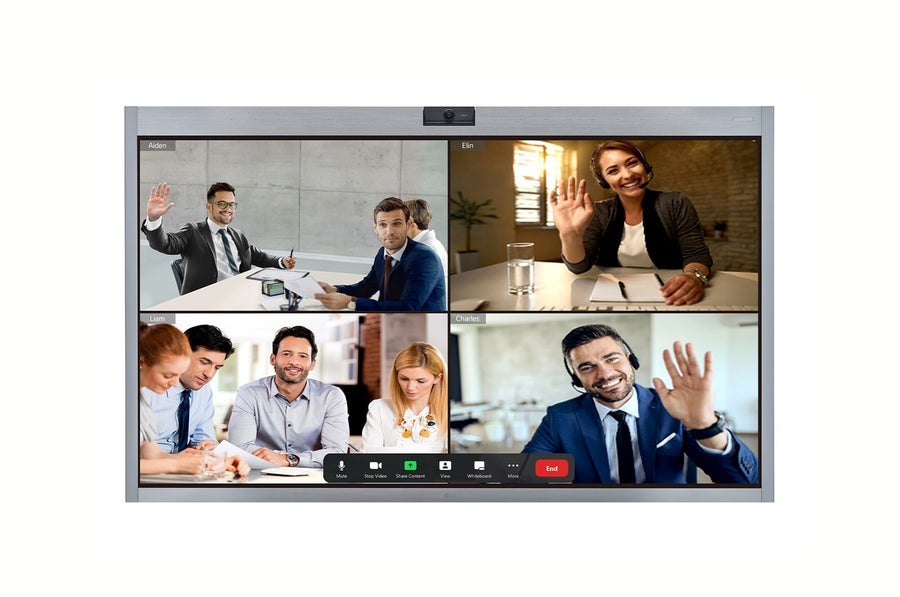

LG One:Quick Works 55-inch All-in-One Video Conferencing Display – 55CT5WN-Z
The LG 55CT5WN-Z is a 55-inch all-in-one video conferencing display for Zoom Rooms meeting spaces. It combines a 4K UHD touch display with a built-in camera, a 10-element microphone array and Zoom Rooms preloaded on Windows 10 IoT Enterprise. Procure.ae supplies the LG 55CT5WN-Z in the UAE.
The LG 55CT5WN-Z is built around a 55-inch 3,840 x 2,160 (4K UHD) U-IPS panel with 450 nits brightness, 1,000:1 contrast and 10-bit colour depth. Its 10-point multi-touch screen uses a USB 1.1 touch interface and has touch accuracy of 3.5 mm or better. The built-in camera has a 120-degree field of view, 4x ePTZ zoom and video framing. A 10-element beamforming microphone array picks up voices up to 6 metres away, and two 10 W speakers complete the all-in-one design.
The 55CT5WN-Z runs Windows 10 IoT Enterprise with Zoom Rooms preloaded, powered by an AMD Ryzen Embedded V1605B processor with 8 GB RAM and a 128 GB SSD. It connects over 802.11ac 2x2 Wi-Fi and Bluetooth 5.0. It mounts on a 300 x 300 mm VESA interface, and its dimensions with stand are 1265 x 815 x 290 mm. The manufacturer rates it for operation from 0 to 40 °C, which suits meeting rooms, huddle rooms and boardrooms.
Screen Size
55 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
450 nits
Type
All-in-One Video Conferencing Display
- 4K UHD touch display
- Built-in camera
- Microphone array
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD touch display
3,840 x 2,160 U-IPS panel with 10-point multi-touch.
02
Built-in camera
120-degree field of view with 4x ePTZ zoom and video framing.
03
Microphone array
10 elements with beamforming and a 6 m pickup range.
04
Zoom Rooms ready
Zoom Rooms preloaded on Windows 10 IoT Enterprise.
05
Built-in computing
AMD Ryzen Embedded V1605B, 8 GB RAM and 128 GB SSD.
06
Wireless connectivity
802.11ac 2x2 Wi-Fi and Bluetooth 5.0.
07
Built-in speakers
two 10 W speakers.
08
Display performance
450 nits brightness, 1,000:1 contrast and 10-bit colour depth.
Specifications
33 specificationsGeneral
Key Features4K UHD display, built-in camera and microphone array, Zoom Rooms preloaded, 10-point touch, Wi-Fi and Bluetooth 5.0
Model55CT5WN-Z
TypeAll-in-One Video Conferencing Display
Display
Aspect Ratio16:9
Brightness450 nits
Camera120° field of view, 4x ePTZ zoom
Color Depth10-bit, 1.07 billion colors
Color GamutNTSC 72%
Contrast Ratio1,000:1
Panel TechnologyU-IPS
Resolution3840 x 2160 (4K UHD)
Response Time9 ms
Screen Size55 inch
Touch Accuracy3.5 mm
Touch Points10-point multi-touch
Touch Response Time35 ms
Viewing Angle178° H x 178° V
Performance
GraphicsAMD Radeon Vega
Operating SystemWindows 10 IoT Enterprise
ProcessorAMD Ryzen Embedded V1605B
RAM8 GB
Storage128 GB SSD
Audio
Microphone10-element array, beamforming
Pickup Range6 m
Speaker Output10 W x 2
Connectivity
BluetoothBluetooth 5.0
Input Voltage100–240 V AC, 50/60 Hz
Wi-Fi802.11ac 2x2
Physical
Dimensions1265 x 769.5 x 61.8 mm
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount300 x 300 mm
Weight26 kg
Downloads
Manufacturer documents for the LG One:Quick Works 55-inch All-in-One Video Conferencing Display – 55CT5WN-Z — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the LG 55CT5WN-Z support Zoom Rooms?
Yes. Zoom Rooms is preloaded on the all-in-one unit, which runs Windows 10 IoT Enterprise. The display, camera, microphone array and speakers are built in, so the system runs Zoom Rooms without a separate computer.
What camera and microphone does the LG 55CT5WN-Z have?
Yes. The camera has a 120-degree field of view, 4x ePTZ zoom and video framing. The 10-element beamforming microphone array has a 6-metre pickup range, so it covers a meeting table from a single unit.
What room size suits the LG 55CT5WN-Z?
The manufacturer's specifications do not state a recommended room size. The 120-degree camera field of view and 6-metre microphone pickup range are the reference points for coverage in a meeting room.
Can the LG 55CT5WN-Z be wall mounted?
Yes. It has a 300 x 300 mm VESA standard mount interface. Its monitor dimensions are 1265 x 769.5 x 61.8 mm and the head weighs 26 kg. Dimensions with the stand are 1265 x 815 x 290 mm.
Does the LG 55CT5WN-Z support touch input from a PC?
Yes. The touch interface uses USB 1.1 and supports Windows 10 or higher, with up to 10 touch points. It responds to objects from 8 mm in diameter, and the touch pen is included in the box.
