LGFloor Standing KiosksSKU 32TNF5P

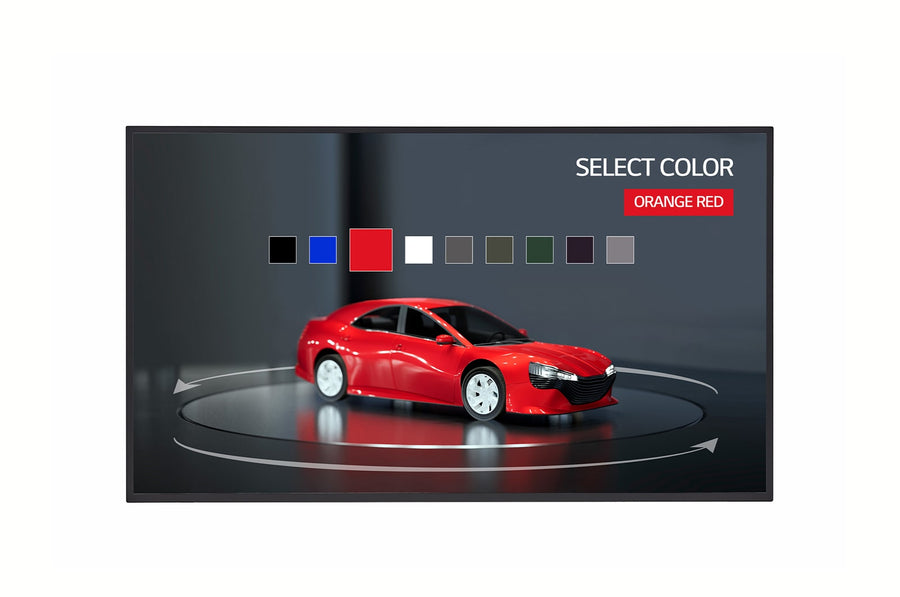

LG Kiosk Touch TNF5P 32-inch Digital Signage Kiosk – 32TNF5P
The LG Kiosk Touch TNF5P 32-inch (model 32TNF5P) is a Full HD touch kiosk display for information points, wayfinding and self-service. It offers 500 nits brightness, 10-point touch and webOS 6.0 with embedded content management. Procure.ae supplies the 32TNF5P in the UAE, with quotes, delivery and installation.
The 32TNF5P uses a 32-inch IPS panel with a native 1920 x 1080 (Full HD) resolution, 500 nits brightness, a 1,000:1 contrast ratio and 178 x 178 degree viewing angles. Touch supports up to 10 points with 3.5 mm accuracy. The display is rated for 24/7 operation with a 50,000-hour minimum life. It runs webOS 6.0 with 8 GB internal memory, and its embedded CMS includes local content scheduling and group management.
The 32TNF5P suits lobbies, retail floors and waiting areas where a portrait or landscape kiosk screen is needed. It has HDMI (2) inputs with HDCP 1.4, RS232C and RJ45 control, an IR input and a USB 2.0 touch connection. Management options include SuperSign CMS, SuperSign Control+, SuperSign Cloud, Mobile CMS, SNMP and Crestron Connected support. The VESA interface is 200 x 200 mm, and the head weighs 5.8 kg.
Screen Size
32 inch
Resolution
1920 x 1080 (Full HD)
Brightness
500 nits
Type
Touch Kiosk Display
- Full HD Touch
- Brightness and Viewing
- Continuous Operation
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Full HD Touch
32-inch IPS panel at 1920 x 1080 with 10-point touch.
02
Brightness and Viewing
500 nits brightness and 178 x 178 degree viewing angles.
03
Continuous Operation
Rated for 24/7 use with a 50,000-hour minimum life.
04
webOS Platform
webOS 6.0 with 8 GB internal memory.
05
Embedded Content Management
Local content scheduling, group management and Play via URL.
06
Remote Management
SNMP, SuperSign CMS and Mobile CMS, with Crestron Connected and Cisco certification.
07
Built-in Sensors
Temperature sensor and gyro sensor built into the display.
08
Orientation
Portrait and landscape use, with screen rotation.
Specifications
34 specificationsGeneral
ControlsRS232C, RJ45 LAN, IR
Key FeatureswebOS 6.0, embedded CMS, Crestron Connected, Cisco certification, temperature and gyro sensors, portrait and landscape, 24/7 operation, 50,000-hour minimum life
Model32TNF5P
TypeTouch Kiosk Display
What's in the BoxPower cord (1.55 m), USB cable (Type A to Type B, 1.8 m), remote controller (2 batteries), RS232C gender adapter, IR receiver, user manual, quick start guide
Display
Brightness500 nits
Color Depth8-bit (16.7 million colors)
Color GamutNTSC 72%
Contrast Ratio1,000:1
OrientationPortrait and landscape
Panel TechnologyIPS
Resolution1920 x 1080 (Full HD)
Response Time9 ms (G to G)
Screen Size32 inch
Touch Accuracy3.5 mm
Touch Points10-point multi-touch
Touch Response Time90 ms (Paint app, Windows 10 PC)
Viewing Angle178° x 178°
Performance
Duty Cycle24/7
Operating SystemwebOS 6.0
Storage8 GB internal memory (2.48 GB available)
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 2 (HDCP 1.4), RS232C In, RJ45 LAN, IR In, Audio Out
Touch USB PortsUSB 2.0 Type-B × 1
USB PortsUSB 2.0 Type-A × 1
Power
Power Consumption34 W (Smart Energy Saving, 70%)
Standby Power0.5 W
Physical
Dimensions723.0 x 419.4 x 39.1 mm
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
Shipping Dimensions812 x 510 x 142 mm
VESA Mount200 x 200 mm
Weight5.8 kg (head only)
Compliance
CertificationsCB, NRTL, FCC Class A, CE, KC
Downloads
Manufacturer documents for the LG Kiosk Touch TNF5P 32-inch Digital Signage Kiosk – 32TNF5P — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the 32TNF5P suitable for portrait mounting?
Yes. The 32TNF5P supports both portrait and landscape orientation, and screen rotation is supported as well. Its VESA interface is 200 x 200 mm, and the head weighs 5.8 kg, so the mount should be rated for that weight.
Does the 32TNF5P run on webOS?
Yes. It runs webOS 6.0 with 8 GB internal memory. Its embedded CMS handles local content scheduling and group management, and SuperSign CMS, SuperSign Control+ and SuperSign Cloud are also listed as supported.
Does the 32TNF5P support touch?
Yes. Touch supports up to 10 points, with 3.5 mm accuracy and a 6 mm minimum object size. The touch interface is USB 2.0, and the manufacturer lists Windows 10 and 11 and Android as supported operating systems.
Can the 32TNF5P be controlled over a network?
Yes. The 32TNF5P has an RJ45 LAN input, an RS232C input and SNMP support, and it supports Control Manager and Connected Care tools. An IR receiver is included with the unit.
What is the 32TNF5P's power use?
The 32TNF5P uses 34 W in Smart Energy Saving mode at 70% and 0.5 W in DPM and power-off modes. It runs on 100 to 240 V AC at 50/60 Hz.
