LGInteractive Flat PanelsSKU 86TN3F

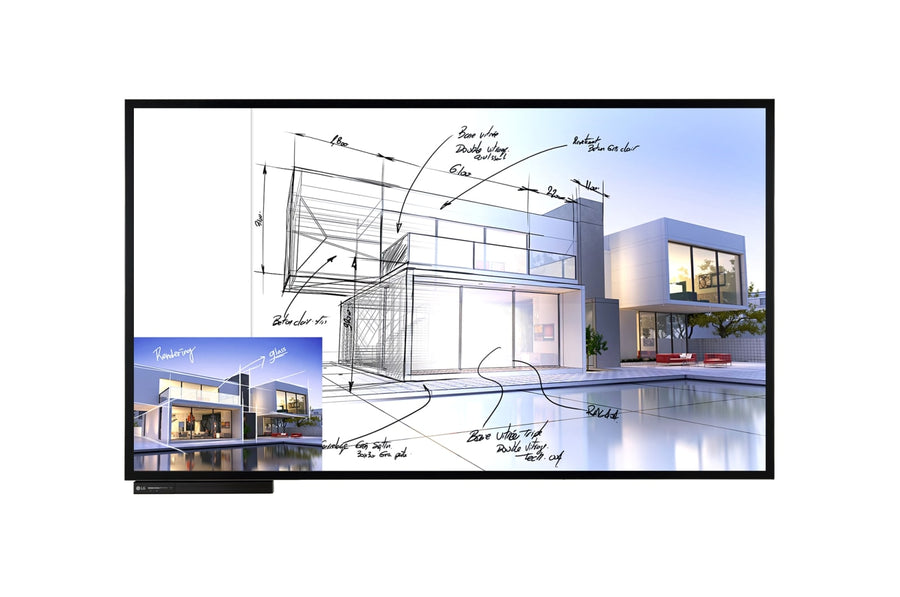

LG Interactive Digital Board 86-inch Interactive Flat Panel – 86TN3F
The LG 86TN3F is an 86-inch 4K UHD interactive flat panel, sold as the LG Interactive Digital Board, for classrooms and meeting rooms. It has in-cell touch with up to 20 finger points on Windows, 1.5 mm accuracy and 350 nits typical brightness. Procure.ae supplies the LG 86TN3F in the UAE.
The 86TN3F has a 3,840 x 2,160 (4K UHD) IPS panel with 178º x 178º viewing angles, 1,000:1 contrast and 350 nits typical brightness with protection glass. Its in-cell touch layer supports up to 20 finger points on Windows, 10 on webOS and 2 active pen points, with 1.5 mm accuracy and 70 ms touch response on a Windows 10 PC. Built-in speakers are rated at 10 W per channel, the response time is 8 ms (G to G), and the rated life is 50,000 hours typical.
The panel is landscape-only and accepts an optional OPS kit (KT-OPSF) for a plug-in computer. Windows 7 Professional, 8.1 and 10 are listed for touch support, and the IDB App is included. Inputs are HDMI (3), DisplayPort and DVI-D, with USB 2.0 and USB Type-C ports plus two touch outputs. RS232C in and out allows room control, and the 600 x 400 mm VESA interface suits a fixed mount rated for 66.7 kg. Typical power draw is 360 W.
Screen Size
85.6 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits (typical, with protection ...
Touch Technology
In-cell
- 4K UHD touch display
- Finger and pen input
- 1.5 mm touch accuracy
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD touch display
3,840 x 2,160 native resolution with in-cell touch.
02
Finger and pen input
Up to 20 finger points on Windows and 2 active pen points.
03
1.5 mm touch accuracy
Touch accuracy is listed at 1.5 mm over a USB 2.0 interface.
04
Built-in speakers
Two channels rated at 10 W each for presentation audio.
05
OPS compatible
Compatible with an optional OPS kit (KT-OPSF) for a plug-in computer.
06
Video and USB inputs
HDMI (3), DisplayPort, DVI-D, USB 2.0 and USB Type-C connections.
07
Room control
RS232C in and out for control integration.
08
Pens and IDB App
Two touch pens, 12 pen tips and IDB App support are included.
Specifications
33 specificationsGeneral
CompatibilityWindows 7 Professional, Windows 8.1, Windows 10
Key Features4K UHD, in-cell touch, 20-point finger input on Windows, 2-point active pen, 1.5 mm accuracy, 10 W speakers per channel, OPS-compatible, IDB App
Model86TN3F
TypeInteractive Flat Panel
What's in the BoxRemote controller, power cord, quick start guide, HDMI cable (3 m), regulation book, RS232C gender adapter, touch pens (2), pen tips (12), tip remover (2), USB Type-C cable, ferrite core filter
Display
Aspect Ratio16:9
Bezel Size28.8 mm (set, all sides)
Brightness350 nits (typical, with protection glass)
Contrast Ratio1,000:1
OrientationLandscape
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size85.6 inch
Touch Accuracy1.5 mm
Touch Points20-point finger (Windows), 10-point finger (webOS), 2-point active pen
Touch Response Time70 ms (Windows 10 PC)
Touch TechnologyIn-cell
Viewing Angle178º x 178º
Performance
Duty Cycle16 hours a day
Audio
Speaker Output10 W per channel (built-in)
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotOPS-compatible (optional KT-OPSF kit)
PortsHDMI In × 3, DisplayPort In × 1, DVI-D In × 1, RS232C In/Out
USB PortsUSB 2.0 × 2, USB Type-C (USB 2.0) × 1, Touch Out USB 2.0 Type-B × 2
Power
Power Consumption360 W typical, 420 W maximum
Physical
ColorBlack
Dimensions1952.6 x 1164.1 x 86.4 mm (W x H x D)
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight66.7 kg
Compliance
CertificationsCB / NRTL, FCC Class A, CE, KC
Downloads
Manufacturer documents for the LG Interactive Digital Board 86-inch Interactive Flat Panel – 86TN3F — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the 86TN3F support pen writing and multi-touch?
Yes. The in-cell touch layer supports up to 20 finger points on Windows, 10 on webOS and 2 active pen points. Accuracy is listed at 1.5 mm, and the package includes two touch pens with 12 spare pen tips for writing and annotation.
Which operating systems support the touch function?
Windows 7 Professional, Windows 8.1 and Windows 10 are listed as supported. Touch response is listed at 70 ms on a Windows 10 PC, and webOS supports up to 10 finger points.
Can I add a plug-in computer to the 86TN3F?
Yes, through an optional OPS kit (KT-OPSF). The specifications list the 86TN3F as OPS-type compatible, and the kit is an optional accessory rather than part of the panel package. Contact Procure.ae to confirm the OPS configuration for your room.
What wall-mounting details apply?
It uses a 600 x 400 mm VESA mount interface. The body measures 1,952.6 x 1,164.1 x 86.4 mm and weighs 66.7 kg, so the mount must be rated for that load. Confirm the wall or stand structure before installation.
Which video and control connections are included?
It has HDMI (3), DisplayPort and DVI-D video inputs, plus USB 2.0 and USB Type-C ports. Two touch outputs carry touch data to a PC, and RS232C in and out support control integration with room systems.
