LGInteractive Flat PanelsSKU 86TR3E

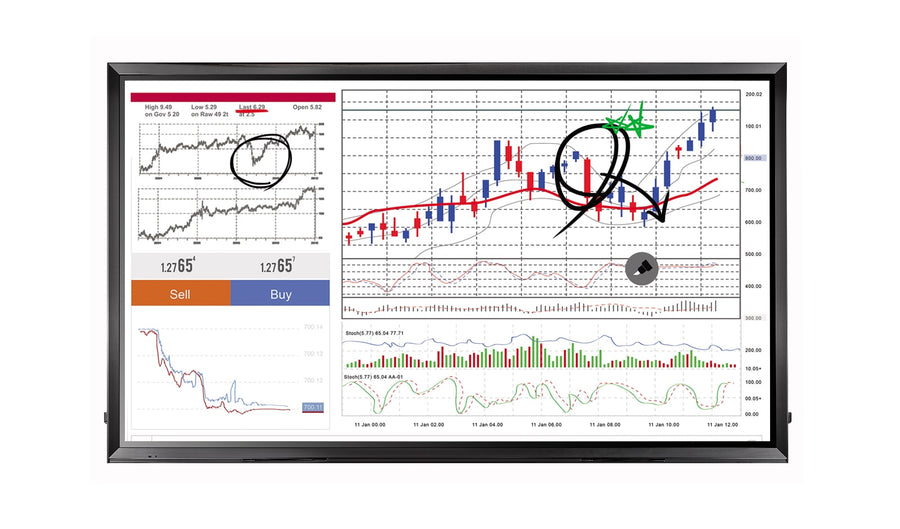

LG CreateBoard TR3E 86-inch Interactive Flat Panel – 86TR3E
The LG CreateBoard TR3E 86-inch (model 86TR3E) is an interactive digital board for meeting rooms, classrooms and managed content displays. It offers InGlass touch with 20-point multi-touch, 410 nits typical module brightness and SuperSign Premium and SuperSign Link software. Procure.ae can confirm current availability of the 86TR3E in the UAE.
The 86TR3E has an 86-inch screen with InGlass touch rated at 2 mm accuracy and up to 20 touch points. Module brightness is 410 nits typical. Inputs include HDMI (3), DisplayPort, DVI-D, RGB, audio, USB 3.0, USB 2.0 and an OPS USB 2.0 input. Touch output runs over two USB 2.0 Type-B ports, so touch data can return to a connected computer. The display works with SuperSign Premium content management software, and SuperSign Link provides control and monitoring.
The 86TR3E suits meeting rooms, classrooms and managed content displays. SuperSign Premium handles content management, and SuperSign Link handles control and monitoring. The head weighs 85.8 kg and the VESA interface is 600 x 400 mm, so the mount and lifting plan must be rated for that weight. It includes a remote controller, two touch pens, an RS232C gender adapter and two eyebolts.
Screen Size
86 inch
Brightness
410 nits (typical, module level)
Touch Technology
InGlass
Type
Interactive Digital Board
- InGlass Touch
- Module Brightness
- Input Options
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
InGlass Touch
InGlass touch with 20-point multi-touch and 2 mm accuracy.
02
Module Brightness
410 nits typical at module level.
03
Input Options
HDMI (3), DisplayPort, DVI-D, RGB, audio, USB 3.0 and USB 2.0 inputs.
04
Management Software
SuperSign Premium content management and SuperSign Link control and monitoring.
05
Touch Output
Two USB 2.0 Type-B touch outputs for connection to a computer.
06
VESA Mounting
600 x 400 mm VESA mount interface.
07
Accessories
Remote controller, two touch pens, two eyebolts and an RS232C gender adapter.
08
Operating Range
0 to 40 °C and 10% to 80% humidity.
Specifications
21 specificationsGeneral
ApplicationSuperSign Premium (content management), SuperSign Link (control and monitoring)
Key FeaturesInGlass touch, 20-point multi-touch, 410 nits module brightness, SuperSign Premium, SuperSign Link, OPS USB 2.0 input
Model86TR3E
TypeInteractive Digital Board
What's in the BoxRemote controller (2 batteries), power cord, quick start guide, HDMI cable (3 m), regulation book, RS232C gender adapter, two touch pens, two eyebolts
Display
Bezel Size50.7 mm top, left and right; 62.2 mm bottom
Brightness410 nits (typical, module level)
Screen Size86 inch
Touch Accuracy2 mm
Touch Points20-point multi-touch
Touch TechnologyInGlass
Connectivity
PortsHDMI In × 3, DisplayPort, DVI-D, RGB, Audio In
Touch USB PortsUSB 2.0 Type-B × 2
USB PortsUSB 3.0, USB 2.0, OPS USB 2.0
Physical
Dimensions2026.9 x 1180.3 x 79.5 mm (without handle)
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
Shipping Dimensions2190 x 1470 x 371 mm
Shipping Weight114.6 kg (packed)
VESA Mount600 x 400 mm
Weight85.8 kg (head only)
Downloads
Manufacturer documents for the LG CreateBoard TR3E 86-inch Interactive Flat Panel – 86TR3E — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the LG 86TR3E have multi-touch?
Yes. The 86TR3E uses InGlass touch with up to 20 touch points and 2 mm touch accuracy. Two USB 2.0 Type-B touch outputs connect the touch function to a computer, and the touch interface is listed as USB 2.0.
Which inputs does the 86TR3E have?
It has HDMI (3), DisplayPort, DVI-D, RGB and audio inputs, plus USB 3.0 and USB 2.0 ports and an OPS USB 2.0 input. The manufacturer's specifications list these inputs for the 86-inch model, so confirm the setup with Procure.ae before ordering.
Does the 86TR3E include management software?
Yes. It includes SuperSign Premium content management software and SuperSign Link control and monitoring software. Both are listed in the manufacturer's specifications for this model, and a remote controller is included for basic operation.
What mounting does the 86TR3E need?
The 86TR3E has a VESA mount interface of 600 x 400 mm. Its head weighs 85.8 kg and the packed weight is 114.6 kg, so the mount must be rated for that load. Procure.ae can confirm the mounting option and arrange installation across the UAE.
Is the 86TR3E suitable for a meeting room or classroom?
Yes. Its 86-inch screen, 20-point touch and SuperSign software suit meeting rooms and classrooms. It is listed for 0 to 40 °C and 10% to 80% humidity, so room conditions should fall within that range.
Can I buy the 86TR3E in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
