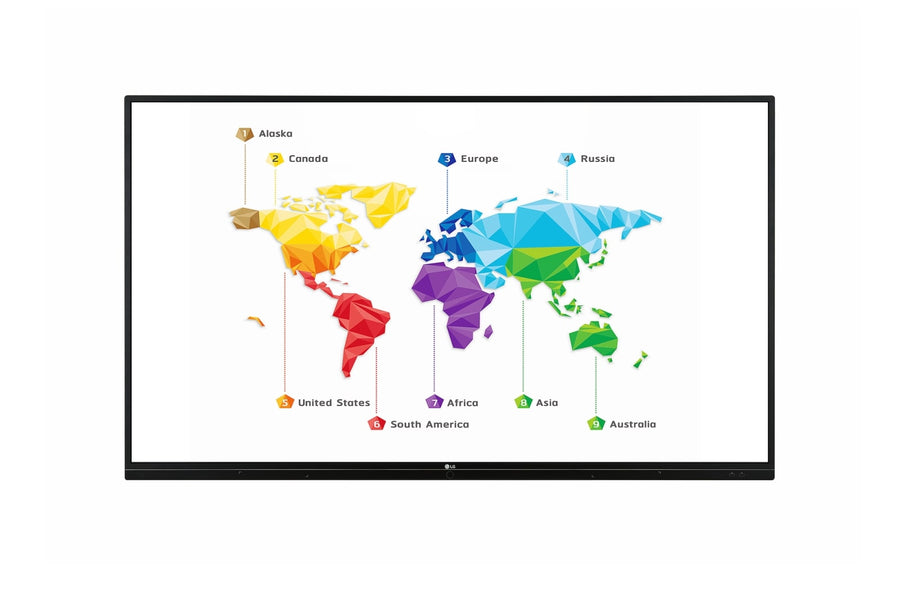

LG CreateBoard TR3BF 86-inch Interactive Flat Panel – 86TR3BF
The LG CreateBoard TR3BF 86-inch (model 86TR3BF) is a UHD interactive flat panel with infrared touch, 20-point multi-touch and 330 nits brightness with protection glass. It suits meeting rooms and classrooms that use Windows, Android or macOS sources. Procure.ae can confirm current availability of the 86TR3BF in the UAE.
The 86TR3BF has an 86-inch IPS panel with a native 3840 x 2160 (4K UHD) resolution, 330 nits typical brightness with protection glass, a 1,100:1 contrast ratio and an 8 ms (G to G) response time. Infrared touch supports up to 20 touch points with 1.5 mm accuracy, and embedded writing software supports up to 10 writing points. Two writing pens are included. The rated lifetime is 30,000 hours minimum, based on 16 hours of operation per day.
The 86TR3BF is landscape only and has three HDMI inputs, an RGB input, an audio input, RS232C and RJ45 control, and one HDMI output. It is OPS Type compatible and supports Windows 7, 8, 10 and XP, Linux, macOS and Android, with one-point touch on Windows XP, Linux and macOS. Its VESA interface is 800 x 600 mm and the head weighs 67 kg, so the mount must be rated for that load.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
330 nits (typical, with protection ...
Touch Technology
Infrared
- Infrared Touch
- 4K UHD Panel
- Brightness
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Infrared Touch
IR touch with up to 20 touch points and 1.5 mm accuracy.
02
4K UHD Panel
Native 3840 x 2160 (4K UHD) resolution on a 16:9 IPS panel.
03
Brightness
330 nits typical with protection glass and a 1,100:1 contrast ratio.
04
Embedded Writing
Writing software and two pens, with up to 10 writing points.
05
Input Options
Three HDMI inputs, an RGB input, and USB 3.0 and USB 2.0 ports.
06
Built-in Speakers
24 W speaker output (12 W + 12 W) with optical and audio outputs.
07
OPS Compatible
OPS Type compatible, with one HDMI output.
08
Rated Lifetime
30,000 hours minimum life, based on 16 hours of operation per day.
Specifications
35 specificationsGeneral
CompatibilityWindows 7/8/10/XP, Linux, macOS, Android
Key FeaturesInfrared touch, 20-point multi-touch, 330 nits with protection glass, embedded writing software, OPS compatible, 24 W speakers, 30,000-hour minimum life, Windows and Android support
Model86TR3BF
TypeInteractive Flat Panel
What's in the BoxPower cord, USB cable (Type A to Type B), HDMI cable, two writing pens, remote control, user manual, quick start guide
Display
Aspect Ratio16:9
Bezel Size17.7 mm top and sides, 45.7 mm bottom
Brightness330 nits (typical, with protection glass)
Contrast Ratio1,100:1
OrientationLandscape
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms (G to G)
Screen Size86 inch
Touch Accuracy1.5 mm
Touch Points20-point multi-touch, 10 writing points
Touch Response Time60 ms (Android) / 100 ms (Windows)
Touch TechnologyInfrared
Viewing Angle178° x 178°
Performance
Duty Cycle16 hours/day
Audio
Speaker Output24 W (12 W + 12 W)
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotYes (OPS Type compatible)
PortsHDMI In × 3, RGB In, Audio In, HDMI Out × 1, Optical Out, RS232C In, RJ45 LAN
Touch USB PortsUSB 2.0 Type-B × 2
USB PortsUSB 3.0 × 3, USB 2.0 × 3
Power
Power Consumption365 W (typical), 419 W (maximum)
Physical
Dimensions1957 x 1160 x 86 mm
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
Shipping Dimensions2230 x 1499 x 285 mm
Shipping Weight109 kg (packed)
VESA Mount800 x 600 mm
Weight67 kg (head only)
Compliance
CertificationsCB, NRTL, FCC Class A, CE
Downloads
Manufacturer documents for the LG CreateBoard TR3BF 86-inch Interactive Flat Panel – 86TR3BF — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the LG 86TR3BF support touch writing?
Yes. The 86TR3BF uses infrared touch with up to 20 touch points and up to 10 writing points. Embedded writing software and two writing pens are included, and the manufacturer lists 1.5 mm touch accuracy.
Can the 86TR3BF connect to a Windows or Mac computer?
Yes. The 86TR3BF supports Windows 7, 8, 10 and XP, Linux, macOS and Android. On Windows XP, Linux and macOS, touch works as one-point touch. It has three HDMI inputs and three USB 3.0 ports for connection.
Is the 86TR3BF suitable for a classroom or meeting room?
Yes. Its 86-inch screen, 20-point touch and writing software suit classrooms, training rooms and meeting rooms. The 178 x 178 degree viewing angle and 16 hours of daily operation support shared use.
What mounting does the 86TR3BF need?
The 86TR3BF has a VESA mount interface of 800 x 600 mm and a head weight of 67 kg, with a packed weight of 109 kg. The mount must be rated for that load. Procure.ae can confirm the mounting option for your site and arrange installation across the UAE.
Does the 86TR3BF work with an OPS PC module?
Yes. The 86TR3BF is OPS Type compatible, so a compatible OPS module can be fitted to run applications on the display. The OPS module must match the slot specification, so Procure.ae can confirm compatibility before ordering.
