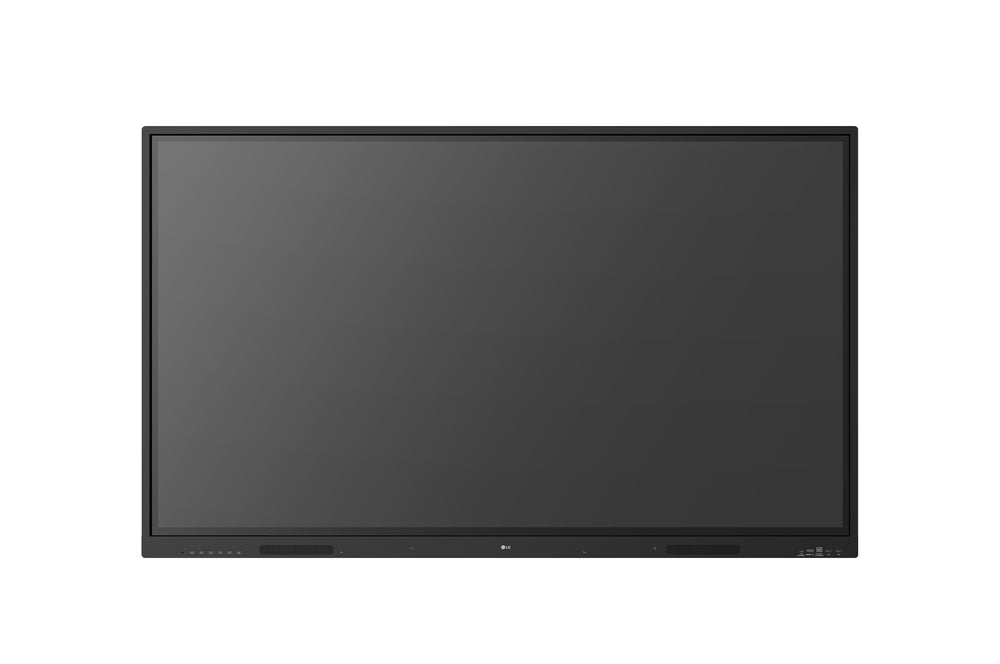

LG CreateBoard Standard 86 inch – Model 86TR3DQ
The LG CreateBoard Standard 86 inch – Model 86TR3DQ is a interactive flat panel available in the UAE from Procure.ae.
The LG CreateBoard Standard 86 inch – Model 86TR3DQ is the premium choice for collaborative classrooms and professional meeting spaces. With an expansive 86-inch interactive display , this advanced digital whiteboard offers ultra-clear 4K UHD resolution and responsive multi-touch technology for seamless user interaction. Designed for both education and corporate environments, the LG CreateBoard Standard integrates effortlessly with popular smart classroom solutions and video conferencing platforms . Its intuitive interface and robust connectivity, including HDMI, USB, and wireless sharing,.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Screen Size
86 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Weight
54.1 kg
- Ultra-Large 86-Inch Display
- 4K UHD Resolution
- Multi-Touch Capability
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Ultra-Large 86-Inch Display
Provides expansive screen real estate for clear visuals in any room size.
02
4K UHD Resolution
Delivers stunning image clarity for text, images, and multimedia content.
03
Multi-Touch Capability
Supports up to 20 simultaneous touch points for interactive teamwork.
04
Intuitive User Interface
Easy navigation and access to frequently used tools and apps.
05
Anti-Glare Tempered Glass
Reduces reflections and enhances visibility in bright environments.
06
Wireless Screen Sharing
Compatible with multiple devices for seamless content sharing.
07
Robust Connectivity Options
Includes HDMI, USB, and LAN ports for versatile integration.
08
Integrated Annotation Tools
Mark up documents, images, and presentations in real time.
Specifications
44 specificationsGeneral
Key FeaturesWake on LAN, NFC card reader, Sensors: Auto brightness
What's in the BoxPower Cord (3 M × 1), USB Cable (Type A-Type B) 5 M × 1, USB Type-C Cable (C to C) 1.8 M × 1, HDMI Cable (3 M × 1), Writing Pen × 2, User Manual, QSG, Carton Box, Remote Controller, Wi-Fi Module
Display
BacklightDirect LED
Brightness400 nits
Camera8 (Built-in)
Color Depth10-bit (1.07 billion colours)
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Screen Size86 inch
Touch Accuracy±1 mm
Touch Points50-point multi-touch
Touch Response Time≤ 5 ms
Viewing Angle178° (H) / 178° (V)
Performance
GraphicsArm Mali-G52 MP8
Operating SystemAndroid 14
ProcessorAmlogic A311D2
RAM8 GB
Storage64 GB
Audio
Audio InAudio in × 1
Audio OutAudio out × 1
DisplayPortDisplayPort × 1
MicrophoneMIC (Built-in, 8)
Speaker Output2 × 20 W + 20 W
Speaker TypeBuilt-in
Connectivity
BluetoothBluetooth 5.3
EthernetRJ45 (Gigabit) × 2
HDMI InputsHDMI In × 3
HDMI OutputsHDMI Out × 1
OPS SlotOptional
Serial PortRS-232 × 1
Touch USB PortsTouch USB × 3
USB PortsUSB 3.0 × 5, USB 2.0 × 1
USB-C PortsUSB-C × 2
VGA InputVGA × 1
Wi-FiWi-Fi 6E (802.11ax)
Power
Power Consumption235 W
Standby Power< 0.5 W
Physical
Dimensions1957 x 1170.8 x 99.7 mm
Operating Humidity10% to 90% RH
Operating Temperature0°C to 40°C
Shipping Dimensions2110 x 1291 x 225 mm
Surface ProtectionAnti-glare smooth glass
VESA Mount800 x 600 mm
Weight54.1 kg
Questions
Can’t find your answer? Ask on WhatsApp
What is the LG interactive flat panel used for?
The LG CreateBoard Standard 86 inch – Model 86TR3DQ is the premium choice for collaborative classrooms and professional meeting spaces. With an expansive 86-inch interactive display , this advanced digital whiteboard offers ultra-clear 4K UHD resolution and responsive multi-touch technology for.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
Does this interactive panel support multi-touch and on-screen writing?
Yes, it supports multi-touch so several users can interact together.
Can I run apps on it without connecting a PC?
Yes — it runs Android 14, so you can open apps, whiteboard, and browse without a separate computer.
Does it have a built-in camera for video calls?
