LGInteractive Flat PanelsSKU 75TR3BF

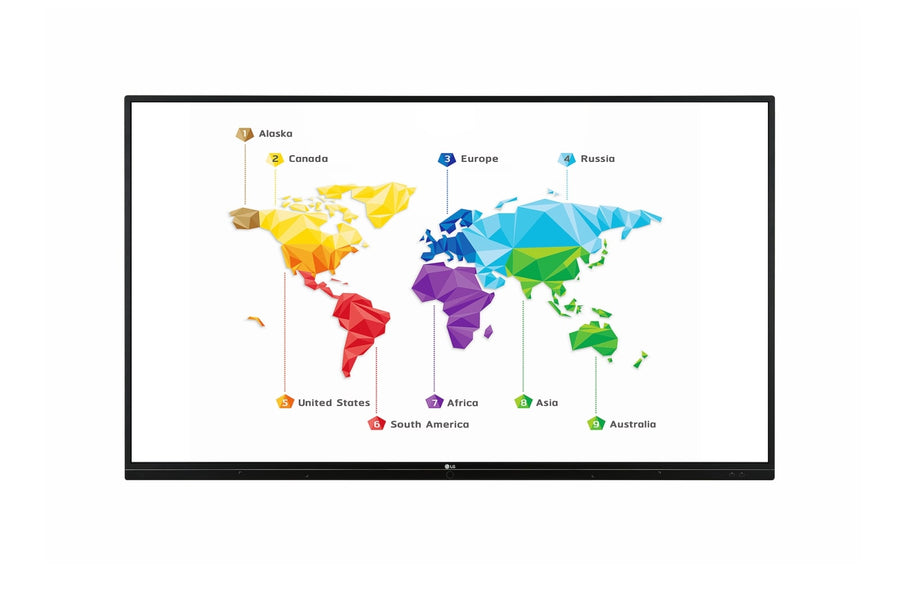

LG CreateBoard 75-inch Interactive Flat Panel – 75TR3BF
The LG 75TR3BF is a 75-inch 4K UHD CreateBoard interactive flat panel with infrared touch for 20 points, 10 writing points and built-in writing software. It suits classrooms and meeting rooms that need annotation on one screen. This model is discontinued; Procure.ae can confirm current availability of LG interactive panels in the UAE.
The 75TR3BF has a 3,840 x 2,160 (4K UHD) IPS panel with 330 nits typical brightness with protection glass, 1,100:1 contrast and 178º x 178º viewing angles. Its infrared touch provides 20 touch points and 10 writing points, with 1.5 mm accuracy over USB 2.0. Response time is 8 ms (G to G), and touch response is 60 ms on Android or 100 ms on Windows. The rated life is 30,000 hours minimum at 16 hours of operation a day, and the 24 W speakers are built in.
The panel is landscape only. Inputs are HDMI (3), RGB and audio, plus USB 2.0 (3) and USB 3.0 (3) ports, and two touch outputs connect a PC. RS232C in and RJ45 control inputs support room system integration, and the panel is OPS-type compatible for a plug-in computer module. Windows 7, 8 and 10, Android, Linux and macOS are supported. The body measures 1,709 x 1,020 x 86 mm and weighs 53 kg, with an 800 x 400 mm VESA interface, so confirm the wall or stand load before installation.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
330 nits (typical, with protection ...
Touch Technology
Infrared
- 4K UHD display
- Infrared touch
- Writing points
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD display
3,840 x 2,160 native resolution on a 75-inch 16:9 panel.
02
Infrared touch
IR touch with 20 touch points and 1.5 mm accuracy.
03
Writing points
Up to 10 writing points with the two writing pens supplied.
04
Embedded writing software
Writing software is built in for annotation on screen.
05
Built-in speakers
24 W total output from 12 W + 12 W built-in speakers.
06
Multiple inputs
HDMI (3), RGB, audio in, USB 3.0 (3) and USB 2.0 (3) ports.
07
OPS compatibility
OPS-type compatible for a plug-in computer module.
08
Multi-OS support
Windows 7/8/10, Android, Linux and macOS are listed as supported.
Specifications
33 specificationsGeneral
Key Features4K UHD, infrared touch with 20 points, 10-point writing, embedded writing software, 24 W speakers, OPS-type compatible, Windows and Android support, 16-hour operation
Model75TR3BF
TypeInteractive Flat Panel
What's in the BoxPower cord (3 m), USB cable Type A to Type B (5 m), HDMI cable (3 m), writing pens (2), user manual, quick start guide, carton box, remote control
Display
Aspect Ratio16:9
Bezel Size17.7 mm (top, left, right), 45.7 mm (bottom)
Brightness330 nits (typical, with protection glass)
Contrast Ratio1,100:1
OrientationLandscape
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size75 inch
Touch Accuracy1.5 mm
Touch Points20-point touch, 10-point writing
Touch Response Time60 ms (Android), 100 ms (Windows)
Touch TechnologyInfrared
Viewing Angle178º x 178º
Performance
Duty Cycle16 hours a day
Operating SystemWindows 7/8/10, Android, Linux, macOS (one-point touch on XP, Linux, Mac)
Audio
Speaker Output24 W (12 W + 12 W), built-in
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotOPS-type compatible
PortsHDMI In × 3, RGB In, Audio In, RS232C In, RJ45 In, HDMI Out × 1, Optical / Audio Out
USB PortsUSB 2.0 × 3, USB 3.0 × 3, Touch Out USB 2.0 Type-B × 2
Power
Power Consumption175 W typical, 294 W maximum
Physical
ColorBlack
Dimensions1709 x 1020 x 86 mm (W x H x D)
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount800 x 400 mm
Weight53 kg
Compliance
CertificationsCB / NRTL, FCC Class A, CE
Downloads
Manufacturer documents for the LG CreateBoard 75-inch Interactive Flat Panel – 75TR3BF — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the 75TR3BF support pen writing?
Yes. Two writing pens are supplied, and the infrared touch supports 20 touch points with up to 10 writing points. Touch accuracy is listed at 1.5 mm, which suits annotation and note-taking during lessons or meetings.
Which operating systems are supported?
Windows 7, 8 and 10, Android, Linux and macOS are listed as supported. One-point touch is listed for Windows XP, Linux and macOS, so confirm the platform before planning multi-touch use on those systems.
Can it be wall mounted?
Yes. The VESA mount interface is 800 x 400 mm. The body measures 1,709 x 1,020 x 86 mm and weighs 53 kg, so the bracket must be rated for that load and the mounting surface checked before installation.
What inputs and outputs does it have?
Inputs include HDMI (3), RGB and audio, plus USB 2.0 (3) and USB 3.0 (3) ports and two touch outputs. Outputs are HDMI (1) and optical or audio output, which allows audio to be routed to an external system.
Does it integrate with room control?
Yes. RS232C in and RJ45 control inputs are listed for external control, and the panel is OPS-type compatible for a plug-in computer module, so a room computer can be fitted if the space needs one.
