LGInteractive Flat PanelsSKU 65TR3ER

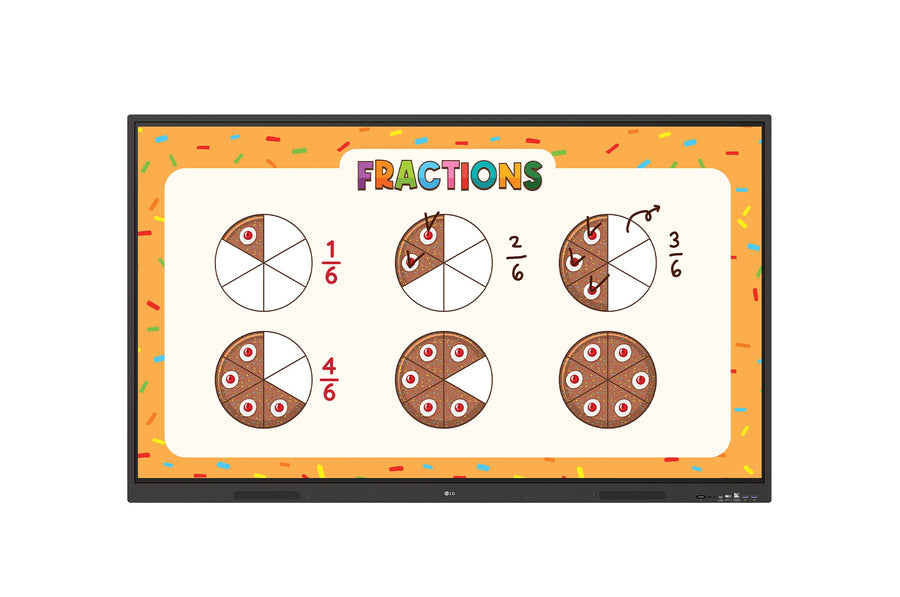

LG CreateBoard 65-inch Interactive Flat Panel – 65TR3ER
The LG 65TR3ER is a 65-inch 4K UHD CreateBoard interactive flat panel with a VA panel, 350 nits typical brightness and up to 50 touch points. It runs Android 16 with 8 GB RAM and 128 GB storage, and an OPS slot takes a plug-in computer. Procure.ae supplies the LG 65TR3ER in the UAE.
The 65TR3ER has a 3,840 x 2,160 (4K UHD) VA panel with 5,500:1 contrast, 5,000:1 dynamic contrast and an NTSC 72% colour gamut. Typical brightness is 350 nits, with a 60 Hz refresh rate and a 6.5 ms response time. The screen uses tempered safety glass with anti-reflective treatment, 25% haze and shatter-proof construction. Touch accepts objects 3 mm and larger, with ±2 mm accuracy and up to 50 touch points, and the Paint app response is 10 ms or less on Windows 10.
The board runs Android 16 on an octa-core processor with 8 GB RAM, 128 GB storage, Wi-Fi 6, gigabit LAN and Bluetooth 5.4. An OPS slot with built-in OPS power takes a plug-in computer, and a USB-C port provides DisplayPort Alt mode with 65 W Power Delivery. Control options include RS232C, RJ45 (LAN), HDMI-CEC and Wake on LAN, with Connected Care for remote management. Screen Share and PIP and PBP (2PBP) modes are listed. Windows 7, 8 and 10, Android, Linux, macOS and Chrome are supported.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
350 nits (typical)
Type
Interactive Flat Panel
- 4K UHD VA panel
- 50-point touch
- Android 16 platform
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD VA panel
3,840 x 2,160 resolution with a 5,500:1 contrast ratio.
02
50-point touch
Up to 50 touch points with ±2 mm accuracy and a 3 mm minimum object size.
03
Android 16 platform
Octa-core processor, 8 GB RAM and 128 GB internal storage.
04
OPS slot
Built-in OPS power for a plug-in computer module.
05
USB-C with power
USB-C with DisplayPort Alt mode and 65 W Power Delivery.
06
Wireless and wired networking
Wi-Fi 6 (802.11ax), Bluetooth 5.4 and gigabit LAN are built in.
07
Built-in speakers
Two 20 W speakers for presentation audio.
08
Screen sharing
Screen Share with PIP and PBP (2PBP) multi-window modes.
Specifications
37 specificationsGeneral
Key Features4K UHD VA panel, 50-point touch, Android 16, 8 GB RAM and 128 GB storage, OPS slot, 65 W USB-C Power Delivery, Wi-Fi 6 and Bluetooth 5.4, Screen Share
Model65TR3ER
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
Brightness350 nits (typical)
Color Depth1.07 billion colours
Color GamutNTSC 72%
Contrast Ratio5,500:1
OrientationLandscape
Panel TechnologyVA
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time6.5 ms
Screen Size65 inch
Touch Accuracy±2 mm
Touch Points50-point multi-touch
Touch Response Time10 ms or less (Paint app, Windows 10)
Viewing Angle178º x 178º
Performance
Duty Cycle16 hours a day, 7 days a week
GraphicsMali-G52 MC3
Operating SystemAndroid 16
ProcessorOcta-core (A72 × 4 + A53 × 4)
RAM8 GB
Storage128 GB
Audio
Speaker Output20 W × 2 (built-in)
Connectivity
BluetoothBluetooth 5.4
EthernetGigabit LAN
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotOPS slot with built-in OPS power
PortsHDMI In × 3, RS232C In, RJ45 (LAN) In, Audio In, Audio Out
USB PortsUSB 3.0 Type-A × 3, USB 2.0 Type-A × 1, USB-C × 1 (65 W PD, DP Alt), Touch USB 2.0 Type-B × 2
Wi-FiWi-Fi 6 (802.11 a/b/g/n/ac/ax)
Physical
ColorBlack
Operating Humidity10% to 90% RH
Operating Temperature0 to 40 °C
Surface ProtectionTempered safety glass, anti-reflective, 25% haze, shatter-proof
Compliance
CertificationsCB, CE, KC, ErP, Energy Star
Downloads
Manufacturer documents for the LG CreateBoard 65-inch Interactive Flat Panel – 65TR3ER — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the 65TR3ER run its own operating system?
Yes. It runs Android 16 on an octa-core processor with 8 GB RAM and 128 GB of storage. An OPS slot with built-in OPS power also accepts a plug-in computer module for additional computing.
Can it be used in portrait orientation?
No. The manufacturer lists landscape as supported and portrait as not supported, so plan the mounting and content layout for landscape use only. Confirm the orientation with Procure.ae before ordering if your room layout needs a vertical screen.
Does it support finger and pen touch on a PC?
Yes. Touch supports up to 50 points with ±2 mm accuracy, and touch objects down to 3 mm are recognised. Response in the Paint app on Windows 10 is 10 ms or less, and the touch interface is USB 2.0.
What mounting details should I plan for?
The manufacturer’s specifications do not state a VESA pattern or head weight for the 65TR3ER, so confirm both with Procure.ae before choosing a mount. The panel is landscape only, and a mount rated for the panel’s weight should be used.
Can it be managed remotely and connected to a room system?
Yes. RS232C in and RJ45 (LAN) control are listed, along with HDMI-CEC, Wake on LAN and Connected Care. Wi-Fi 6 and gigabit LAN support network connection, so the panel can sit on a managed network.
