LGDigital SignageSKU 98UH5F

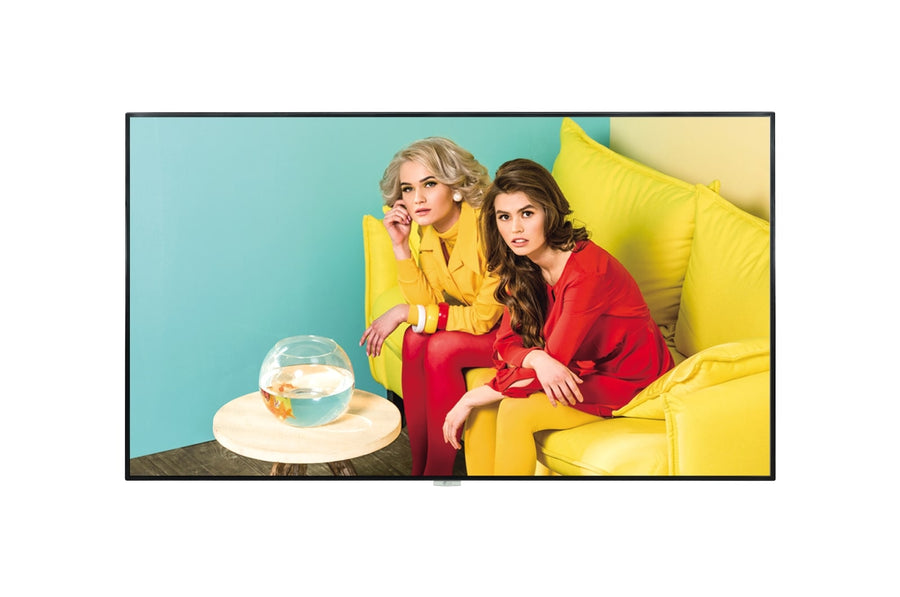

LG 98-inch UHD Digital Signage Display – 98UH5F
The LG 98UH5F is a 98-inch UHD digital signage display with an IPS panel, 500 nits typical brightness and a 120 Hz refresh rate, for lobbies, showrooms and public venues. It is rated for 24-hour operation and supports portrait or landscape use. The model is discontinued, and Procure.ae can confirm current availability in the UAE.
The 98UH5F (also listed as 98UH5F-B and 98UH5F-B.AMA) uses an IPS panel with 3840 x 2160 resolution, 500 nits typical brightness and a 120 Hz refresh rate. Contrast is listed at 1,300:1, with 178 x 178 viewing angles and an 8 ms response time. The manufacturer lists a typical life time of 50,000 hours and 24-hour operation. External control covers RS232C in and out, an RJ45 LAN input and an IR input.
The display is managed with SuperSign CMS, with SuperSign Control and Control+ software. Compared with the 98UH5E, the 98UH5F lists an IPS panel, a 1,300:1 contrast ratio, an 83.8 mm monitor depth and an 81.1 kg head weight, rather than 88 kg. Its built-in power supply runs on 100 to 240 V AC at 50/60 Hz, drawing 420 W typical and 560 W maximum. The 800 x 400 mm VESA interface and 2,354 x 1,386 x 420 mm carton with 119 kg packed weight set the installation requirements.
Screen Size
98 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
- IPS panel
- 500-nit brightness
- Wide viewing angle
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
IPS panel
3840 x 2160 IPS panel with a 120 Hz refresh rate.
02
500-nit brightness
500 nits typical brightness with 1,300:1 contrast.
03
Wide viewing angle
178 x 178 viewing angles and 8 ms response time.
04
24-hour operation
Rated for 24-hour operation with a 50,000-hour typical life time.
05
Portrait and landscape
Supports portrait and landscape orientation.
06
RS232C and RJ45 control
RS232C in and out, RJ45 LAN input and IR input.
07
SuperSign CMS
SuperSign CMS with SuperSign Control and Control+ software.
08
Even 14.9 mm bezel
Even bezel width with an off-bezel design.
Specifications
28 specificationsGeneral
Key Features98-inch UHD IPS, 500 nits, 120 Hz, 1,300:1 contrast, RS232C, RJ45 LAN and IR control, SuperSign CMS
Model98UH5F
TypeDigital Signage Display
What's in the BoxRemote controller, power cord, quick start guide, IR/light sensor receiver, DP cable (1.8 m), regulation book, phone to RS232C gender, eye-bolt
Display
Bezel Size14.9 mm (even)
Brightness500 nits
Contrast Ratio1,300:1
OrientationPortrait / Landscape
Panel TechnologyIPS
Refresh Rate120 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size98 inch
Viewing Angle178° x 178°
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotNot compatible
PortsRS232C In/Out (4-pin phone jack), RJ45 LAN In, IR In
Power
Power Consumption420 W typical, 560 W maximum
Power SourceBuilt-in power supply
Physical
Dimensions2191.8 x 1246.8 x 83.8 mm
Duty Cycle24 hours
Operating Humidity10% to 80%
Operating Temperature0 to 40 °C
Shipping Dimensions2354 x 1386 x 420 mm
Shipping Weight119 kg
VESA Mount800 x 400 mm
Weight81.1 kg
Compliance
CertificationsCB / NRTL, FCC Class A, CE, KC
Questions
Can’t find your answer? Ask on WhatsApp
Is the LG 98UH5F suitable for 24-hour operation?
Yes. The manufacturer lists 24-hour operation for the 98UH5F, with a typical life time of 50,000 hours. Smart Energy Saving mode reduces the power draw to 294 W, which helps manage power use over long hours.
Can the LG 98UH5F be wall-mounted?
Yes. It uses an 800 x 400 mm VESA mount interface. The head weight is 81.1 kg, so use a bracket and wall structure rated for that load and have it installed by a qualified installer.
Does it support portrait orientation?
Yes. The manufacturer lists portrait and landscape orientation for the 98UH5F. Portrait suits vertical menus and wayfinding, while landscape suits wide lobby walls and presentation use. Confirm the orientation the content needs before ordering.
How is the LG 98UH5F controlled from a central system?
It has RS232C in and out through a 4-pin phone jack, an RJ45 LAN input and an IR input. The box includes a phone-to-RS232C gender adapter, and the LAN input suits network control.
What is the difference between the 98UH5F and the 98UH5E?
The 98UH5F lists an IPS panel, 1,300:1 contrast, an 81.1 kg head weight and an 83.8 mm monitor depth. The 98UH5E lists 88 kg and a 69.4 mm depth, and its specifications do not state a panel type or contrast ratio.
