LGDigital SignageSKU 86BH5F-M

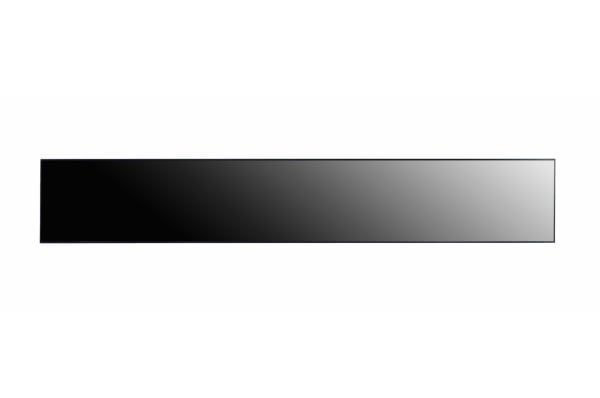

LG 86BH5F-M 500 cd/m² 86-Inch Ultra Stretch Display for Eye-Catching Signage
The LG 86BH5F-M 500 cd/m² 86-Inch Ultra Stretch Display for Eye-Catching Signage is a digital signage available in the UAE from Procure.ae.
Experience stunning visuals with the LG 86BH5F-M Ultra Stretch Display . This 86-inch display delivers crystal-clear images with a brightness of 500 cd/m², making it perfect for eye-catching signage in retail spaces, airports, or corporate environments. The Ultra Stretch aspect ratio of 58:9 provides a unique canvas for showcasing content in a captivating way, ensuring your message stands out.
It is supplied to corporate, education, and government organisations across the UAE, with procurement-ready quotations and regional delivery.
Screen Size
86 inch
Resolution
3840 x 600
Brightness
500 nits
Weight
20.5 kg
- Sleek Design
- High Brightness
- Ultra Stretch Display
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Sleek Design
Slim and modern design that complements any space.
02
High Brightness
500 cd/m² brightness for vivid images even in well-lit environments.
03
Ultra Stretch Display
86-inch display with a 58:9 aspect ratio for impactful content.
04
Wide Viewing Angle
Ensures clear visibility from various perspectives.
05
Easy Configuration
User-friendly interface for convenient setup and customization.
06
Remote Management
Control and monitor the display remotely for seamless operation.
07
Energy Efficient
Eco-friendly design with energy-saving features.
08
Multiple Connectivity Options
Versatile connectivity for different media sources.
Specifications
37 specificationsGeneral
Key FeaturesBuilt-in Wi-Fi/BT, Local Contents Scheduling, Crestron Connected, PBP (4), Smart Energy Saving, Fail Over, Wake on LAN, Temperature Sensor
What's in the BoxRemote Controller (2 batteries), Power Cord, DP cable, RS-232C Cable, IR/Light sensor receiver, Manual
Display
Aspect Ratio58:9
BacklightDirect LED
Bezel Size5.9 mm (T/B), 4.4 mm (L/R)
Brightness500 nits
Color Depth1.07 billion colours
Color GamutNTSC 72%
Contrast Ratio1,100:1
OrientationLandscape & Portrait
Panel TechnologyIPS
Refresh Rate60 Hz
Resolution3840 x 600
Response Time8 ms
Screen Size86 inch
Viewing Angle178° (H) / 178° (V)
Performance
Operating SystemwebOS 4.0
Storage8 GB
Connectivity

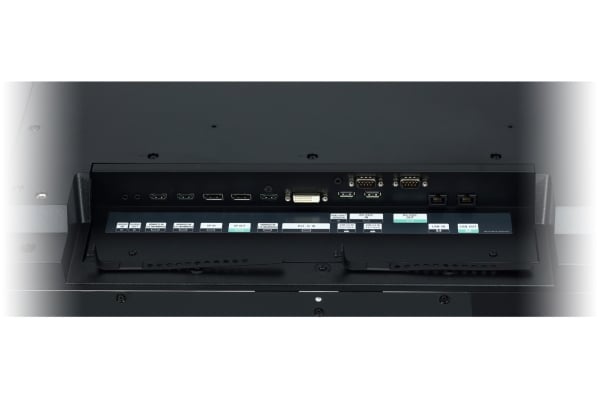

ConnectivityHDMI, DisplayPort, USB, RS-232, RJ45, Audio Out, IR In/Out
EthernetRJ45 × 1
HDMI InputsHDMI In × 3
Input Voltage100–240 V AC, 50/60 Hz
USB PortsUSB-A 2.0 × 2
Power
Power Consumption250 W (typical), 350 W (max)
Standby Power0.5 W
Physical
Dimensions2158.3 x 348.5 x 81.7 mm
Duty Cycle24/7
MountingWall mount, floor stand optional
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
Shipping Dimensions2290 x 599 x 228 mm
Shipping Weight38.2 kg
VESA Mount600 x 200 mm
Weight20.5 kg
Compliance
Country of OriginSouth Korea
IP RatingIP5X
Warranty1 year
Downloads
Manufacturer documents for the LG 86BH5F-M 500 cd/m² 86-Inch Ultra Stretch Display for Eye-Catching Signage — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the LG digital signage used for?
Experience stunning visuals with the LG 86BH5F-M Ultra Stretch Display . This 86-inch display delivers crystal-clear images with a brightness of 500 cd/m², making it perfect for eye-catching signage in retail spaces, airports, or corporate environments. The Ultra Stretch aspect ratio of 58:9.
Does it include installation and warranty?
Procure.ae can arrange installation and provides manufacturer-backed warranty support. Contact us for the full warranty details applicable to this model.
What is this display used for?
It's a commercial digital signage display — ideal for menus, advertising, wayfinding, and information screens in retail, offices, and public spaces.
Can it run continuously for long hours?
Yes — commercial signage panels like this are built for extended daily operation; ask us for the exact operating-hours rating on this model.
How is the on-screen content managed?
Request a quote via WhatsApp wa.me/97145465041 or email info@procure.ae.
