LGDigital SignageSKU 75UH5Q-GQ

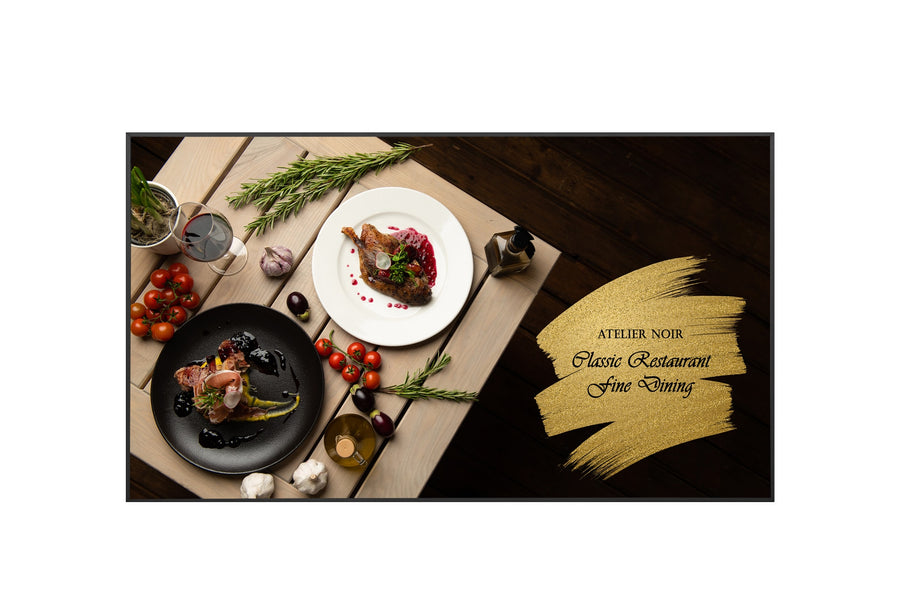

LG 75-inch UHD Digital Signage Display – 75UH5Q-GQ
The LG 75UH5Q-GQ is a 75-inch 4K UHD digital signage display with an ADS panel, 500 nits typical brightness and webOS 8.0. It suits retail, corporate and hospitality screens that are scheduled and monitored centrally with SuperSign software. Procure.ae supplies the LG 75UH5Q-GQ in the UAE with quotes, delivery and installation.
The LG 75UH5Q-GQ shows 3840 x 2160 (4K UHD) resolution on a 75-inch 16:9 ADS panel. Typical brightness is 500 nits, the typical contrast ratio is 1,200:1 and the dynamic contrast rating is 1,000,000:1. The colour gamut is BT.709 95% with DCI-P3 80% coverage, and response time is 8 ms (grey to grey). The display runs webOS 8.0 with 16 GB of internal eMMC storage and two 10 W speakers, and it is rated for 24/7 operation with a 0.5 W power-off draw.
The 75UH5Q-GQ suits lobbies, retail floors and meeting areas where content is scheduled and monitored remotely. The manufacturer lists SuperSign CMS, SuperSign Control+, SuperSign WB, SuperSign Cloud, Mobile CMS and Connected Care. Inputs are three HDMI, one DisplayPort and two USB 2.0 ports, with RS232C in and out, an RJ45 LAN input and an IR input. The display uses a 600 x 400 mm VESA interface and supports tile mode for up to 15 x 15 displays.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
- webOS 8.0 platform
- 4K UHD ADS panel
- Contrast and colour
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
webOS 8.0 platform
Runs webOS 8.0 on the 75-inch display.
02
4K UHD ADS panel
3840 x 2160 resolution with 500 nits typical brightness.
03
Contrast and colour
1,200:1 typical contrast ratio and BT.709 95% colour gamut with DCI-P3 80% coverage.
04
Built-in speakers
Two built-in 10 W speakers.
05
Content management
SuperSign CMS, SuperSign Control+, SuperSign WB, SuperSign Cloud and Mobile CMS are listed.
06
Multi-screen layouts
PIP, 4-way PBP and tile mode for up to 15 x 15 displays.
07
Remote and sensor control
RS232C in and out, RJ45 LAN, IR input, auto brightness sensor and Wake on LAN.
08
Energy and certification
Energy Star and ePEAT (US only) listings, with 0.5 W power-off consumption.
Specifications
33 specificationsGeneral
CompatibilitySuperSign CMS, SuperSign Control+, SuperSign WB, SuperSign Cloud, Mobile CMS, Connected Care
Key FeatureswebOS 8.0, 4K UHD ADS panel, 500 nits, DCI-P3 80% colour, SuperSign CMS compatible, 10 W x 2 speakers, PIP and 4-way PBP, Wake on LAN
Model75UH5Q-GQ
TypeDigital Signage Display
What's in the BoxRemote controller (2 batteries), power cord, quick setup guide, regulation book, phone to RS232C gender adapter, cable holder (6)
Display
Aspect Ratio16:9
Bezel Size12.9 mm (even)
Brightness500 nits
Color Depth1.07 billion colours (8-bit + FRC)
Color GamutBT.709 95% (DCI-P3 80%)
Contrast Ratio1,200:1
OrientationPortrait and landscape
Panel TechnologyADS
Refresh Rate60 Hz
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size75 inch
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemwebOS 8.0
Storage16 GB (eMMC)
Audio
Speaker Output10 W × 2
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In × 3, DP In × 1, RS232C In/Out, RJ45 (LAN) In, IR In, USB 2.0 × 2, Audio Out
Power
Standby Power0.5 W
Physical
ColorBlack
Dimensions1679.5 x 958.7 x 29.7 mm (without IR and handle)
Duty Cycle24/7
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight35.7 kg
Compliance
CertificationsCB / NRTL, FCC Class B, CE, KC, ePEAT (US only), Energy Star
IP RatingIP5X
Downloads
Manufacturer documents for the LG 75-inch UHD Digital Signage Display – 75UH5Q-GQ — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What are the main specifications of the LG 75UH5Q-GQ?
It is a 75-inch 4K UHD (3840 x 2160) signage display with an ADS panel, 500 nits typical brightness, a 1,200:1 typical contrast ratio and an 8 ms response time. It runs webOS 8.0 and supports portrait and landscape orientation.
Does the LG 75UH5Q-GQ support portrait orientation?
Yes. The manufacturer lists portrait and landscape orientation, and screen rotation and external input rotation are also listed. Confirm the mounting orientation with the installer before ordering. The portrait and landscape listing applies to the 75UH5Q-GQ specifically.
How is the LG 75UH5Q-GQ managed?
It supports SuperSign CMS, SuperSign Control+, SuperSign WB, SuperSign Cloud and Mobile CMS. Control is available over RS232C, RJ45 LAN and IR, with SNMP, status mailing and Wake on LAN also listed.
Which VESA mount does the LG 75UH5Q-GQ need?
The LG 75UH5Q-GQ uses a 600 x 400 mm VESA standard mount interface. The head weighs 35.7 kg and the monitor measures 1679.5 x 958.7 x 29.7 mm without IR and handle, so the mount should be rated for that weight and size.
Is the LG 75UH5Q-GQ rated for 24/7 operation?
Yes. The manufacturer lists operation hours as 24/7, with an operating temperature of 0 to 40 °C and humidity of 10% to 80%. Power draw in power-off mode is listed at 0.5 W.
