LGDigital SignageSKU 75UH5J-M

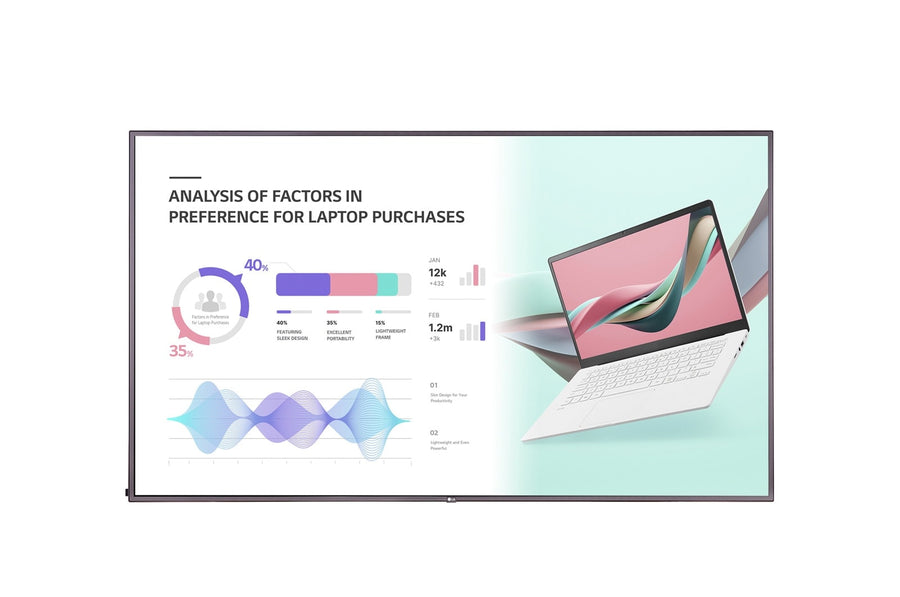

LG 75-inch UHD Digital Signage Display – 75UH5J-M
The LG 75UH5J-M is a discontinued 75-inch 4K UHD digital signage display with an IPS panel, 120 Hz refresh rate and two built-in 10 W speakers. It suits large-format retail, corporate and hospitality screens managed with SuperSign software. Procure.ae supplies LG signage displays across the UAE and can confirm current availability of this model.
The LG 75UH5J-M shows 3840 x 2160 (UHD) resolution on a 75-inch 16:9 IPS panel, also listed as 75UH5J-M.AMA. Typical brightness is 500 nits, the typical contrast ratio is 1,100:1 and the dynamic contrast rating is 1,000,000:1. The colour gamut is BT.709 95% with 1.07 billion colours, and response time is 6 ms (grey to grey). The display runs webOS 6.0 with built-in Wi-Fi and Bluetooth, 16 GB of internal eMMC storage, and it is listed for 24/7 operation.
The 75UH5J-M suits lobbies, retail floors and meeting areas where screens are scheduled and monitored remotely. The manufacturer lists SuperSign CMS, SuperSign Control+, SuperSign WB, SuperSign Cloud and Mobile CMS, with Cisco and Crestron connected listings. It has three HDMI inputs, a DisplayPort input, a DVI-D input and an HDMI output for daisy chaining, plus RS232C, LAN and IR control. Its mount interface is 600 x 400 mm, and it is OPS type compatible in piggyback form.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
500 nits
Type
Digital Signage Display
- 120 Hz refresh rate
- 4K UHD IPS panel
- Fast response
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
120 Hz refresh rate
120 Hz refresh rate on the 75-inch IPS panel.
02
4K UHD IPS panel
3840 x 2160 resolution with 500 nits typical brightness.
03
Fast response
6 ms response time (grey to grey).
04
Built-in speakers
Two built-in 10 W speakers.
05
Daisy-chain video
HDMI and DisplayPort inputs with an HDMI output for daisy-chained displays.
06
Content management
SuperSign CMS, SuperSign Control+, SuperSign WB, SuperSign Cloud and Mobile CMS are listed.
07
Network integration
Cisco and Crestron connected listings, Wake on LAN and SI server settings.
08
Security support
Security updates are listed for 5 years from the product launch date on the LG security bulletin page.
Specifications
35 specificationsGeneral
CompatibilitySuperSign CMS, SuperSign Control+, SuperSign WB, SuperSign Cloud, Mobile CMS
Key Features4K UHD IPS panel, 120 Hz, 6 ms response, built-in 10 W x 2 speakers, webOS 6.0, daisy chain, SuperSign CMS compatible, Cisco and Crestron connected
Model75UH5J-M
TypeDigital Signage Display
What's in the BoxRemote controller (2 batteries), power cord, quick setup guide, regulation book, phone to RS232C gender adapter
Display
Aspect Ratio16:9
Bezel Size14.9 mm (even)
Brightness500 nits
Color Depth1.07 billion colours
Color GamutBT.709 95%
Contrast Ratio1,100:1
OrientationPortrait and landscape
Panel TechnologyIPS
Refresh Rate120 Hz
Resolution3840 x 2160 (4K UHD)
Response Time6 ms
Screen Size75 inch
Viewing Angle178° horizontal / 178° vertical
Performance
Operating SystemwebOS 6.0
Storage16 GB (eMMC)
Audio
Speaker Output10 W × 2
Connectivity
BluetoothBuilt-in
Input Voltage100–240 V AC, 50/60 Hz
OPS SlotOPS type compatible (piggyback)
PortsHDMI In × 3, DP In × 1, DVI-D In × 1, HDMI Out × 1, RS232C In/Out, RJ45 (LAN) In, IR In, USB 2.0 × 1, Audio In/Out
Wi-FiBuilt-in
Power
Standby Power0.5 W
Physical
ColorBlack
Dimensions1682.4 x 960.3 x 57.9 mm (without handle and logo)
Duty Cycle24/7
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount600 x 400 mm
Weight41.5 kg
Compliance
CertificationsCB / NRTL, FCC Class A, CE, KC, ErP (NewErP)
Downloads
Manufacturer documents for the LG 75-inch UHD Digital Signage Display – 75UH5J-M — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What are the main specifications of the LG 75UH5J-M?
It is a 75-inch 4K UHD (3840 x 2160) signage display with an IPS panel, 120 Hz refresh rate, 500 nits typical brightness and 6 ms response time. It runs webOS 6.0, has built-in 10 W speakers and supports portrait and landscape orientation.
Does the LG 75UH5J-M have built-in speakers?
Yes. The manufacturer lists two built-in speakers rated at 10 W each, so the display can play audio without an external speaker. Audio input and audio output are also listed.
Can the LG 75UH5J-M be used with an OPS media player?
Yes. The manufacturer lists it as OPS type compatible in piggyback form, while OPS power is listed as built-in: No. Confirm the OPS module and power arrangement with the installer before ordering.
How is the LG 75UH5J-M managed?
It supports SuperSign CMS, SuperSign Control+, SuperSign WB, SuperSign Cloud and Mobile CMS, plus RS232C, RJ45 LAN and IR control. Wake on LAN, SNMP and status mailing are also listed, so the display can be monitored from a central system.
Which VESA mount does the LG 75UH5J-M need?
The LG 75UH5J-M uses a 600 x 400 mm VESA standard mount interface. The head weighs 41.5 kg and the monitor measures 1682.4 x 960.3 x 57.9 mm without handle and logo, so the mount should be rated for that weight and size.
