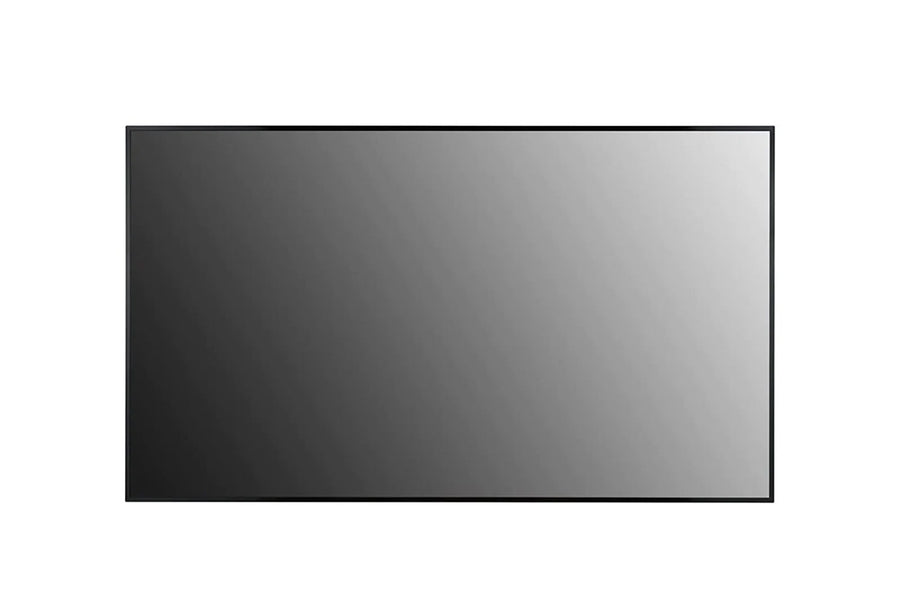

LG 75-inch 4K UHD High Brightness Open Frame Signage Display – 75XF3ES
The LG 75XF3ES (75XF3ES-B.AMA) is a 75-inch 4K UHD high brightness open frame signage display with a typical brightness of 3,000 cd/m² and an even 11.8 mm bezel. It is designed for window-facing and bright indoor signage. Procure.ae, an authorised LG reseller in Dubai, supplies the 75XF3ES across the UAE.
The 75XF3ES has a 75-inch panel (74.52 inches measured diagonally) with a resolution of 3,840 x 2,160 (UHD) and a typical brightness of 3,000 cd/m². It is an open frame design with an even 11.8 mm bezel and a built-in power supply that accepts 100–240 V AC at 50/60 Hz. It measures 1,675.2 x 953.6 x 128.9 mm and weighs 37.5 kg (head).
The manufacturer's specifications list operation from 0°C to 50°C at 10% to 80% humidity, and external control by RS-232C in and out, RJ45 in and IR. LG SuperSign CMS handles content management and SuperSign Control+ / Control handles monitoring. The owner's manual includes enclosure installation guidance, portrait layout and connecting multiple monitors. The box contains a remote control, power cord, HDMI cable and IR extension kit.
Screen Size
75 inch (74.52 inch measured diagonal)
Resolution
3840 x 2160 (4K UHD)
Brightness
3000 nits (typical)
Type
High Brightness Open Frame Signage ...
- 4K UHD Panel
- High Brightness
- Open Frame Design
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD Panel
3,840 x 2,160 resolution on a 75-inch screen.
02
High Brightness
3,000 cd/m² typical for window-facing and bright spaces.
03
Open Frame Design
an even 11.8 mm bezel, 128.9 mm deep, for enclosure or custom installation.
04
Built-In Power
integrated power supply for 100–240 V AC, 50/60 Hz.
05
External Control
RS-232C in and out, RJ45 in and IR.
06
Operating Range
0°C to 50°C and 10% to 80% humidity.
07
Software
SuperSign CMS for content and SuperSign Control+ / Control for monitoring.
08
Certifications
EMC listed as FCC Class A, CE and KC; safety to IEC / EN / UL 60950-1.
Specifications
23 specificationsGeneral
CompatibilitySuperSign CMS (content management), SuperSign Control+ / Control (monitoring)
ControlsRS-232C In/Out, RJ45 In, IR
Key Features75-inch 4K UHD, 3000 nits typical brightness, open frame, 11.8 mm even bezel, RS-232C and RJ45 control, built-in power, SuperSign CMS
Model75XF3ES
TypeHigh Brightness Open Frame Signage Display
What's in the BoxRemote control, power cord, HDMI cable, IR extension kit, manual
Display
Bezel Size11.8 mm (even)
Brightness3000 nits (typical)
Resolution3840 x 2160 (4K UHD)
Screen Size75 inch (74.52 inch measured diagonal)
Connectivity
EthernetRJ45 In
Input Voltage100–240 V AC, 50/60 Hz
Serial PortRS-232C In / Out
Power
Power SourceBuilt-in power supply
Physical
Dimensions1675.2 x 953.6 x 128.9 mm
Form FactorOpen frame
Operating Humidity10% to 80% RH
Operating Temperature0 to 50 °C
Shipping Dimensions1816 x 1106 x 285 mm
Shipping Weight47.0 kg
Weight37.5 kg (head)
Compliance
CertificationsFCC Class A, CE, KC (EMC)
Safety RatingIEC 60950-1 / EN 60950-1 / UL 60950-1
Downloads
Manufacturer documents for the LG 75-inch 4K UHD High Brightness Open Frame Signage Display – 75XF3ES — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
How bright is the LG 75XF3ES?
The LG 75XF3ES has a typical brightness of 3,000 cd/m² on a 75-inch panel with 3,840 x 2,160 (UHD) resolution. This high brightness is aimed at window-facing and brightly lit locations. The manufacturer's specifications list operation from 0°C to 50°C.
What does open frame mean for the 75XF3ES?
Open frame means the display is supplied for installation in an enclosure or custom housing. The owner's manual includes an enclosure installation guide with safety and precaution notes. The 75XF3ES has an even 11.8 mm bezel and measures 1,675.2 x 953.6 x 128.9 mm.
How is the 75XF3ES controlled and managed?
External control is through RS-232C in and out, RJ45 in and IR. The manufacturer lists SuperSign CMS for content management and SuperSign Control+ / Control for control and monitoring. The owner's manual also covers connecting multiple monitors.
What power does the 75XF3ES need, and how heavy is it?
The 75XF3ES has a built-in power supply for 100–240 V AC at 50/60 Hz. The head weighs 37.5 kg and the packed weight is 47.0 kg, in a carton of 1,816 x 1,106 x 285 mm. Plan handling and mounting for that load.
Can the 75XF3ES be used in portrait orientation?
Yes. The owner's manual includes a portrait layout section. Because the unit is open frame and 37.5 kg, installation and enclosure design should be planned in advance. Procure.ae can arrange installation across the UAE.
